HE693ADC409

Product Overview

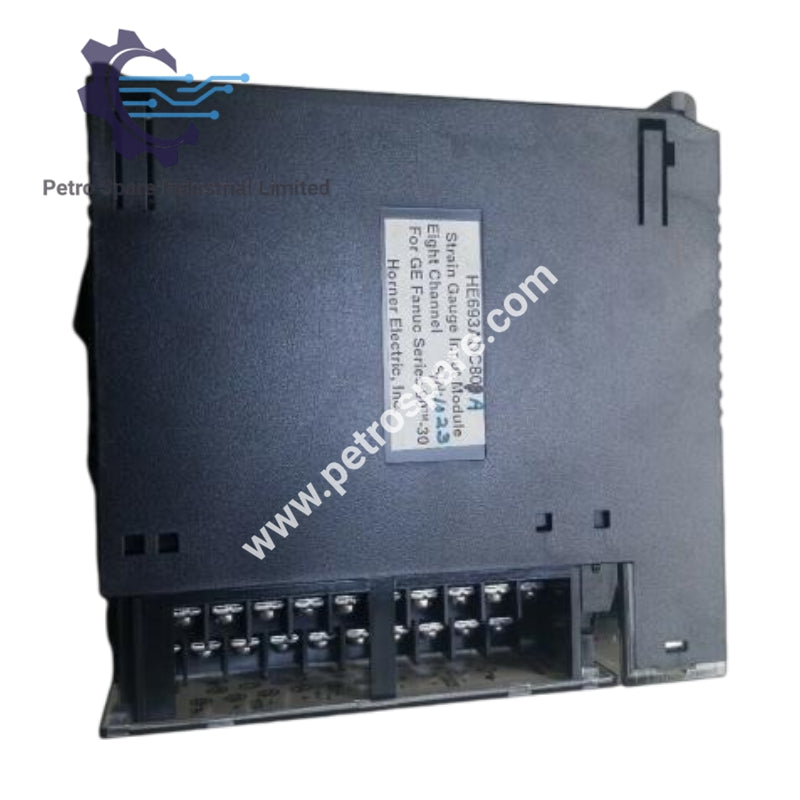

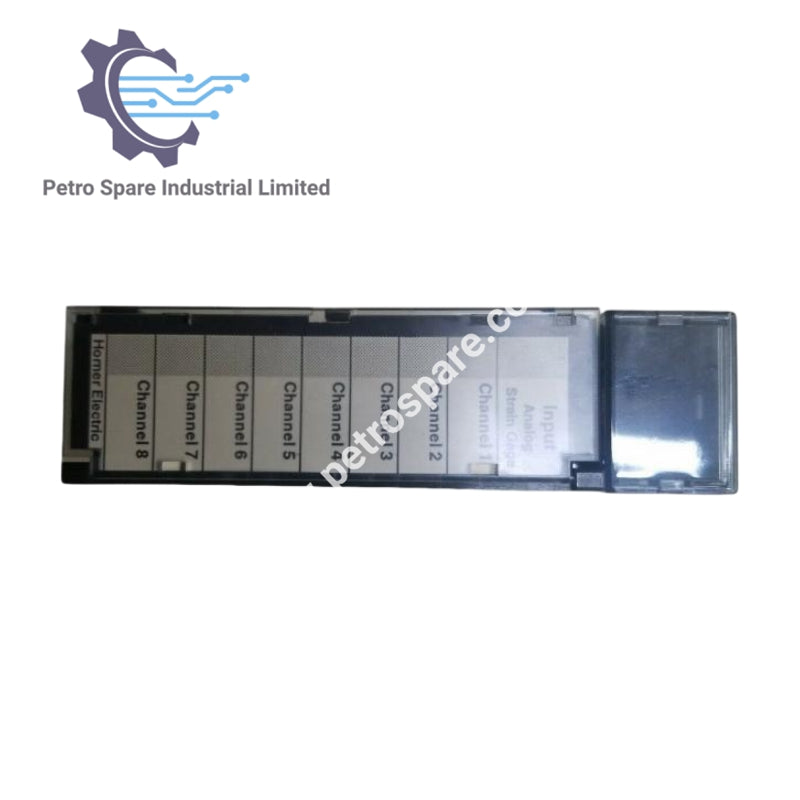

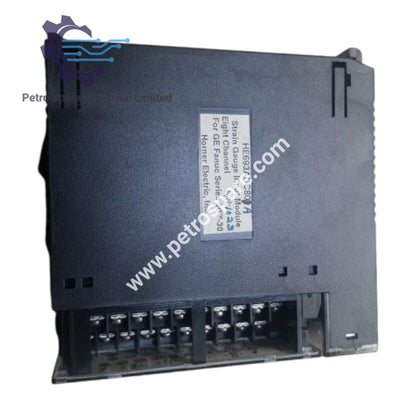

HE693ADC409 is an input module developed by Horner Electric, designed to manage a range of input signals effectively.

Technical Specifications

• Manufacturer: Horner Electric
• Product Type: Input Module
• Product Line: PLC I/O
• Weight: 0.63 lbs (0.28 kg)
• Power Consumption: 100 mA at 5 VDC
• Input Range (VDC): +/- 250 mV, +/- 500 mV, +/- 1000 mV
• Resolution: 30µV, 60µV, 90µV
• Number of Channels: 4
• Input Impedance: >20 MΩ
• Maximum Safe Overload: +/- 35 VDC
• Common Mode Range: +/- 12 VDC
• A/D Conversion Type: Integrating
• Module Update Rate: 35 Channels per Second
• Operating Temperature Range: 0-60 °C
• Relative Humidity Range: 5-95% non-condensing
