DS200TCQFG1A

Product Overview

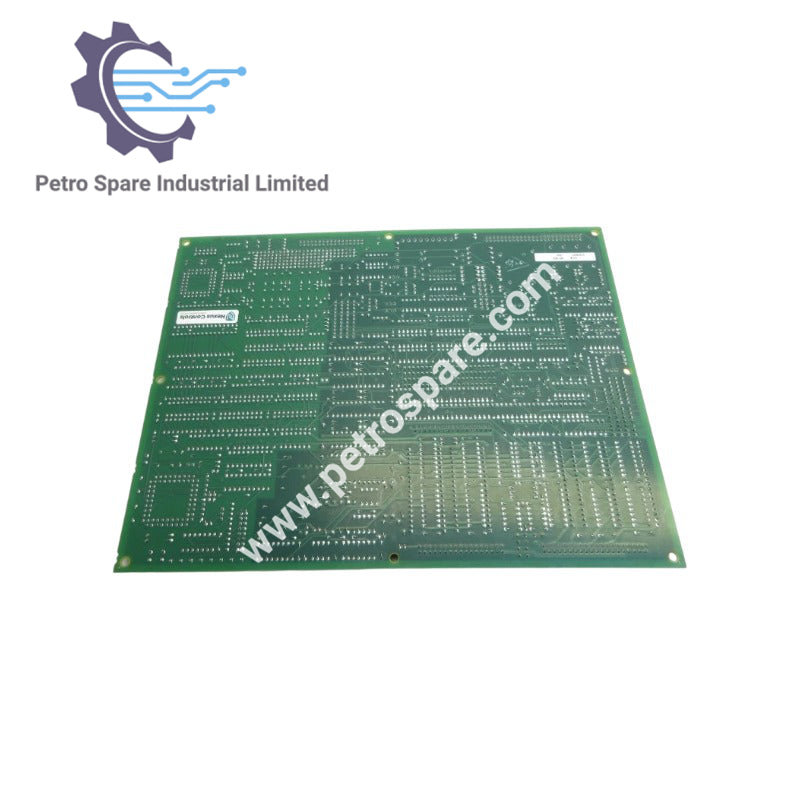

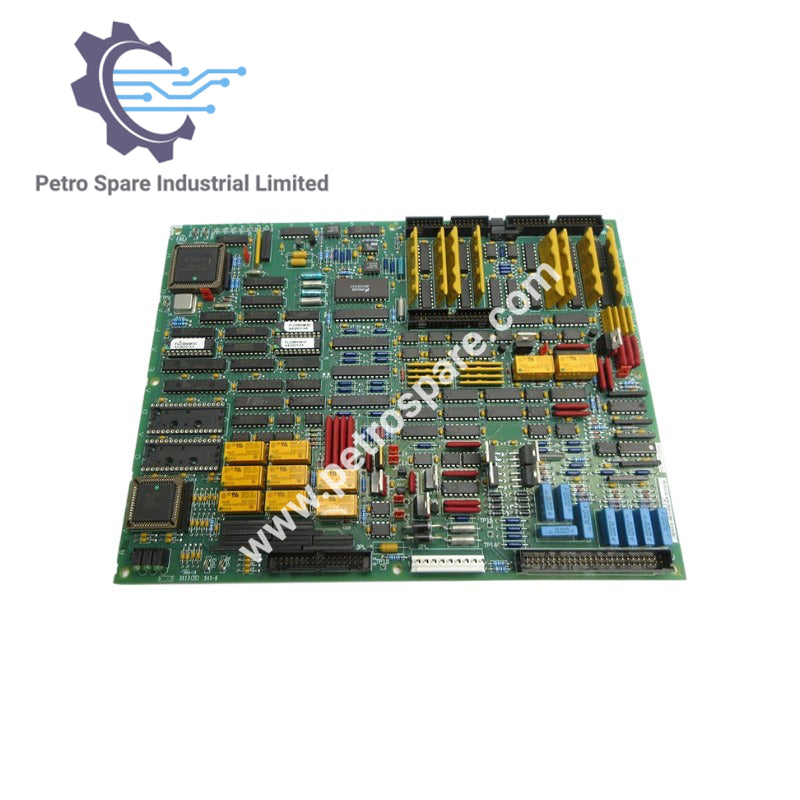

The DS200TCQFG1A is a GE Mark V Analog I/O Exciter Board populated with 7 jumpers, 2 50‑pin connectors (JUU, JB), 1 34‑pin connector (JA), and 1 9‑pin connector.

Connectors & Jumpers

• 50‑Pin Connectors: 2 (JUU, JB)
• 34‑Pin Connector: 1 (JA)
• 9‑Pin Connector: 1
• Jumpers: 7

Relays

• Electronic relays soldered to the board with wire leads for circuit switching

LED Indicators

• LEDs: 6 (arranged horizontally, green when lit)
• Status Indication: Solid green = normal operation; Flashing = normal processing in progress

---
