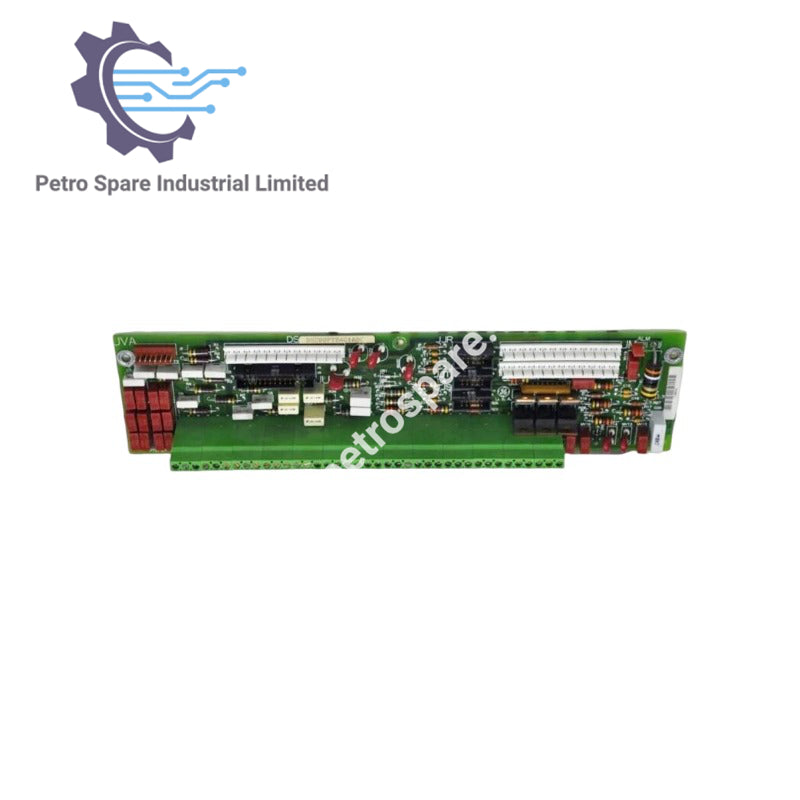

DS200PTBAG1AEC

Product Overview

The DS200PTBAG1AEC is a Protection Termination Module featuring 2 terminal blocks with terminals for 72 signal wires each, 3 10‑pin connectors (JJR, JJT, JJS), and terminal posts for 6 signal wires.

Physical Specifications

• Height: 3 inches
• Width: 11.5 inches
• Mounting: 1 hole in each corner for attachment to the board rack

Connectors

• Terminal Blocks: 2 (72 signal wires each)
• 10‑Pin Connectors: 3 (JJR, JJT, JJS)
• Terminal Posts: 6 signal wires

---
