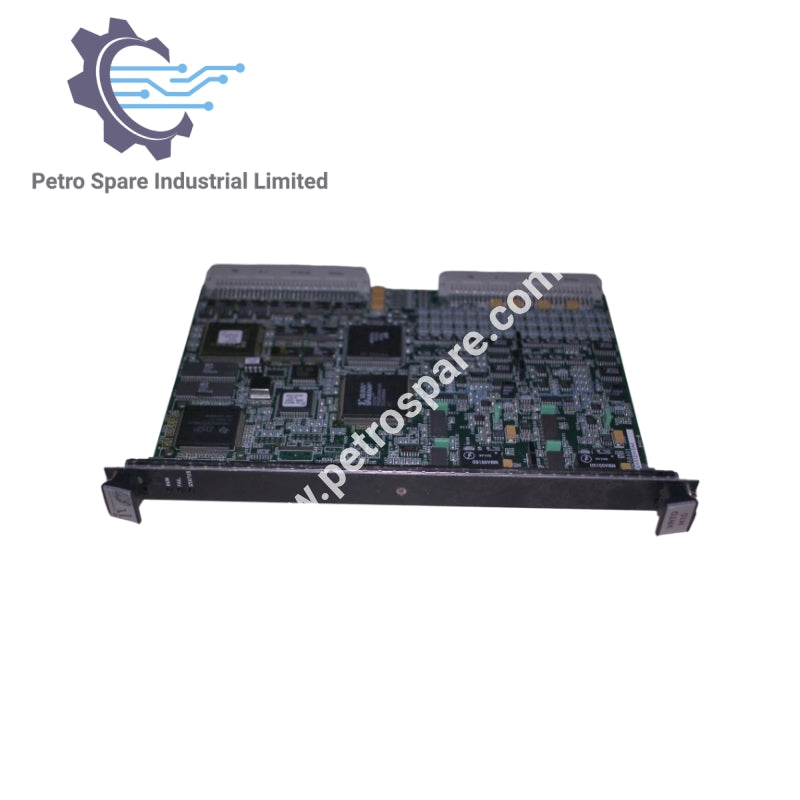

IS200VRTDH1DAA

Overview

• Model: IS200VRTDH1DAA

• Series: Mark VI

• Type: Resistance Temperature Device (RTD) Input Board

• Application: Converts RTD inputs into digital temperature values for turbine control systems

General Specifications

• Number of Channels: 16 three‑wire RTD inputs per board

• A/D Converter Resolution: 14‑bit

• Function: Excites RTDs, receives return signals, converts to digital values, and transmits via VME backplane to controller

Connectivity & Integration

• Terminal Boards Supported: TRTD or DRTD

• Connection Method: Cables with molded fittings to VME rack

• Processor Board: VRTD processor board housed in VME rack

• Data Transmission: Digital temperature values sent from VCMI to controller through VME backplane

---
