IC754VSI06STD

Product Overview

• Model: IC754VSI06STD

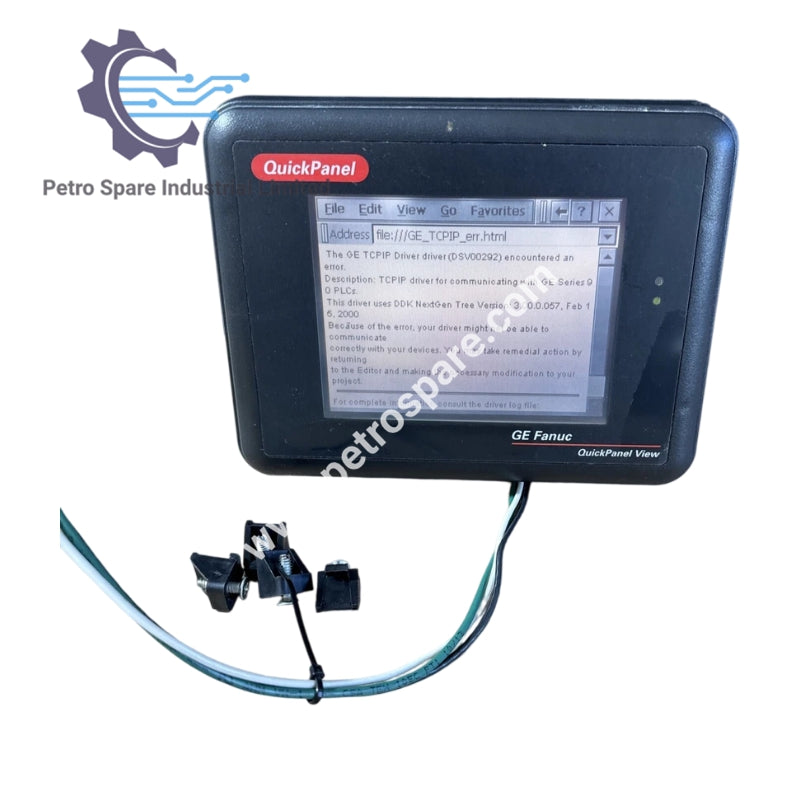

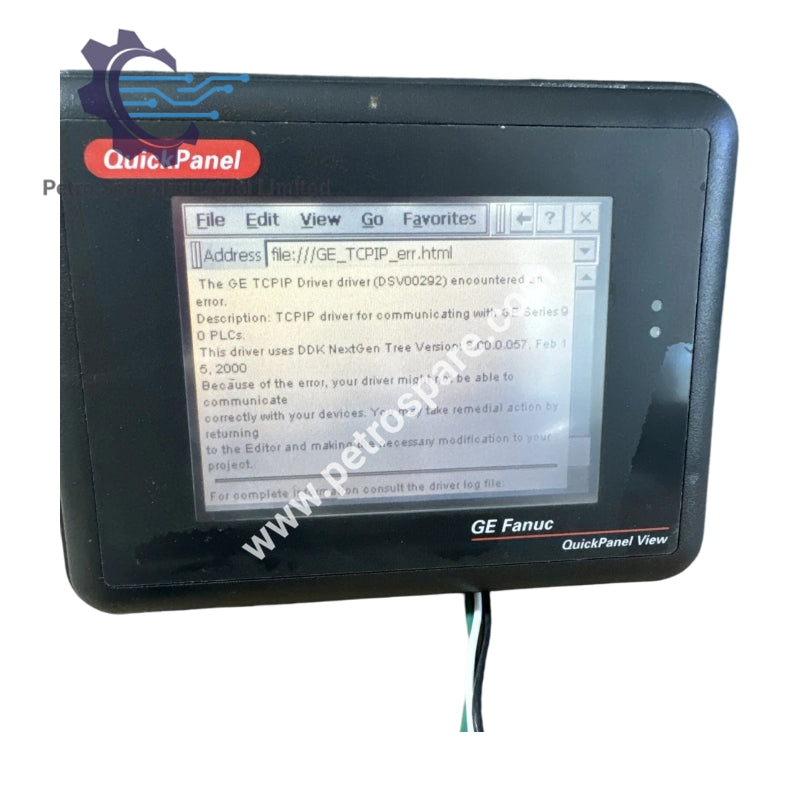

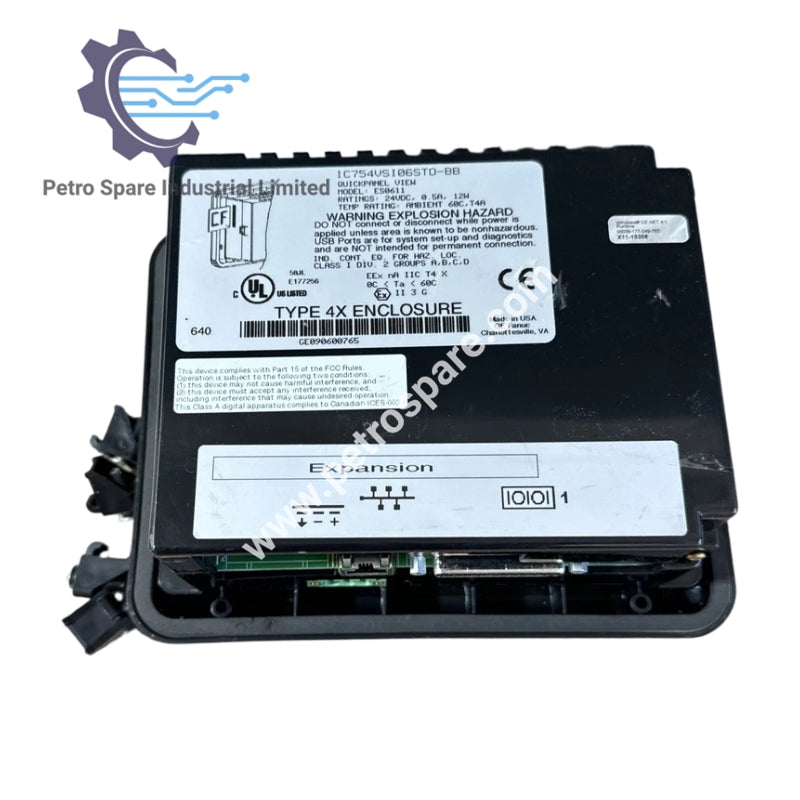

• The GE Fanuc IC754VSI06STD is a Human Machine Interface (HMI) device from the QuickPanel View product family.

Technical Specifications

• Display Size: 6"

• Display Type: Passive STN transmissive (color)

• Display Resolution: 320 x 240 pixels

• Display Color: Color

• Operator Input: Resistive, 12 bit touchscreen

• Processor: Intel XScale PXA255, 300 MHz

• Integral Memory: FLASH 32 MB, SRAM 512 KB, DRAM 32 MB, ROM 512 KB (Boot loader)

• Interfaces: Ethernet, Serial EIA232C/EIA485, DP25S combo port

• Operating System (OS): Windows CE

• Power Supply / Input Power: 12 - 30 VDC

• Real Power: 24 W

• Connector: Phoenix Contact 1777992

• Communication: RS232 and RS485

• Communication Cable: HMI-CAB-C67

• Weight: 2.06 lbs (0.94 kg)

---
