MLJ1005B010H00C

Overview

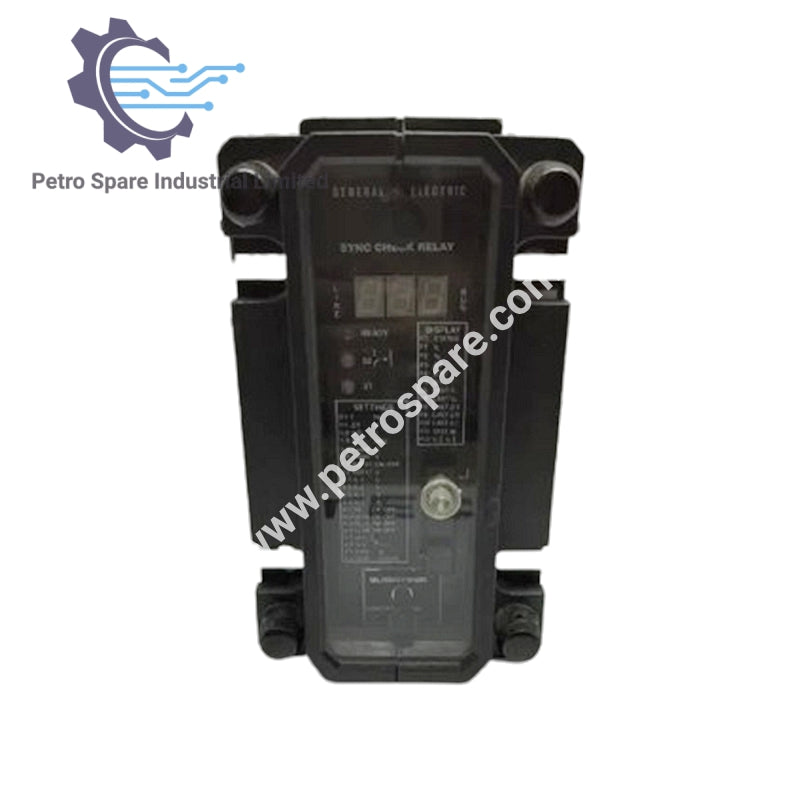

The GE MLJ1005B010H00C is a synchronism check relay designed to monitor voltage, frequency, and phase angle conditions before allowing circuit breaker closure in power systems.

Frequency

• Range: 50 or 60 Hz

• Programmable: User selectable

Rated Voltage

• Input Range: 63–220 Vac

Auxiliary Power

• 24–48 Vdc ±20%

• 48–125 Vdc ±20%

• 110–250 Vdc ±20%

Maximum Voltage Allowable

• Continuous: 440 Vac

Temperature Ranges

• Operating: −25 ºC to +55 ºC

• Storage: −40 ºC to +65 ºC

---
