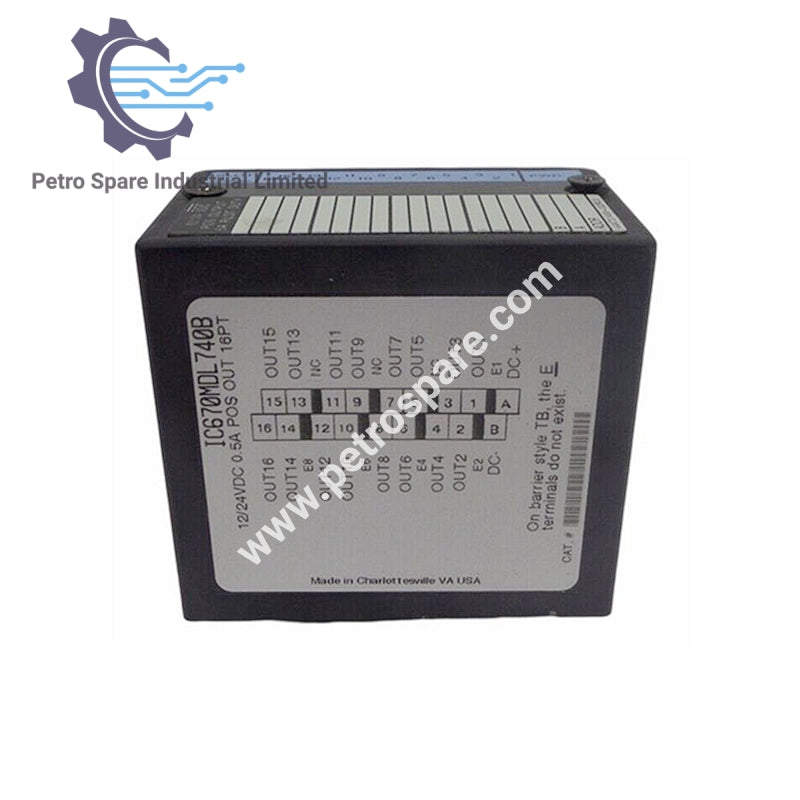

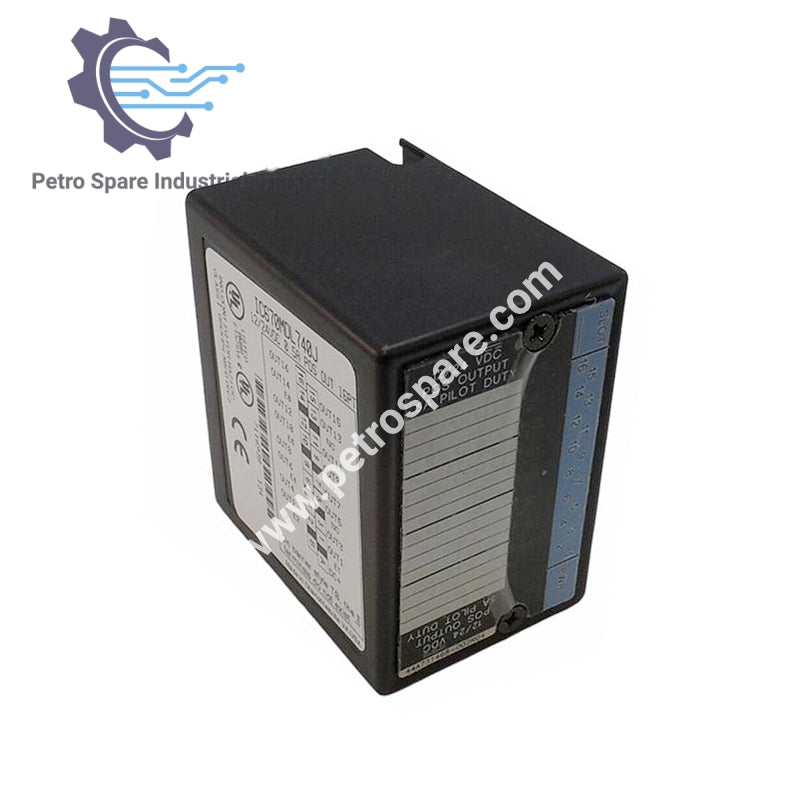

IC670MDL740

Overview

• Model: IC670MDL740

• Type: Discrete Output Module

• Series: GE Fanuc Field Control

Electrical Specification

• User Input Voltage: 10–30 VDC (24 VDC nominal)

• Output Signal (Nominal): 12/24 VDC

• Output Voltage Range: 9.2–29.5 VDC

• Number of Outputs: 16 points

• Output Current: 0.5 A per point, 4 A per module

• Maximum Load Current: 0.5 A (10–30 VDC range)

• Current Drawn from BIU Power Supply: 111 mA max

• Isolation:

  • User input to logic: 1500 VAC for 1 min, 250 VAC continuous

  • User input to frame ground: 1500 VAC for 1 min, 250 VAC continuous

  • Group-to-group isolation: None

Functional Specification

• Number of Groups: Single group

• Output Grouping: Single group configuration

• Output Response Time: 200 ms at 0.5 A resistive load

---
