HE693ADC415

Product Overview

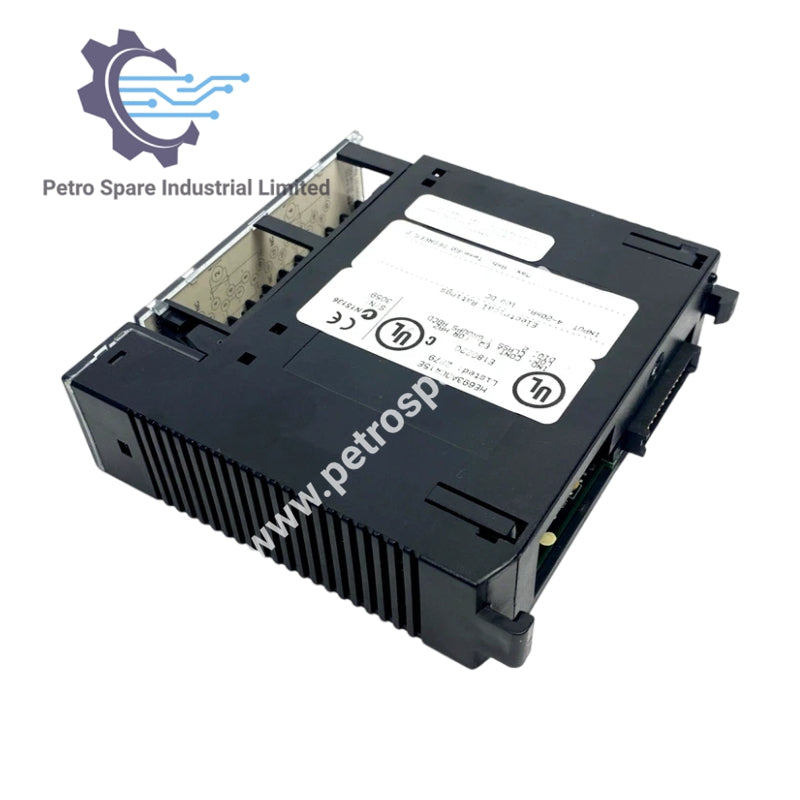

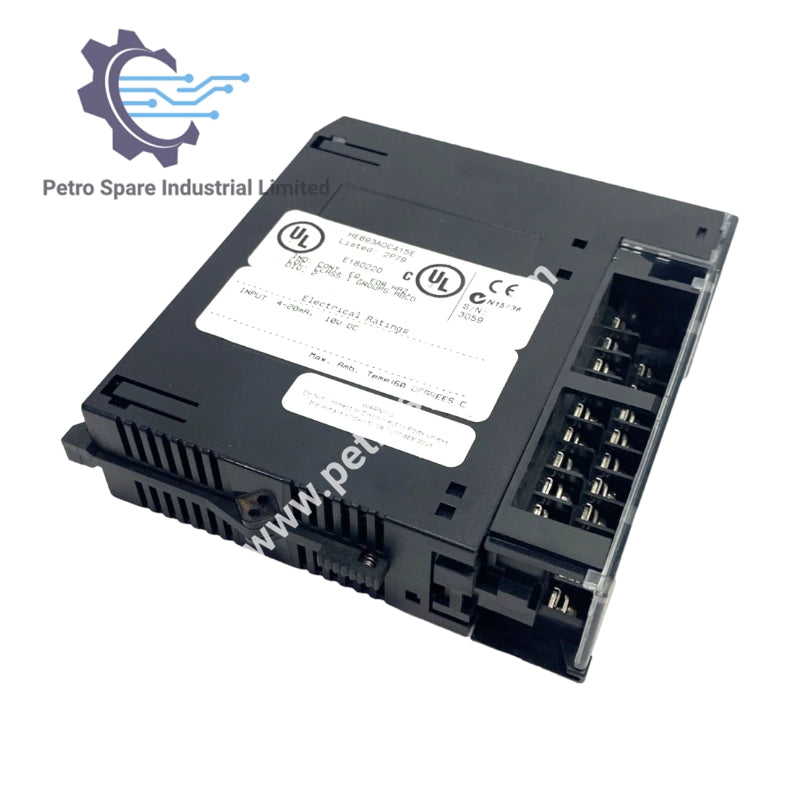

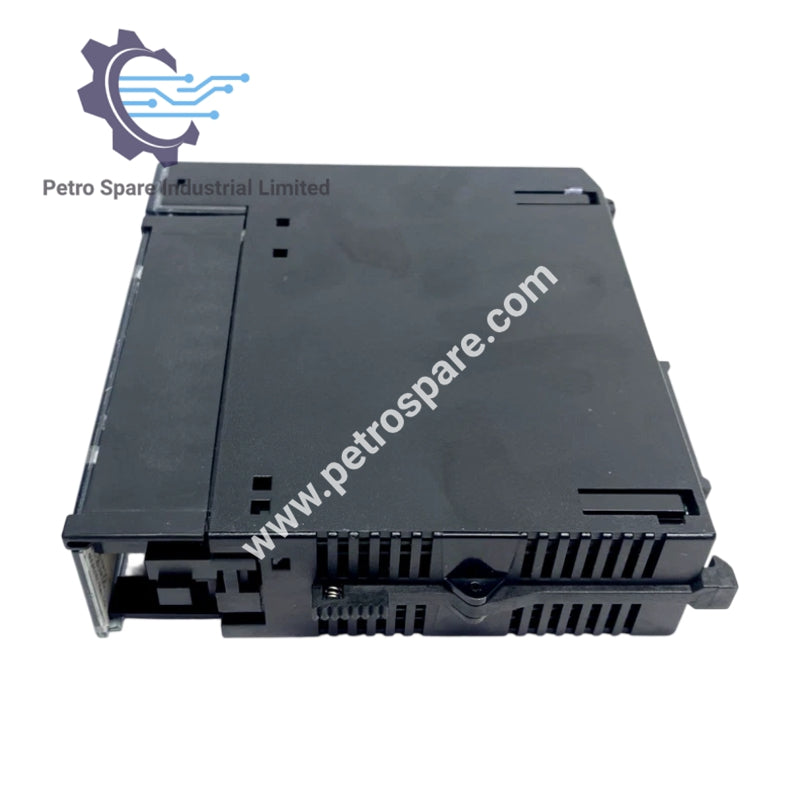

The HE693ADC415 from Horner Electric is an analog input module.

Technical Specifications

• Manufacturer: Horner Electric
• Product Type: Analog Input Module
• Product Line: PLC I/O
• Weight: 0.75 lbs (0.34 kg)
• Input Range: 4 to 20 mA, +/- 20 mA
• Number of Channels: 4
• Power Consumption (Steady State): 0.4W/80 mA at 5V and 2.16W/90 mA at 24V
• Surge Current at Power-Up: 120 mA at 5V and 150 mA at 24V
• I/O Required: 4 %AI, 4 %AQ, 16%I
• A/D Type: Integrating
• Resolution: 18 Bits
• Usable Resolution: 13 Bits Plus Sign
• Input Impedance: 100 Ohms
• Module Update Rate: 45 Channels per Second
• Channel-to-Channel Isolation: 500 Volts AC (RMS), +/-700 Volts DC
• Common Mode Range: 500 Volts AC (RMS), +/- 700 Volts DC
• Common Mode Rejection: >100 dB
• Analog Filtering: 1 kHz, 3 pole Bessel
