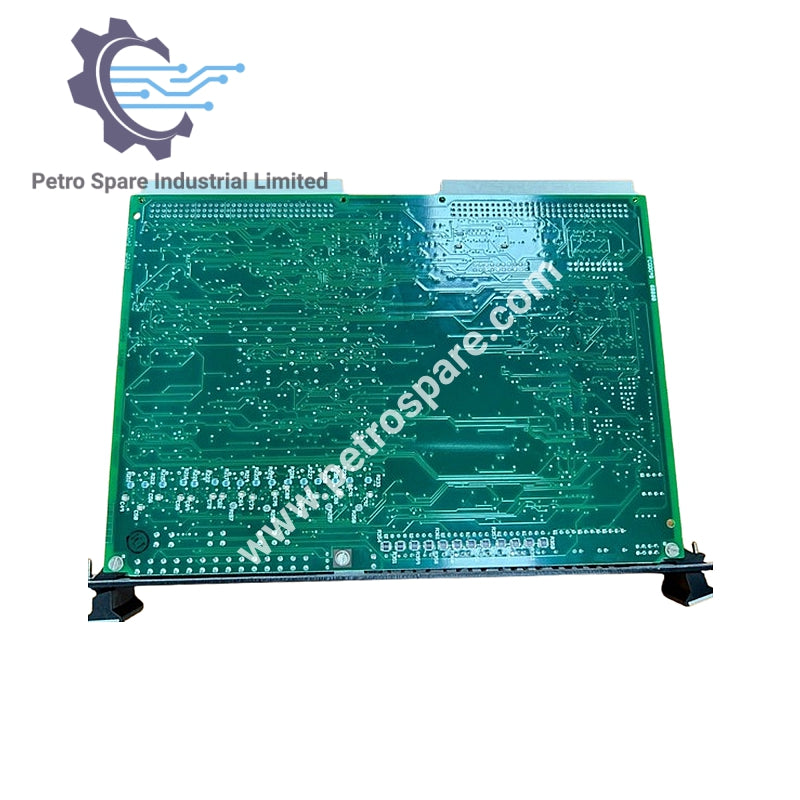

DS200FCGDH1ABA

Overview

• Model: DS200FCGDH1ABA

• Type: Gate Distribution and Status Card

• Application: Interface for 6‑pulse phase‑controlled non‑reversing bridge

Signal Distribution and Decoding

• Function: Decodes and distributes cell gating signals

• SCR Control: Precise synchronization

Feedback and Diagnostic Information

• Inputs: Multiplexed cell status signals

• Feedback: Voltage, frequency, current

Communication with DSPC Board

• Interface: VME backplane

• Direction: Bidirectional with DS200DSPC

Signal Scaling and Transmission

• Conversion: Voltage, frequency, current signals

• Compatibility: Scaled for DSPC input

---
