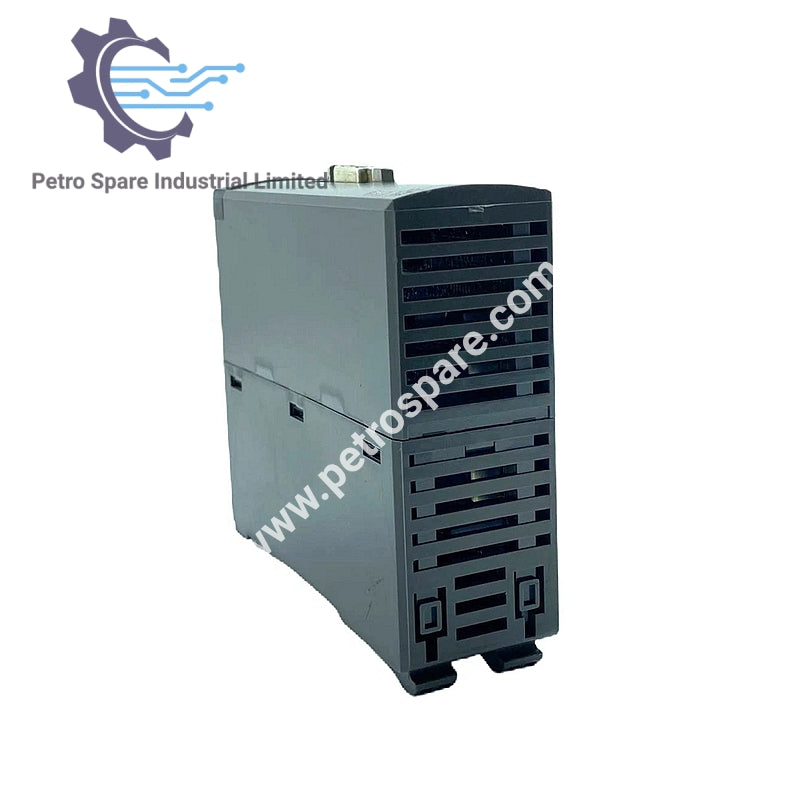

NP1L-JS1

Overview

The Fuji Electric NP1L-JS1 is a PROFIBUS-DP Slave Module designed for integration with Fuji Electric programmable controllers. It enables I/O transmission within PROFIBUS networks and supports OPCN‑1 master function connectivity.

Bus Configuration

• SX Bus Modules: Max. 8 per configuration (Class A)

• Connection Method: Detachable dedicated connector (M3.5)

• Connectable Type: Programmable controller with OPCN‑1 master function

Communication

• Function: I/O transmission only (no message transmission)

• Link I/O Points: Input 0–64 words, Output 0–64 words

• Total I/O Words: 128 (input + output)

Electrical Isolation

• Method: Photocouple

• Dielectric Strength: 445 V AC, 1 minute (between connector pins and frame ground)

• Insulation Resistance: ≥ 10 Ω with 500 V DC megger (between connector pins and frame ground)

Installation

• Occupied Slot: 1 slot

• Internal Current Consumption: 24 V DC, 130 mA or less

Physical Characteristics

• Mass (Module): Approx. 200 g

---
