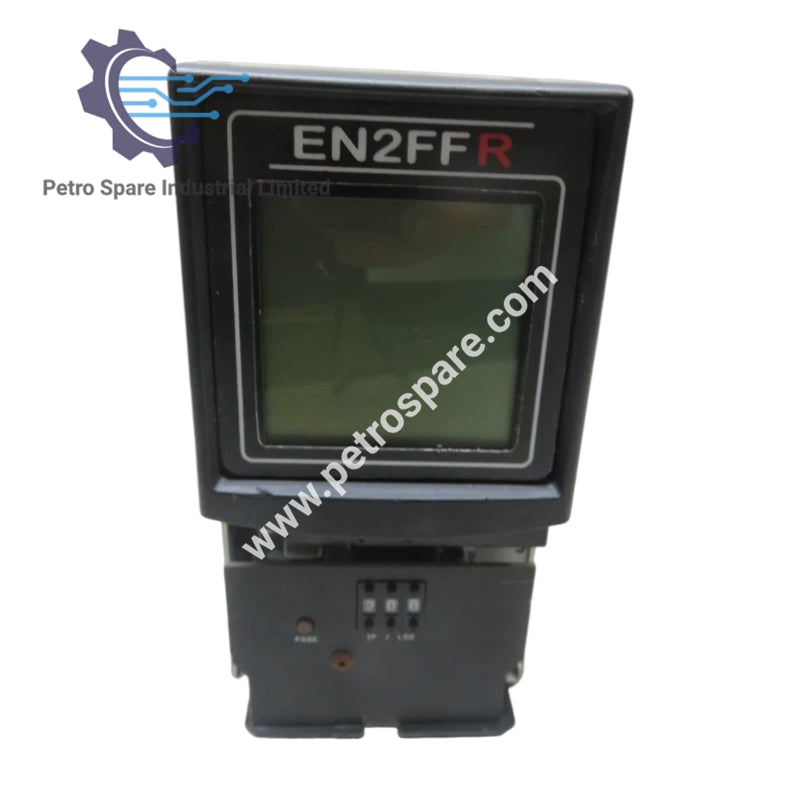

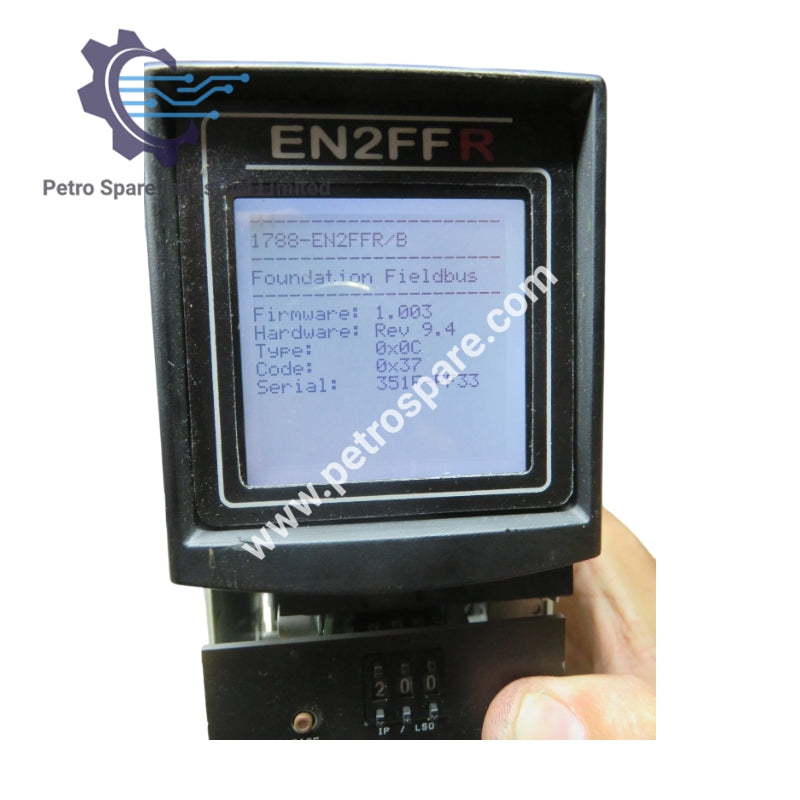

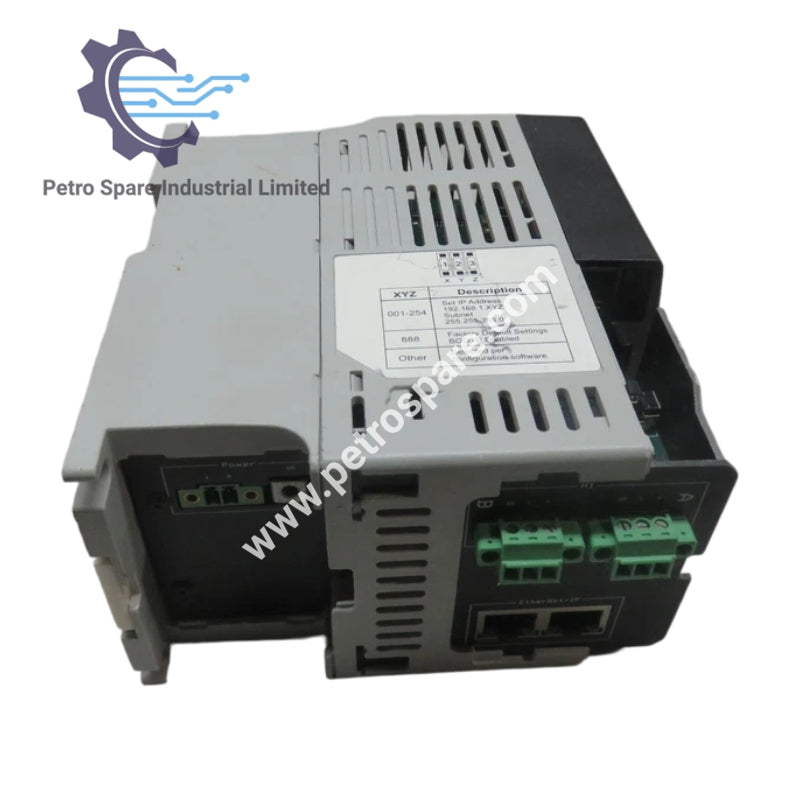

1788-EN2FFR

Product Overview

The 1788-EN2FFR is designed as a linking device that connects EtherNet/IP to FOUNDATION Fieldbus systems.

Technical Specifications

• EtherNet: CAT5 STP/UTP

• Shock, Operating: 30 g

• Terminal Torque:

• DC Power Connections: 0.22–0.25 N•m (2–2.2 lb•in)

• FOUNDATION Fieldbus Connections: 0.21–0.25 N•m (1.9–2.2 lb•in)

• FOUNDATION Fieldbus H1 Ports: 2 isolated channels

• FOUNDATION Fieldbus Data Rate: 31.25 kbps

• FOUNDATION Fieldbus Power Supply Output: 9–32 V DC

• EFT/B Immunity (IEC 61000-4-4): ±4 kV at 5 kHz on power ports; ±3 kV at 5 kHz on communication ports

• Surge Transient Immunity (IEC 61000-4-5): ±2 kV line-earth (CM) on communication ports

• Conducted RF Immunity: 10 V rms with 1 kHz sine wave 80% AM from 150 kHz–80 MHz

• Power Dissipation: 12.24 W at 24V DC

• ESD Immunity (IEC 61000-4-2): 6 kV contact discharge; 8 kV air discharge

• Power Consumption: 260 mA at 24V (with no field devices attached)

• Weight: 1.25 lbs (0.57 kg)
