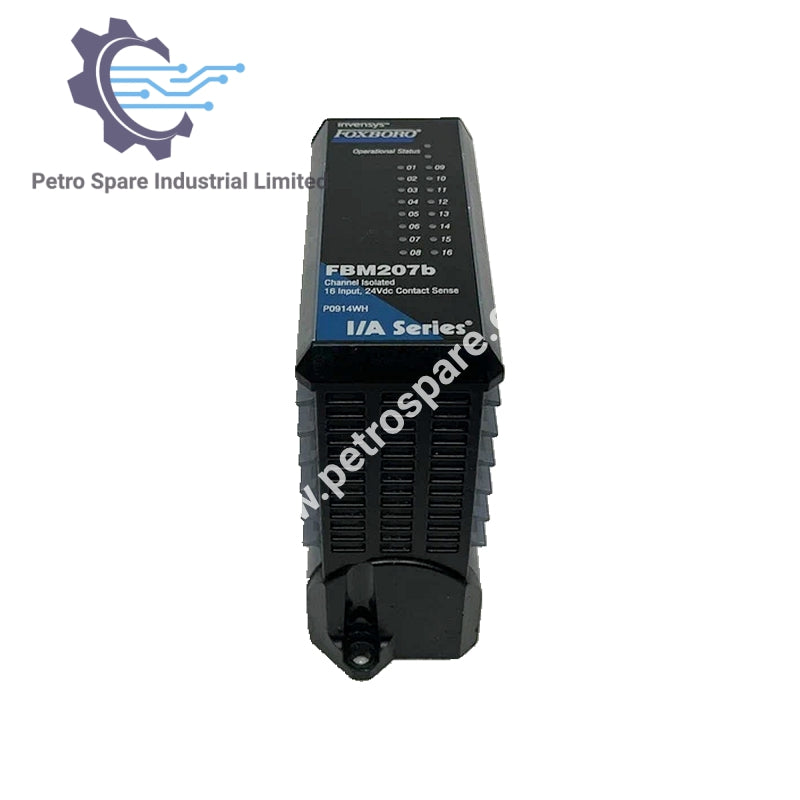

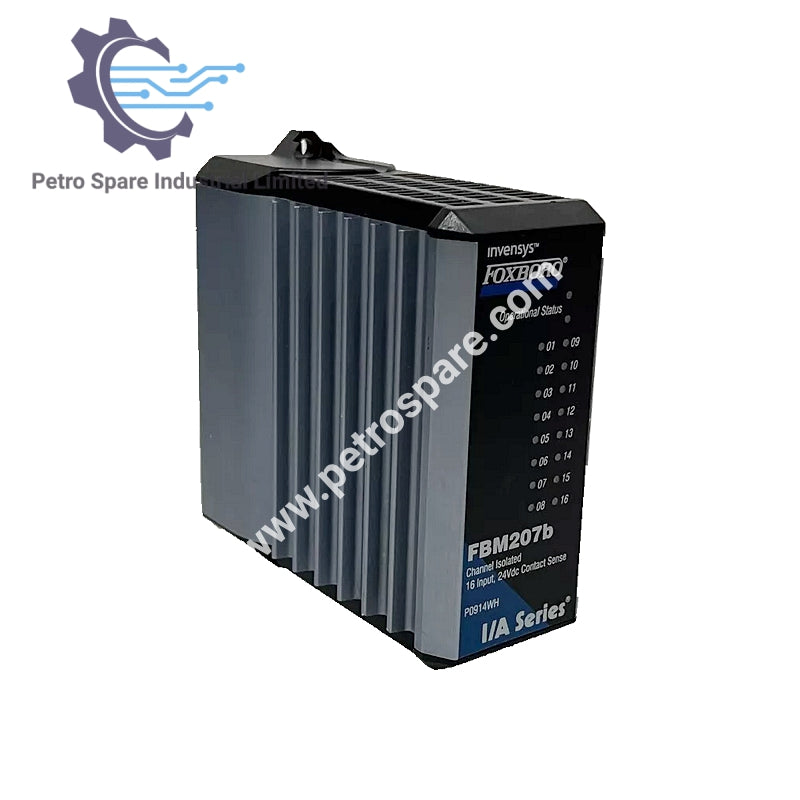

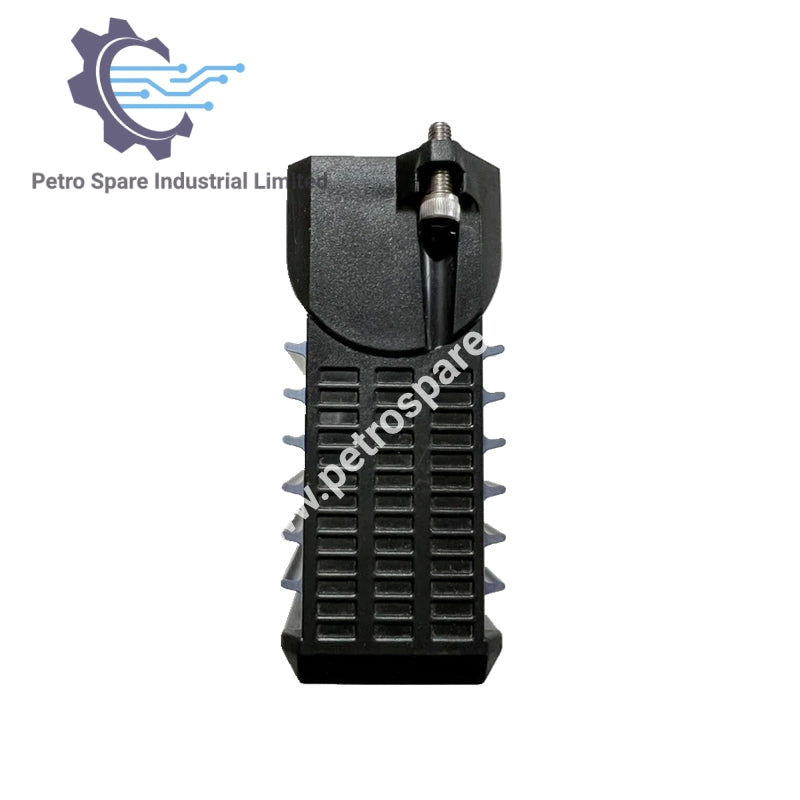

FBM207b P0914WH

Overview

• Model: FBM207b

• Part Number: P0914WH

• Type: Voltage Monitor Input Module

Dimensions

• Height: 102 mm (4 in)

• Height (with mounting lugs): 114 mm (4.5 in)

• Width: 45 mm (1.75 in)

• Depth: 104 mm (4.11 in)

Operating Conditions

• Temperature Range (Module): -20 to +70°C (-4 to +158°F)

• Temperature Range (Termination Assembly - PA): -20 to +70°C (-4 to +158°F)

• Relative Humidity: 5 to 95% (noncondensing)

• Storage Temperature: -40 to +70°C (-40 to +158°F)

Voltage Monitor Input

• Logic One On-State Voltage: 15 to 60 V DC

• Logic Zero Off-State Voltage: 0 to 5 V DC

• Current: 1.4 mA (typical) at 5 to 60 V DC

• Source Resistance Limits:

• Logic One On-State: max 1 kΩ at 15 V DC

• Logic Zero Off-State: min 100 kΩ at 60 V DC

Contact Sensor Input

• Range: Contact open (off) or closed (on)

• Open-Circuit Voltage: FBM207b: 24 V DC ±15%; FBM207c: 48 V DC ±15%

• Short-Circuit Current: 3.2 mA (typical)

• Logic One On-State Resistance: max 1.0 kΩ

• Logic Zero Off-State Resistance: min 100 kΩ

---
