F801

Description

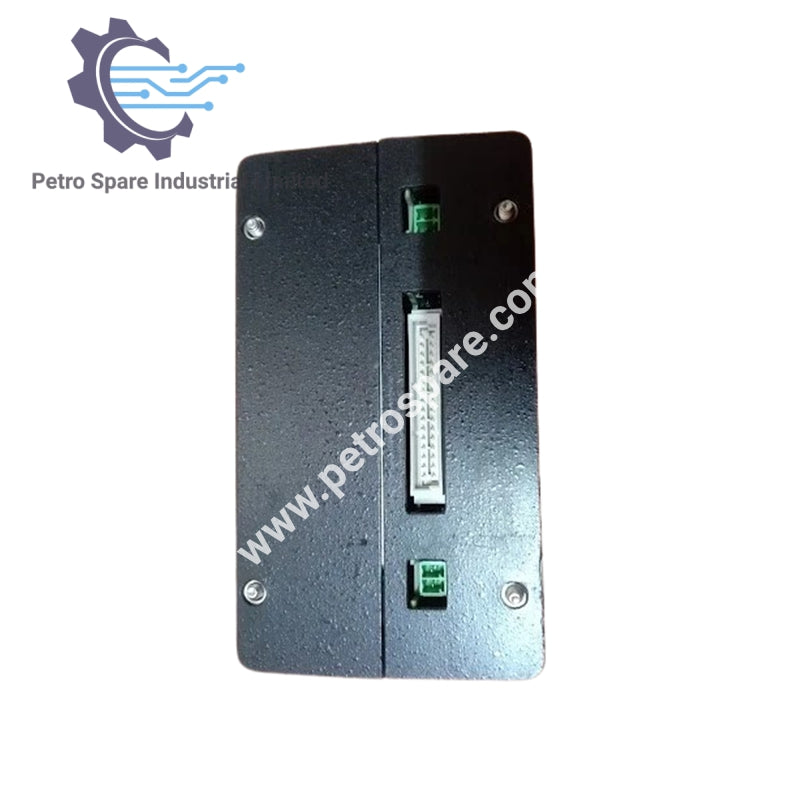

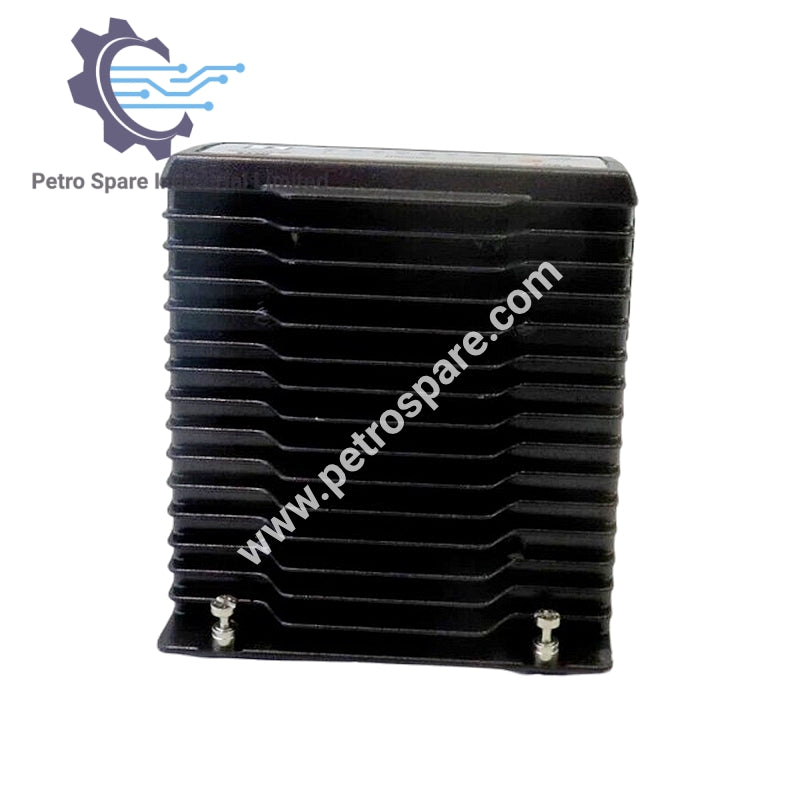

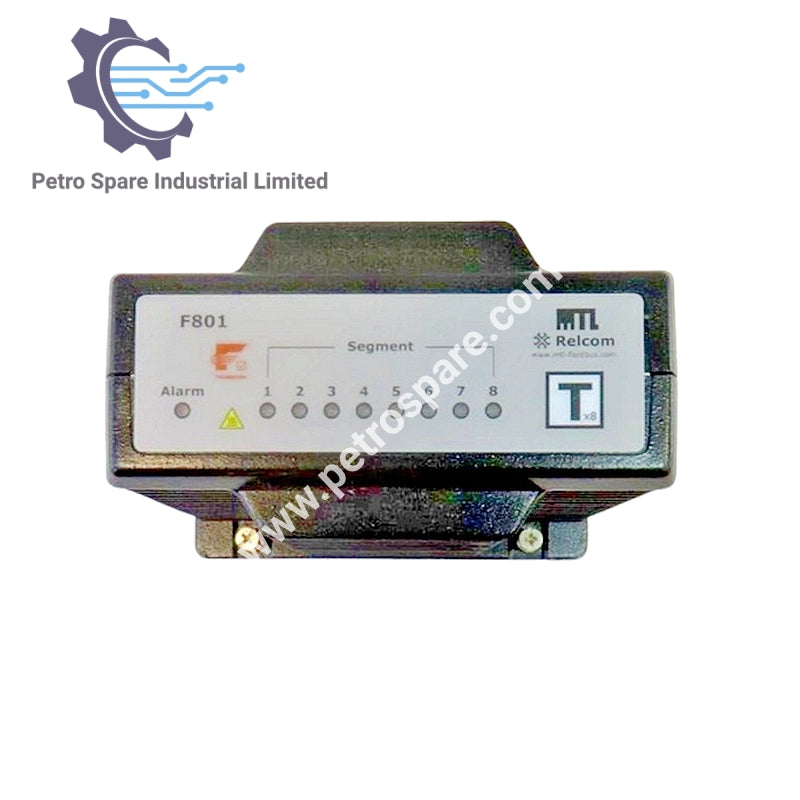

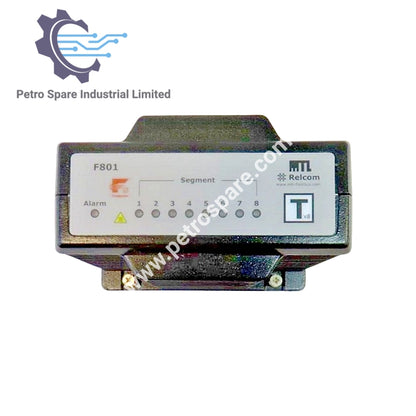

F801 is an Eaton MTL 8-segment power module providing regulated DC outputs for field devices.

Identity

• Part Number: F801

• Type: 8 Segment Power Module

Input Characteristics

• Input Voltage (DC): 19.2–30.0 V

• Current Consumption: 3.5 A (typical at 24 V input, all outputs fully loaded)

• Total Power Dissipation: 20 W (24 V input, all outputs fully loaded)

Output Characteristics

• Number of Channels: 8

• Output Voltage (DC): 21.5–24.0 V

• Design Current: 0–350 mA per segment

• Current Limit: >370 mA

• Minimum Load: 0 mA

Environmental Ratings

• Operating Temperature (full load): –40 °C to +65 °C

• Operating Temperature (60% load): –40 °C to +65 °C

• Storage Temperature: –40 °C to +85 °C

---
