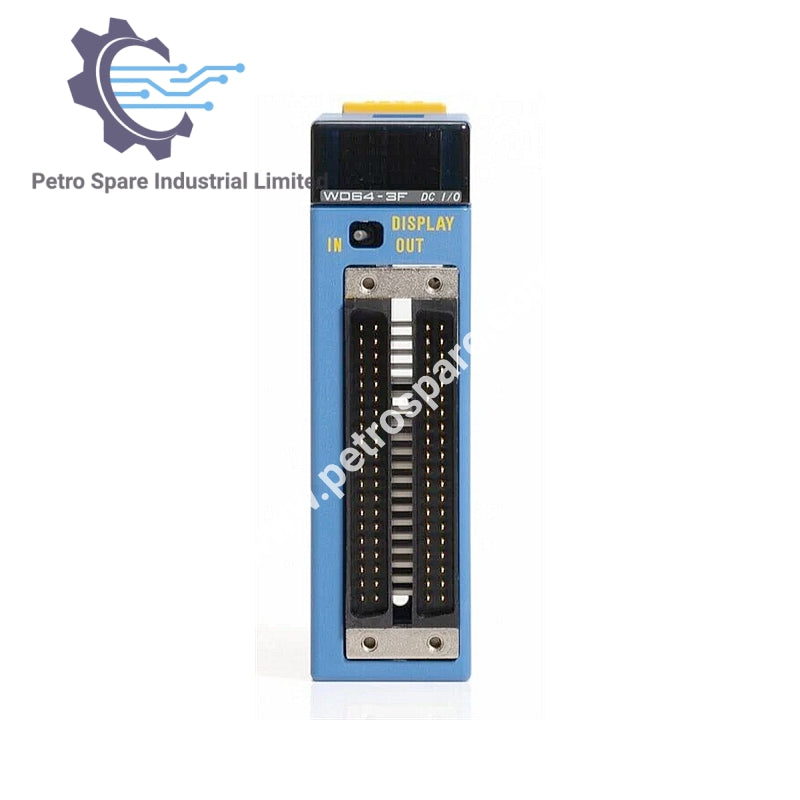

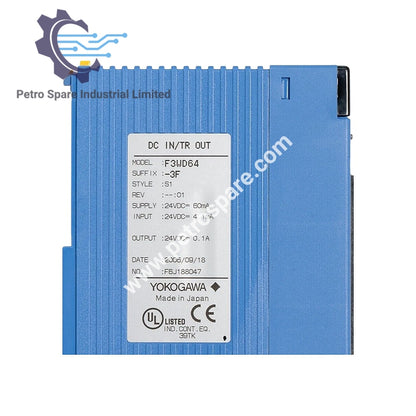

F3WD64-3F

Product Overview

• Model: F3WD64-3F

• Type: 64-Point I/O Module

• Series: Yokogawa FA-M3

• Configuration: 32 inputs + 32 outputs

Input Specification

• Input Type: DC voltage

• Number of Points: 32

• Isolation Method: Photocoupler isolation

• Rated Input Voltage: 24 VDC

• Rated Input Current: 4.1 mA/point

• Operating Voltage/Current:

  • ON: ≥16 VDC / ≥3.2 mA

  • OFF: ≤5.8 VDC / ≤0.9 mA

• Response Time:

  • OFF → ON: ≤1.0 ms

  • ON → OFF: ≤2.5 ms

• External Connection: 40-pin DC connector

• Points per Common: 8

Output Specification

• Output Type: Transistor contact (sink type)

• Number of Points: 32

• Isolation Method: Photocoupler isolation

• Rated Load Voltage: 24 VDC

• Max. Load Current: 0.1 A/point, 0.4 A/common

• Response Time:

  • OFF → ON: ≤1.0 ms

  • ON → OFF: ≤1.0 ms

• Surge Protection: Zener diode

• External Power Supply: 24 VDC, 60 mA

• External Connection: 40-pin connector

• Points per Common: 8

• Default Output Behavior (when module stops): RESET (module basis, configurable)

---
