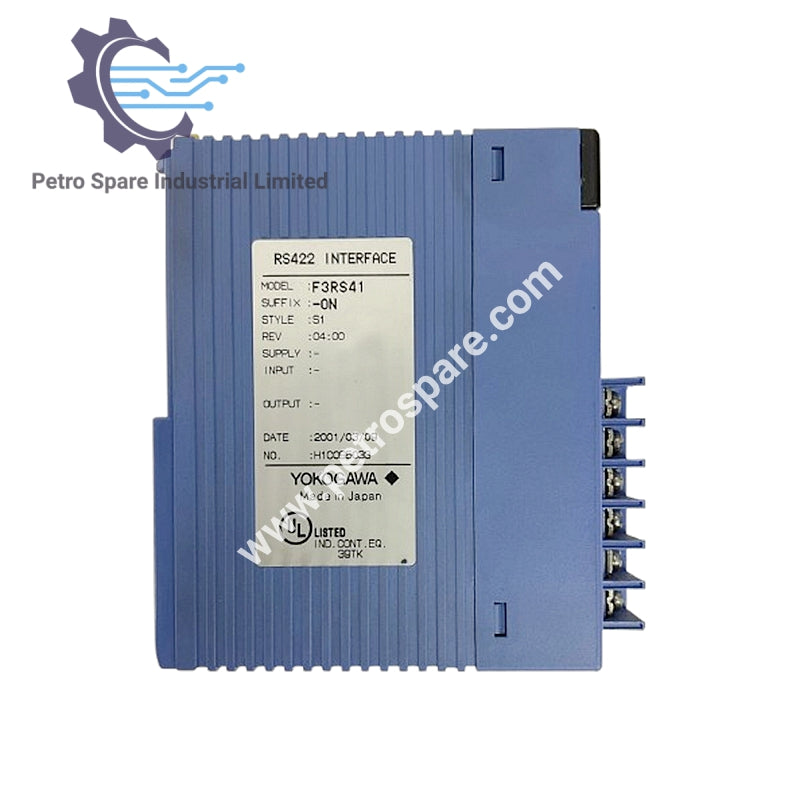

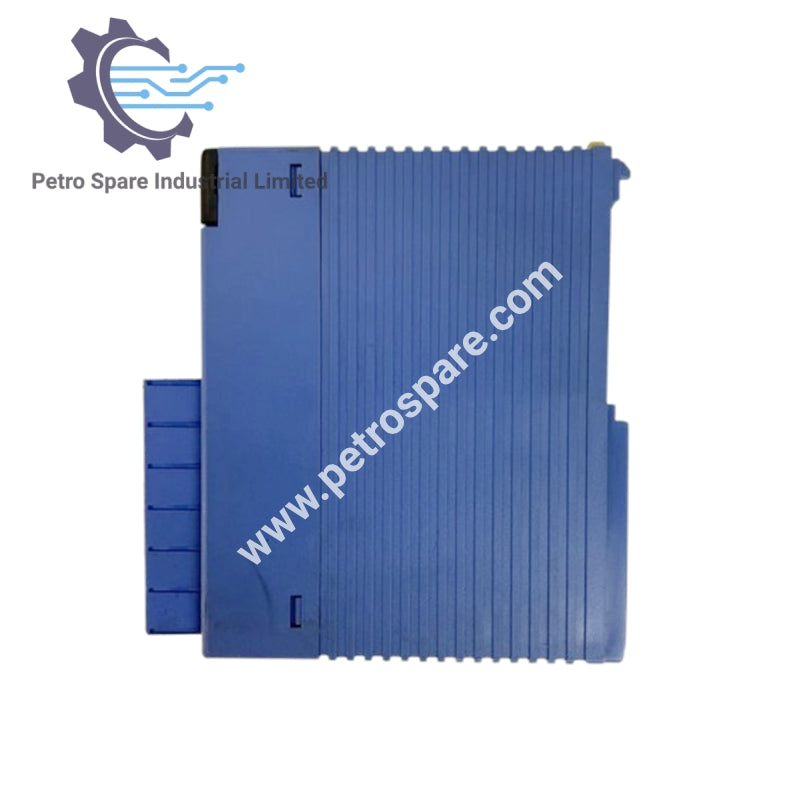

F3RS41-0N

Overview

• Model: F3RS41-0N

• Type: RS-422 Communication Module

• Interface: EIA RS-422A / RS-485 compliant

Technical Specification

• Ports: 1 isolated communication port

• Driver Capacity: 1 driver (RS-422A) / 32 drivers (RS-485)

• Receiver Capacity: 10 receivers (RS-422A) / 32 receivers (RS-485)

• Transmission Distance: ≤ 1,200 m

• Connector: Six-pole terminal block, 3.5 mm screws

• Current Consumption: 210 mA (5 V DC)

Communication Features

• Connection: Point-to-point or multipoint

• Mode: Full-duplex / Half-duplex

• System: 4-wire / 2-wire

• Synchronization: Start-stop

• Protocol: Non-procedural

Mechanical Specification

• Width: 28.9 mm

• Height: 100 mm

• Depth: 83.2 mm

• Weight: 110 g

---
