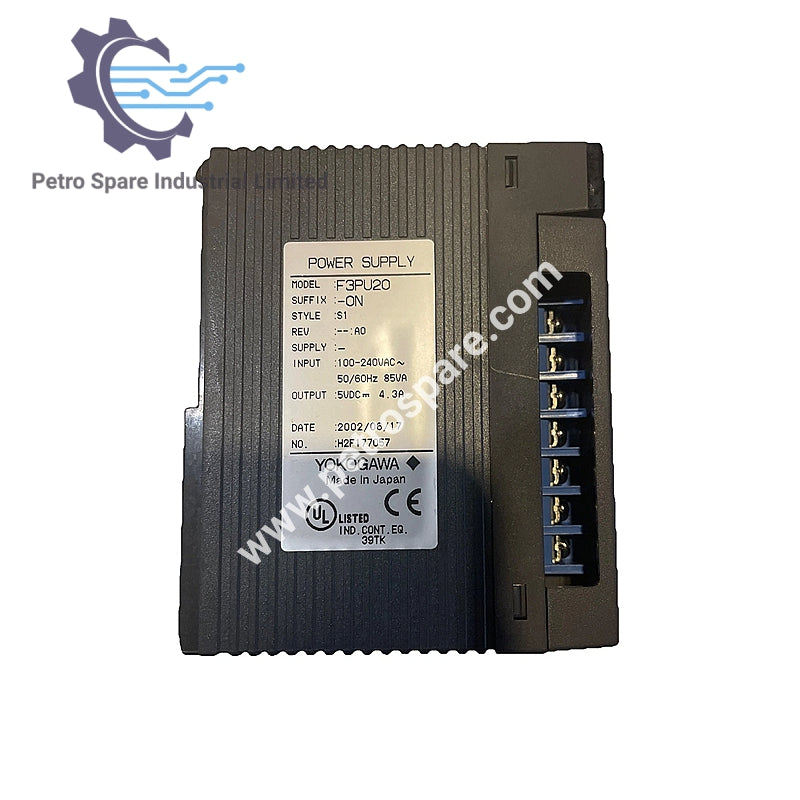

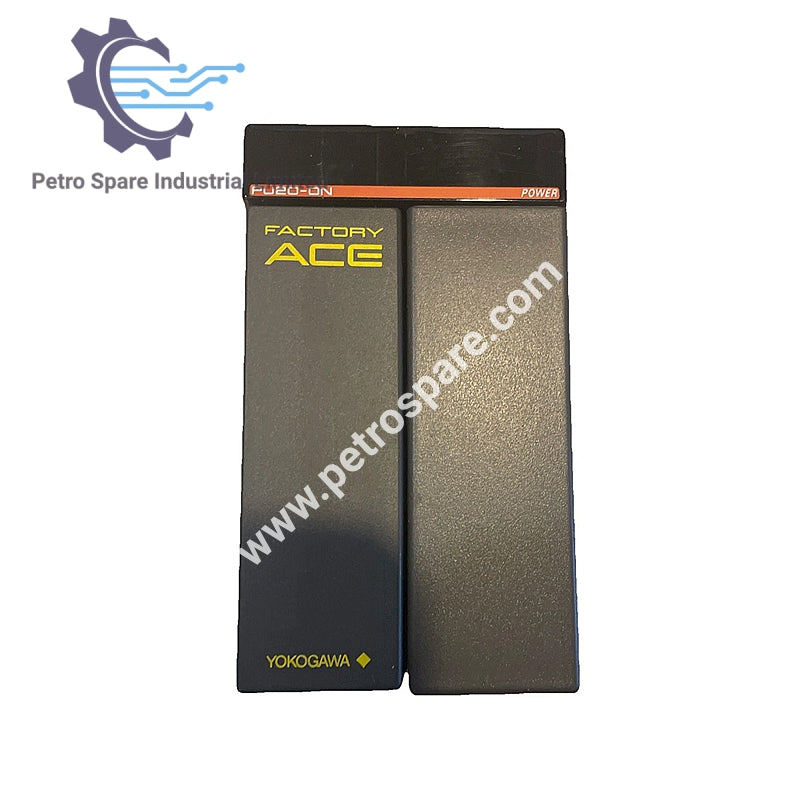

F3PU20-0N

Overview

• Model: F3PU20-0N

• Type: Power Supply Module

• Series: Yokogawa FA-M3

Electrical Specification

• Supply Voltage Range: 100–240 VAC, single phase, 50/60 Hz

• Supply Voltage Change Range: 85–264 VAC / 60 Hz ±3 Hz

• Power Consumption: 85 VA

• Leakage Current: ≤3.5 mA

• Allowable Momentary Power Failure Time: ≤20 ms

Safety & Protection

• Insulation Resistance: ≥5 MΩ (tested between external AC terminals and FG terminal with 500 VDC tester)

• Withstanding Voltage: 1500 VAC for 1 minute (between external AC terminals and FG terminal)

• FAIL-Signal Contact Output:

  • Located on front terminal block

  • Contact Ratings: 24 VDC, 0.3 A

  • Equipped with both normally-open and normally-closed terminals

---
