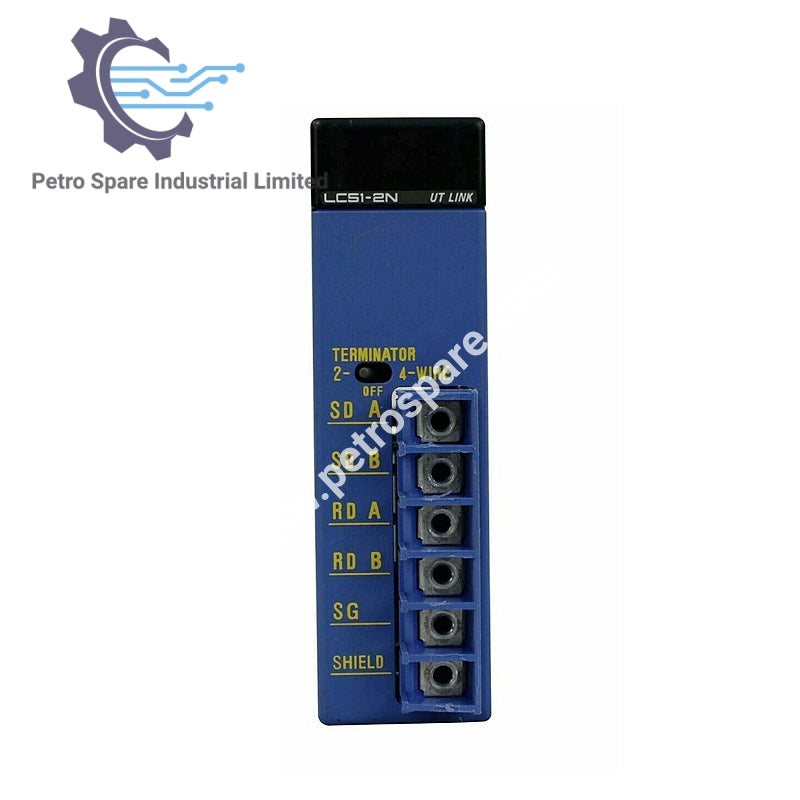

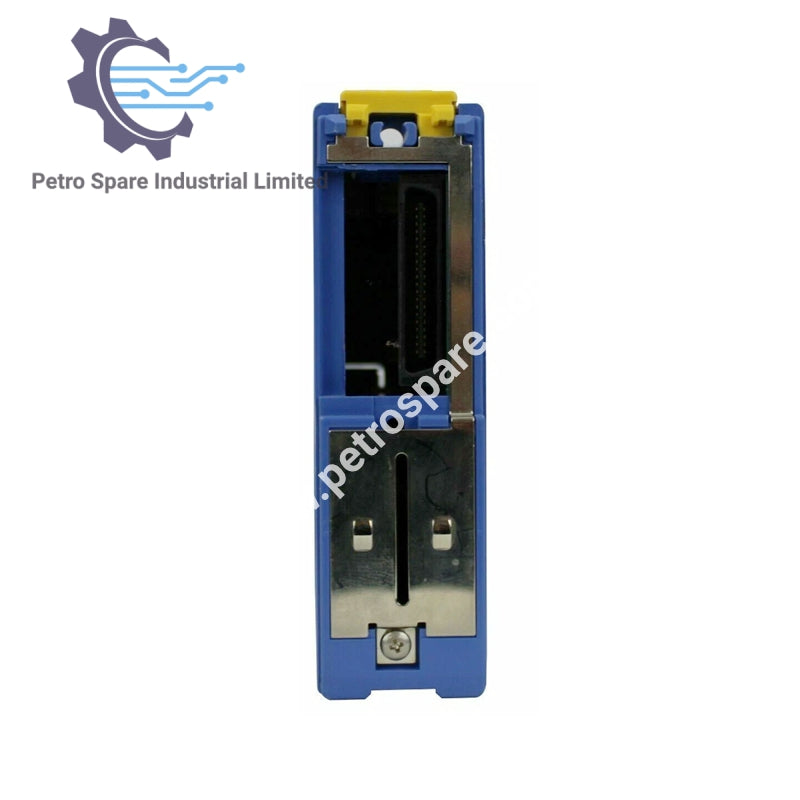

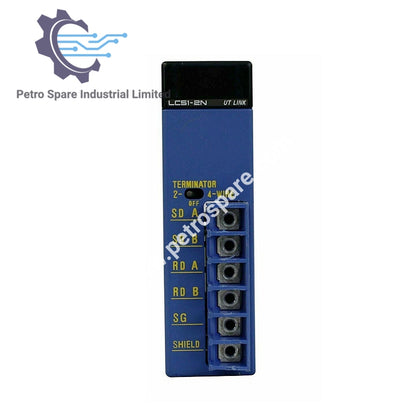

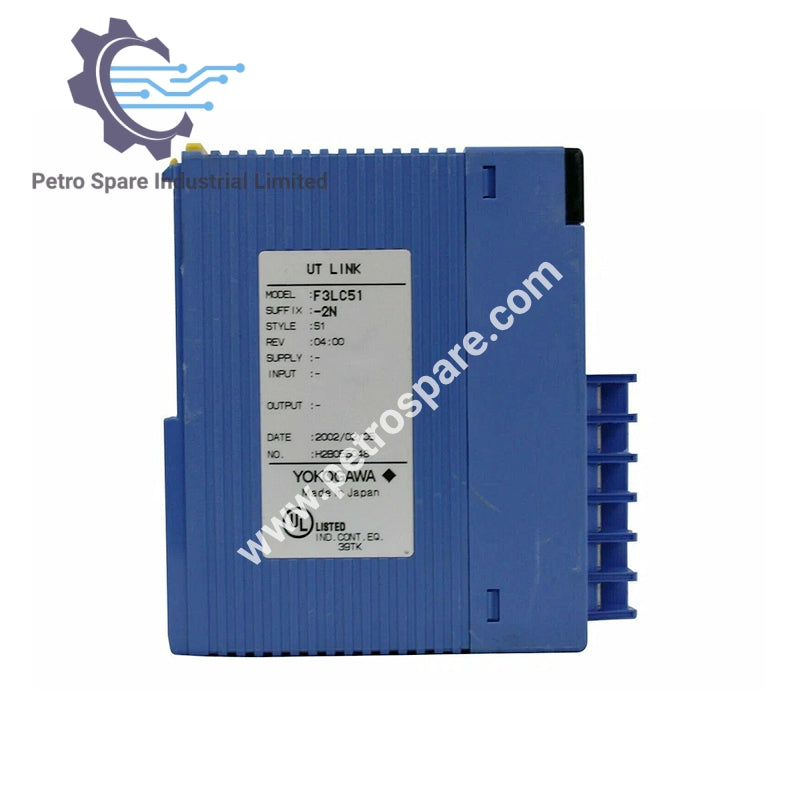

F3LC51-2N

Overview

• Model: F3LC51-2N

• Type: UT Link Module

• Series: Yokogawa FA-M3

Communication Specification

• Interface Standards: EIA RS-422-A and EIA RS-485

• Transmission Mode: Half-duplex, 4- or 2-wire system

• Synchronization: Start-stop synchronization

• Transmission Speed: 300, 600, 1200, 2400, 4800, 9600, 19200, 31250, 38400 bps

• Transmission Media: Shielded twisted-pair cable (AWG20–16)

• Transmission Distance: Max. 1200 m

• Number of Connected Stations: Max. 32 (depending on external instruments)

• Terminating Resistance: 220 Ω (built-in, enabled via switch for terminal station)

• Number of Ports: 1 (isolated)

Data Format

• Start Bit: 1

• Data Length: 7 or 8 bits

• Parity Bit: None, even, or odd

• Stop Bit: 1 or 2 bits

• Protocol: Proprietary protocol

• Access Range: All control data

Electrical Specification

• Current Consumption: 290 mA

External Connection

• Connector: 6-point terminal block, M3.5 screws

Dimensions

• Width: 28.9 mm

• Height: 100 mm

• Depth: 83.2 mm (excluding protrusions)

Weight

• Approx.: 130 g

---
