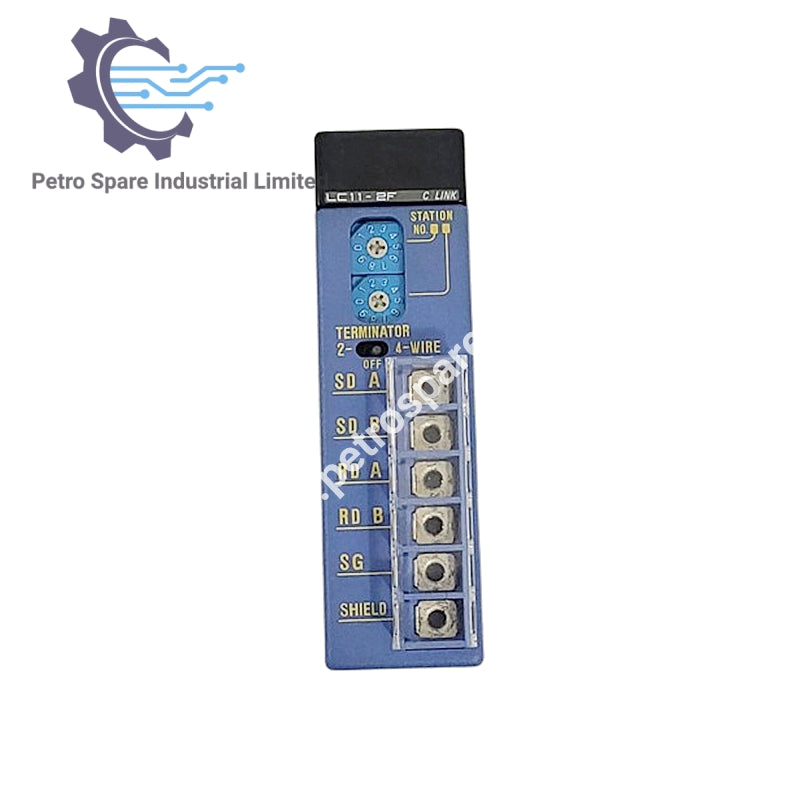

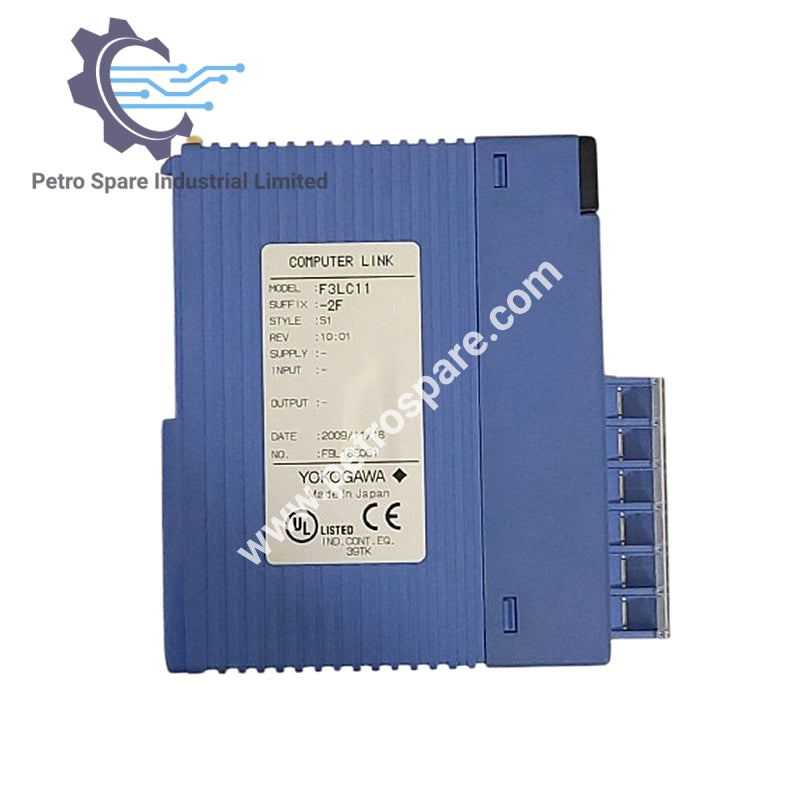

F3LC11-2F

Overview

• Model: F3LC11-2F

• Type: Personal Computer Link Module

Communication Specification

• Interface Standards: EIA RS-422-A, EIA RS-485

• Transmission Mode: Half-duplex, 4-wire or 2-wire system

• Synchronization: Start-stop synchronization

• Transmission Speed: 300–115.2 kbps (selectable: 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57.6k, 76.8k, 115.2k)

• Transmission Media: Shielded twisted-pair cable (AWG20–16)

• Transmission Distance: Max. 1200 m

• Terminating Resistance: 220 Ω (built-in, switch selectable for terminal station)

• Number of Ports: 1 (isolated)

Data Format

• Start Bit: 1

• Data Length: 7 or 8 bits

• Parity Bit: None, even, or odd

• Stop Bit: 1 or 2 bits

• Error Detection: Parity check, checksum

• Flow Control: None (Xon/Xoff not supported)

• Setup Items: Transmission speed, data format, checksum, ending character, protection

• Protocol: Proprietary protocol

• Ending Character: Configurable (Yes/No)

• Protection Feature: Configurable (Yes/No)

Functional Specification

• Access Range:

  • All sequence devices

  • BASIC common area

  • Upload/download ladder program

  • RUN/STOP control

  • Read error log

  • Read user log

Electrical Specification

• Current Consumption: 350 mA

Mechanical Specification

• External Connection: 6-point terminal block, M3.5 screws

• Dimensions (W × H × D): 28.9 × 100 × 83.2 mm

• Weight: 120 g

---
