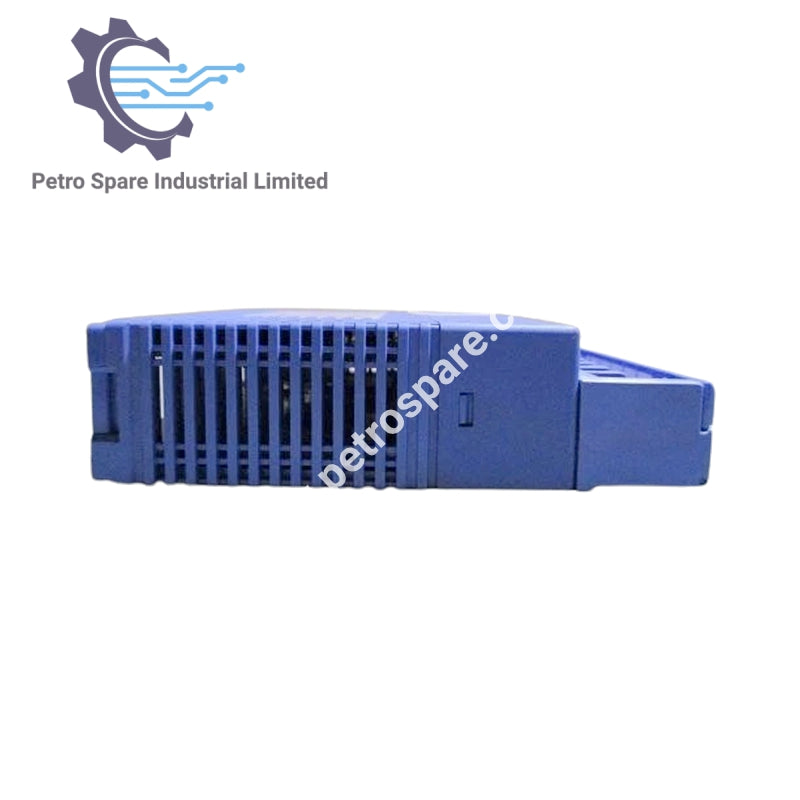

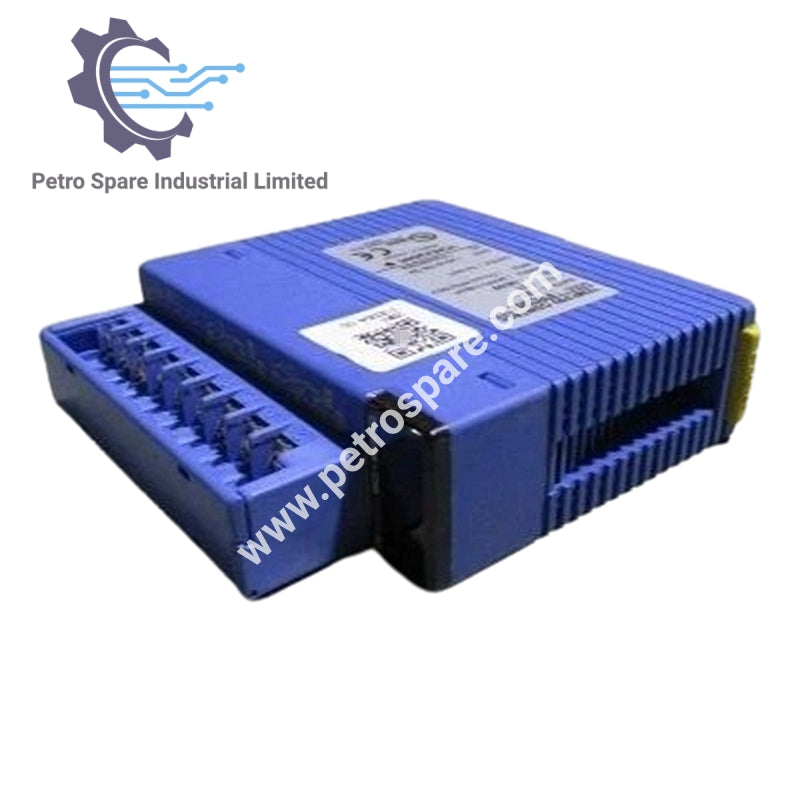

F3CU04-0S

Overview

• Model: F3CU04-0S

• Type: Temperature Control & PID Module

• Series: Yokogawa FA-M3 PLC

• Loops: 4 universal input loops

• Size: Single-slot module

• Weight: 200 g

Control & Function Specification

• Control Method: Time-proportional PID output (open collector)

• Alarm Types: 12 types (upper/lower limits, deviation limits, within deviation, with/without waiting)

• Alarm Outputs: 4 per loop (2 input relays for alarms 1 & 2 per loop)

• Alarm ON-delay: Supported

• Warm-up Time: ≥30 minutes

Electrical Specification

• Isolation:

  • Input terminals ↔ internal circuit: isolated

  • Output terminals ↔ internal circuit: isolated by photocouplers & transformers

  • Withstand Voltage: 1500 VAC for 1 min

• Current Consumption: 460 mA @ 5 VDC

Mechanical Specification

• Dimensions (W × H × D): 28.9 × 100 × 106.1 mm

• Mounting Position: Vertical only (horizontal/inverted not allowed; air vents must remain open)

---
