DS200TCCAG1A

Product Overview

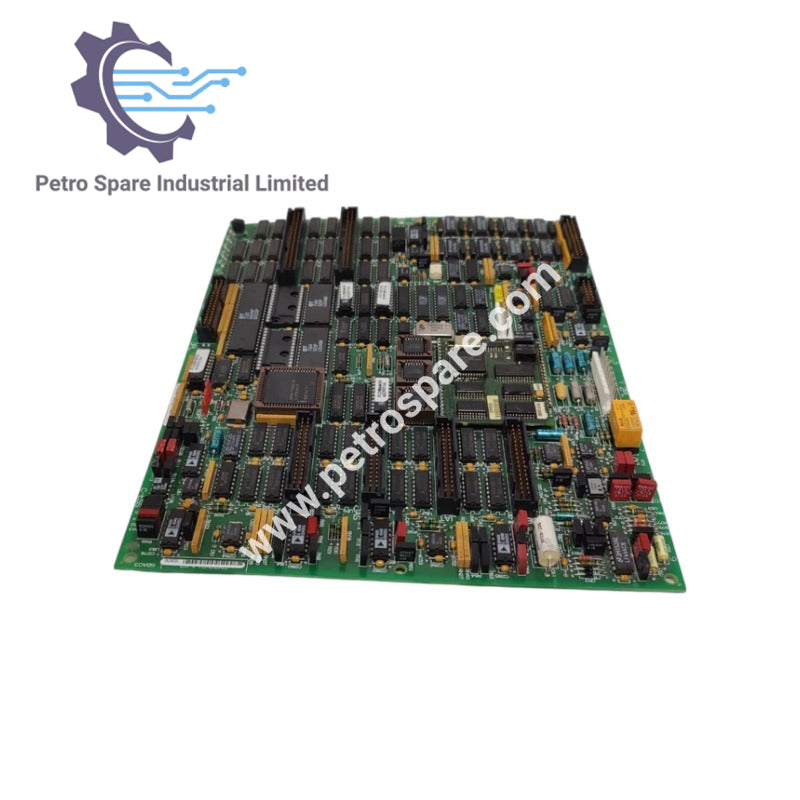

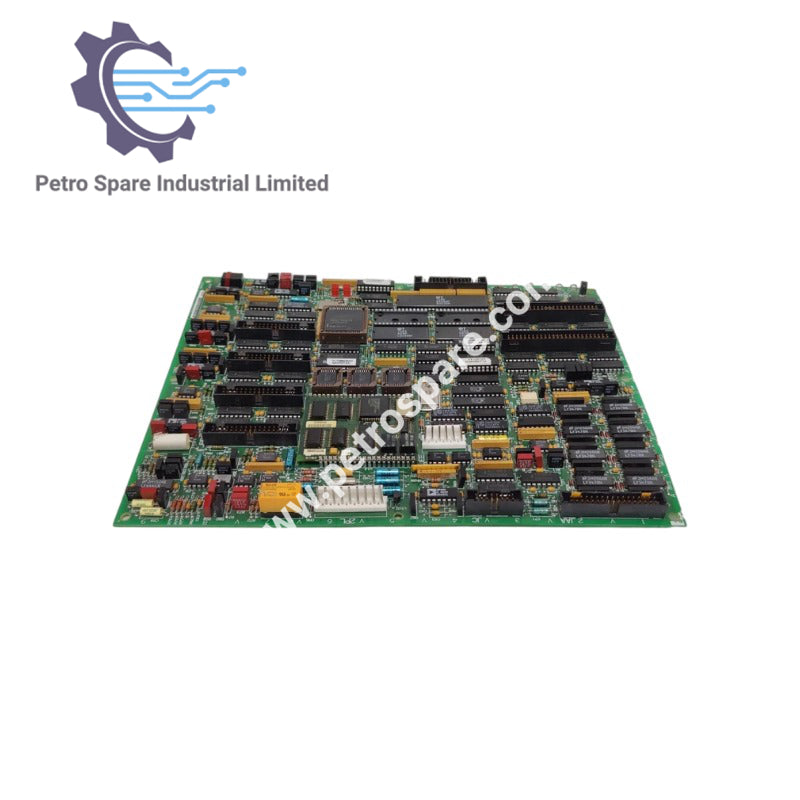

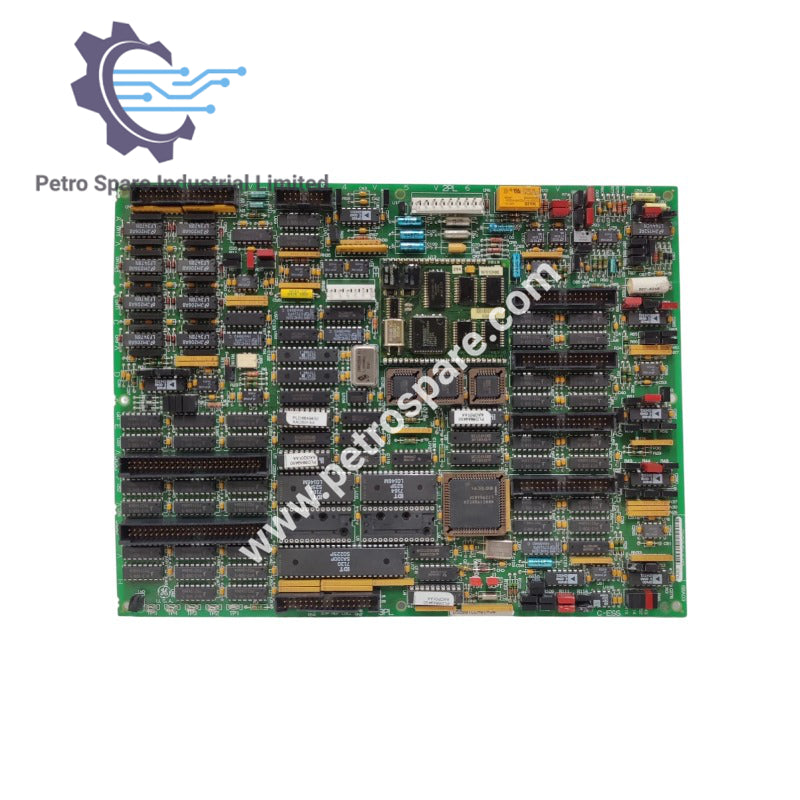

The DS200TCCAG1A is a Mark V Common Analog I/O Board featuring one 80196 microprocessor, multiple PROM modules, one LED, and 2 50‑pin connectors (JCC and JDD).

Processor & Memory

• Microprocessor: 80196
• PROM Modules: Multiple

Connectors & LED

• 50‑Pin Connectors: 2 (IDs: JCC, JDD)
• LED: 1 (visible from side view)

Jumpers

• JP1: Enables or disables the RS232 port
• JP2: Disables the oscillator for card test
• JP3: Used for factory testing purposes

Thermal Consideration

• Keep the board at a cool temperature to ensure microprocessor accuracy and prolong its life; excessive heat may damage the microprocessor and cause inaccurate processing

---
