DS200SHVMG1BBB

Product Overview

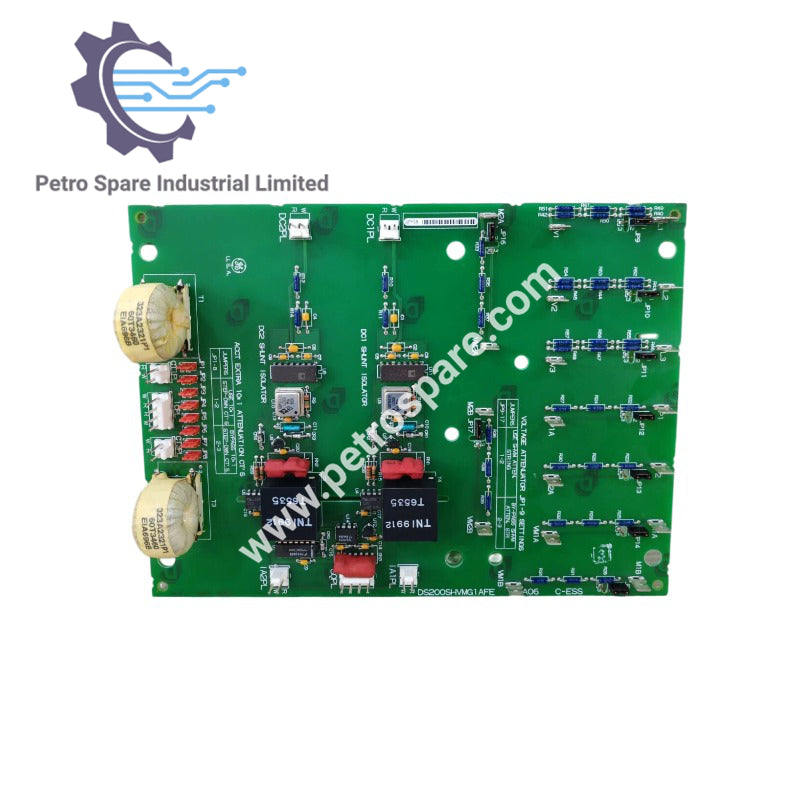

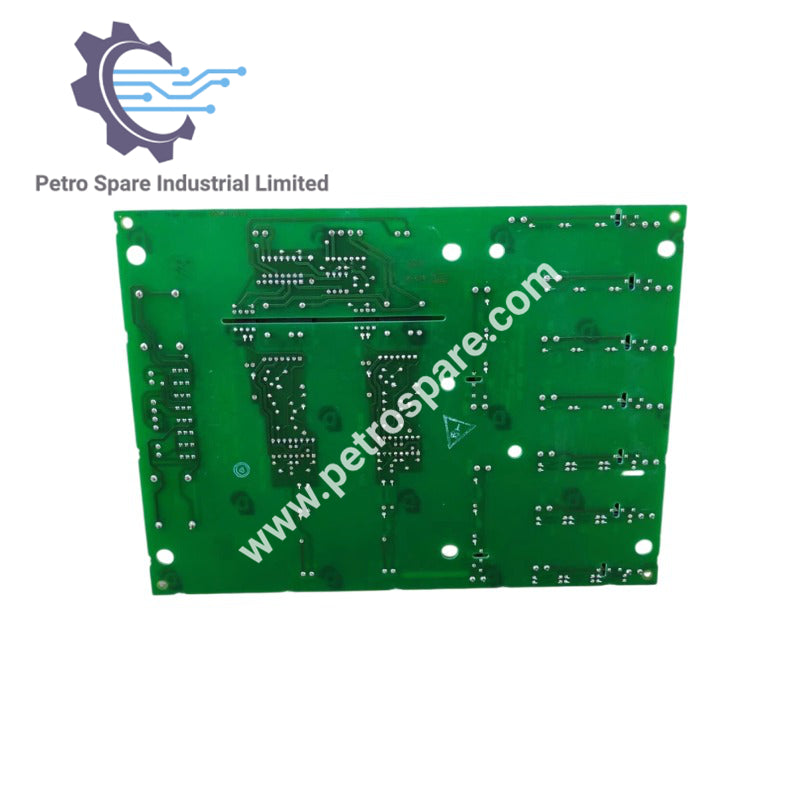

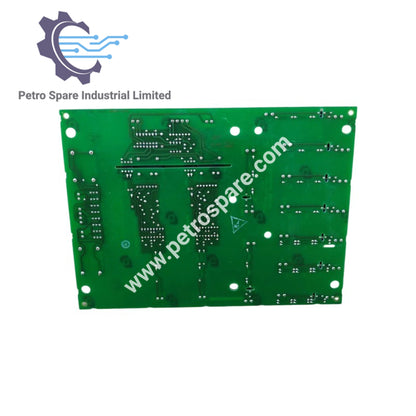

The DS200SHVMG1BBB is a GE Mark V SCR High‑Voltage M‑Frame Interface Board (SHVM) that interfaces between the SCR power bridge, power supply boards, and the Power Supply Connection Card for turbine control systems.

General Specifications

• Functional Acronym: SHVM
• System Compatibility: GE Mark V DS200 Series

Environmental & Physical

• Operating Temperature: –30°C to +65°C
• Storage Temperature: –20°C to +85°C
• Humidity: 5% to 90% non‑condensing
• Weight: 0.4 kg

---
