DS200RTBAG2AEB

Product Overview

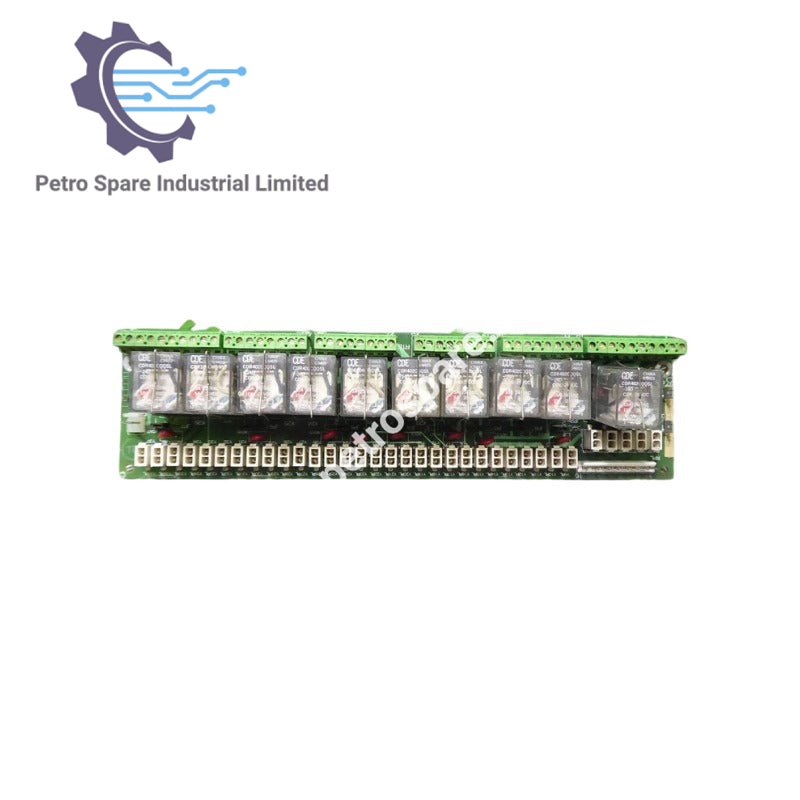

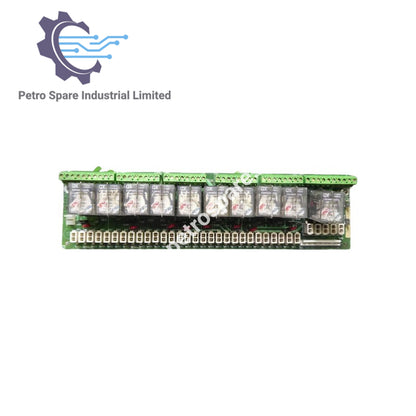

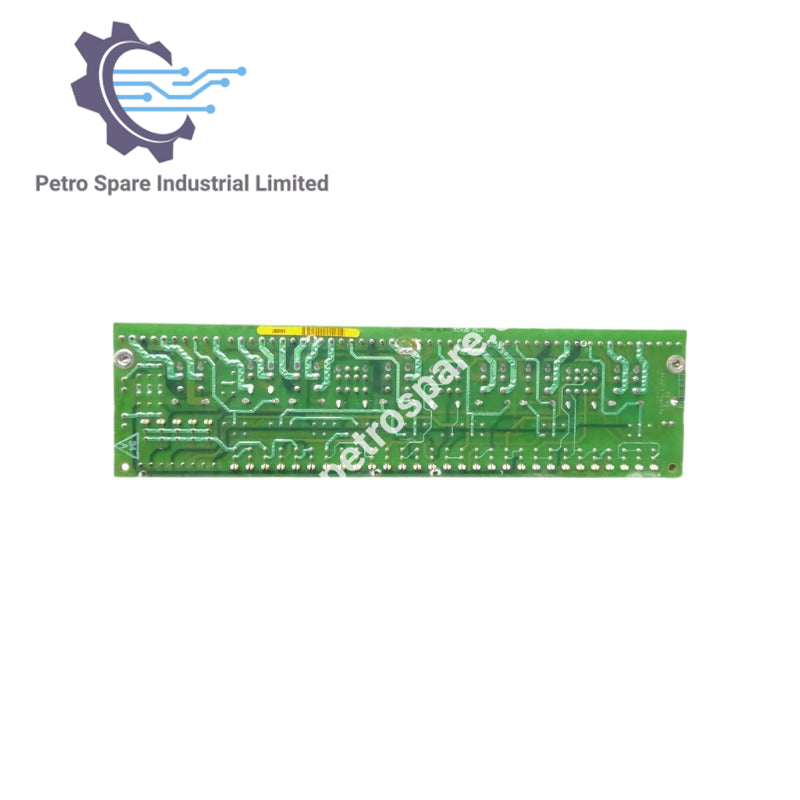

The DS200RTBAG2AEB is a GE Mark V Relay Terminal Board featuring 10 relays (7 DPDT and 3 4PDT) for turbine control applications.

Relay Specifications

• DPDT Relays: 7 (locations K20‑K26), each with 2 Form C contacts
• 4PDT Relays: 3, each with 4 contacts
• DPDT Contact Rating: 10A / 110 VDC coil
• 4PDT Contact Rating: 1A / 110 VDC coil
• Protection: 130 VAC MOV per relay

Jumpers

• JP8: K20‑K22 Power source selection
• JP9: RPL.1 connection

Key Features

• Relays are removable and replaceable
• Conformal coating for protection

---
