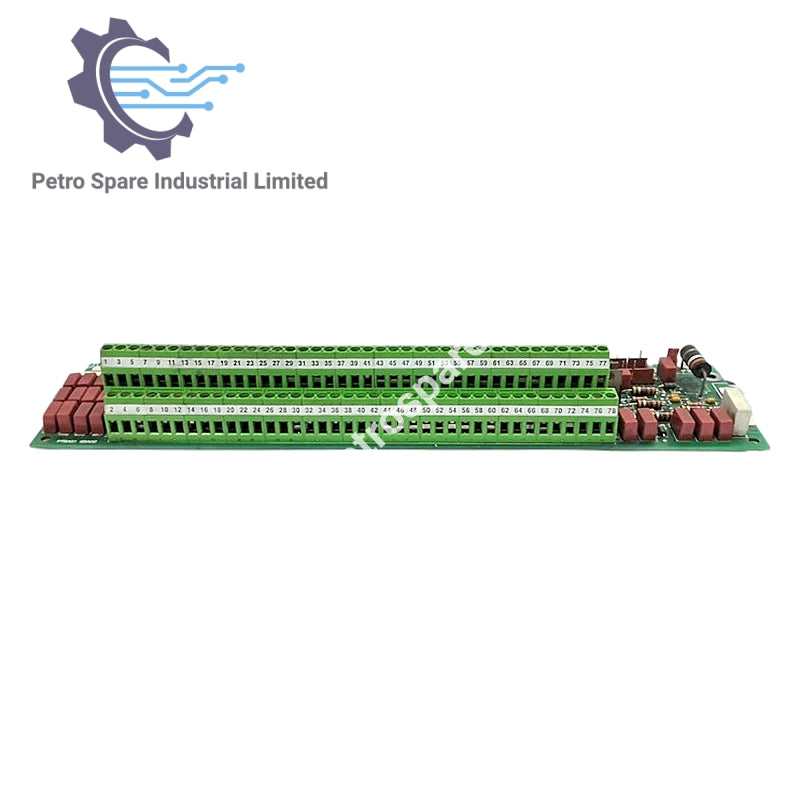

DS200PTBAG1ABA

Overview

• Model: DS200PTBAG1ABA

• Type: Protection Termination Module

• Application: Terminates signals in <P1> core of Mark V system

Signal Termination

• Inputs: Flame detection, generator/bus voltages, shaft speeds, generator currents

• Outputs: Written to TCEB board (<P1> core) or TCQE board (<R1> core)

Alarm Function

• Jumper: J1 powers audible horn alarm on TCEB

• Silence: Remove J1 jumper to disable alarm

Connectors

• Options: Plugs and vertical pin connectors

• Special Signals:

  • JM/JN: Generator breaker signals

  • JU: Emergency overspeed signals

  • JV: Generator and bus voltage signals

  • JVA: 335 V DC to flame detection devices

  • JJS/T: Typically unused

---
