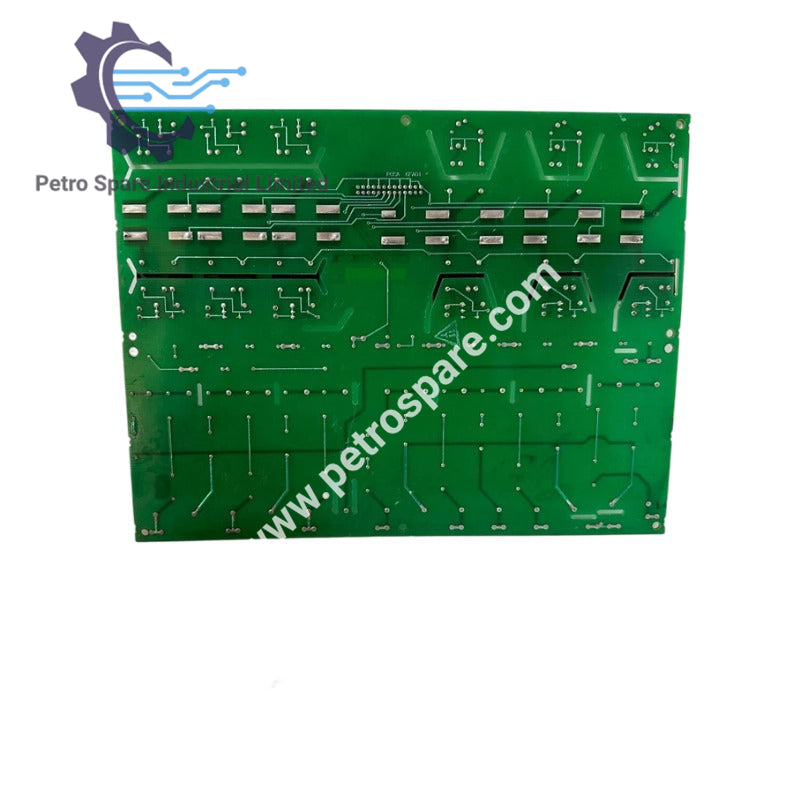

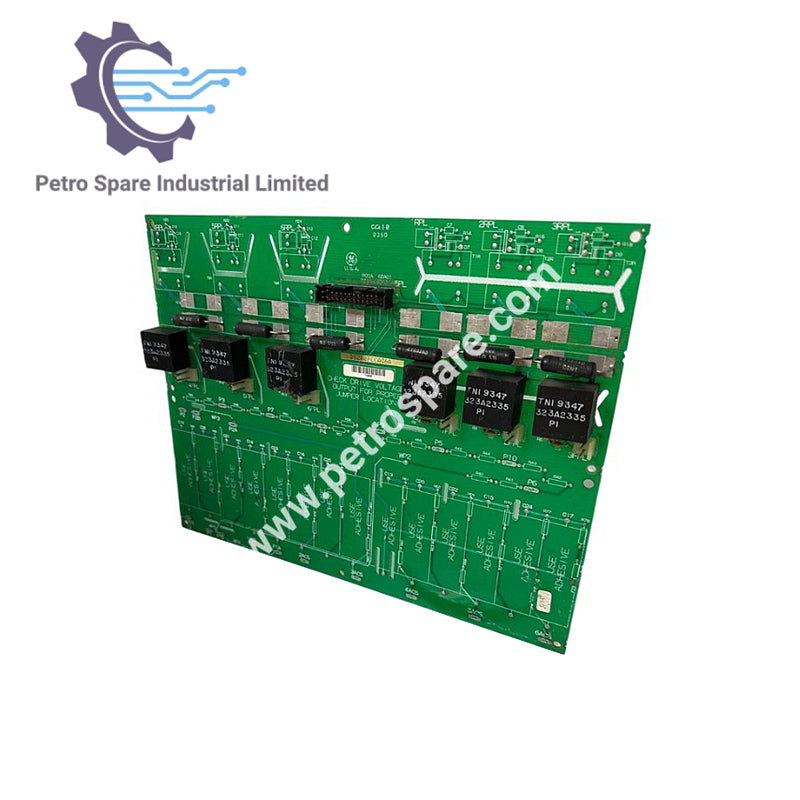

DS200PCCAG6A

Product Overview

The DS200PCCAG6A is a GE Mark V Power Connect Board (PCCA) designed for high‑horsepower applications with J, K, and M frame compatibility, providing gate drive functions and power spike dampening for SCR bridges.

Key Features

• Pulse transformers for gate drive functions to the SCR bridge
• Snubber circuits for dampening power spikes across gate drivers, DC bus, and AC lines
• High horsepower capability (G6 model)
• J, K, and M frame compatibility
• DCFB power supply board compatibility
• Leg fuses and reactors
• Six transformers located in one line

---
