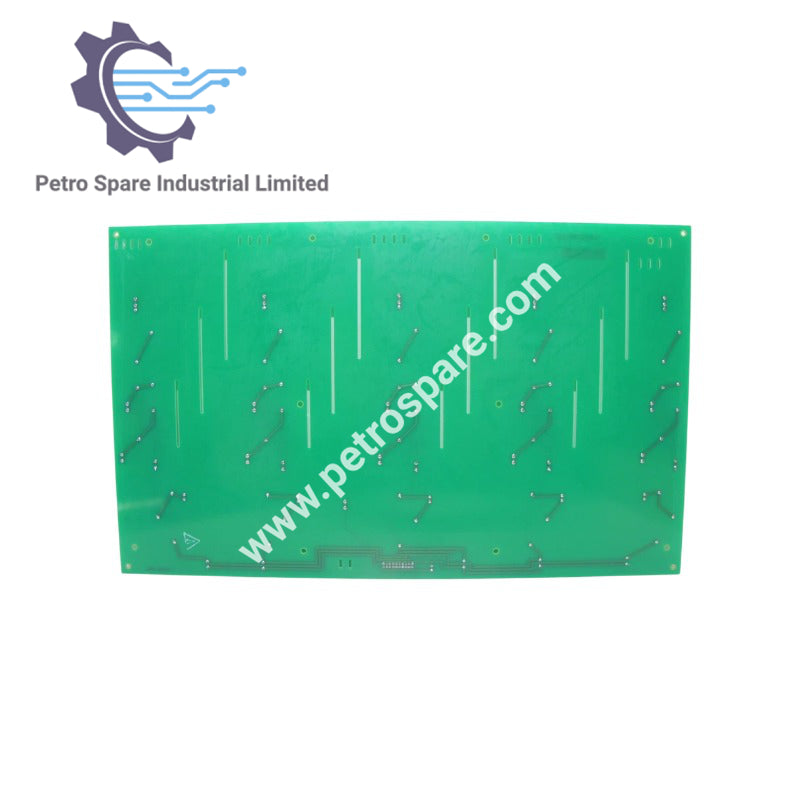

DS200NATOG3A

Overview

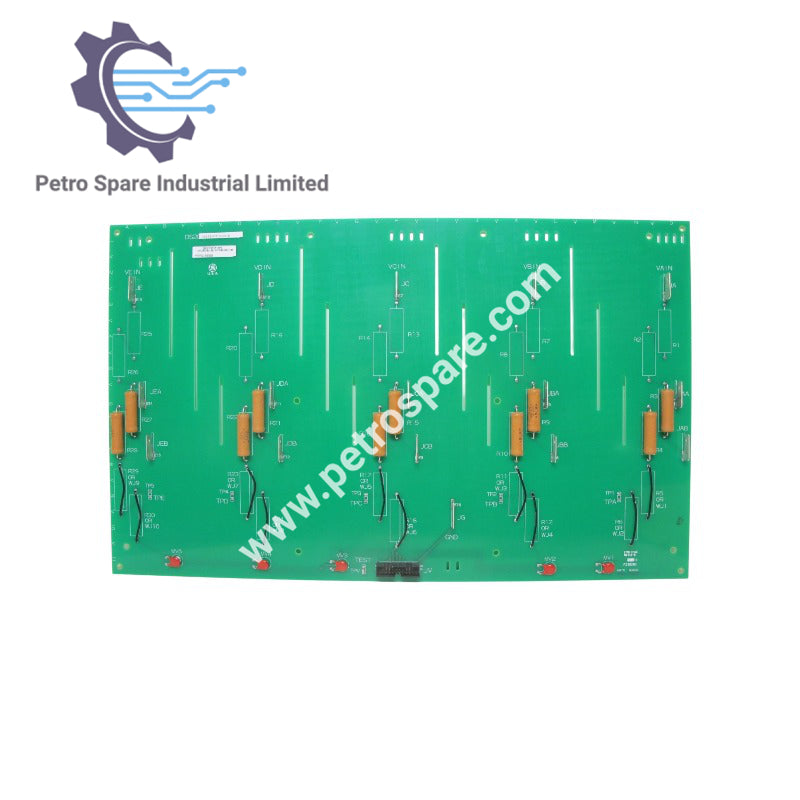

The DS200NATOG3A is a GE Voltage Feedback Sensing Board (NATO) used for attenuating DC and AC voltages through an SCR bridge, ensuring precise bridge voltage feedback derivation.

Features

• Used with a gate distribution status board and a VME backplane board
• 3 stab connectors in each of 5 resistor strings for versatile resistor configuration
• Base‑level board (not backward compatible with G2 variants)
• Designed for use with different bridge interface boards
• Processes voltage feedback of the NATO board
