DS200LDCCH1AFA

Overview

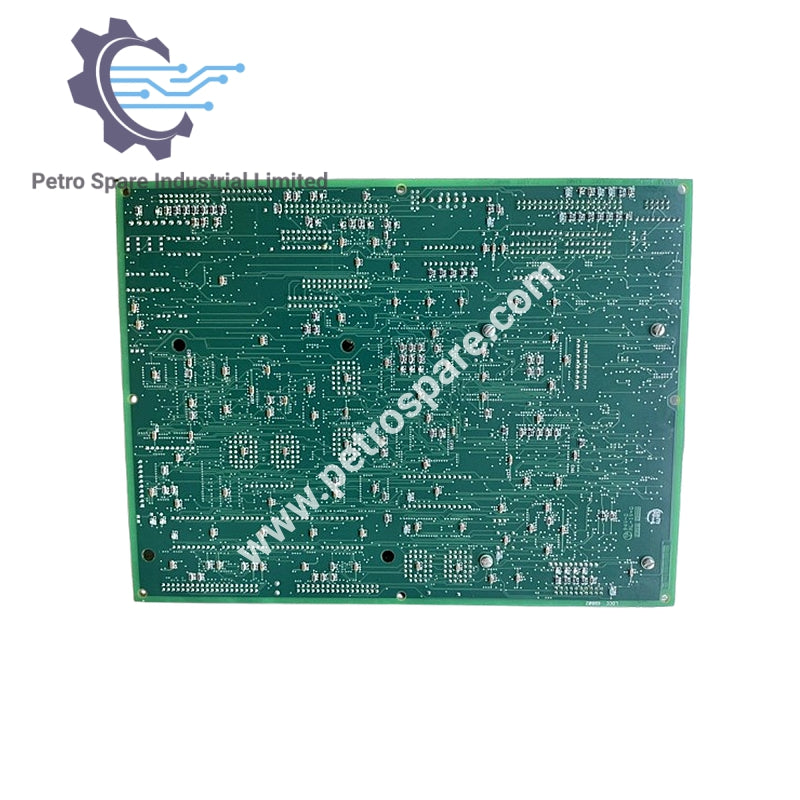

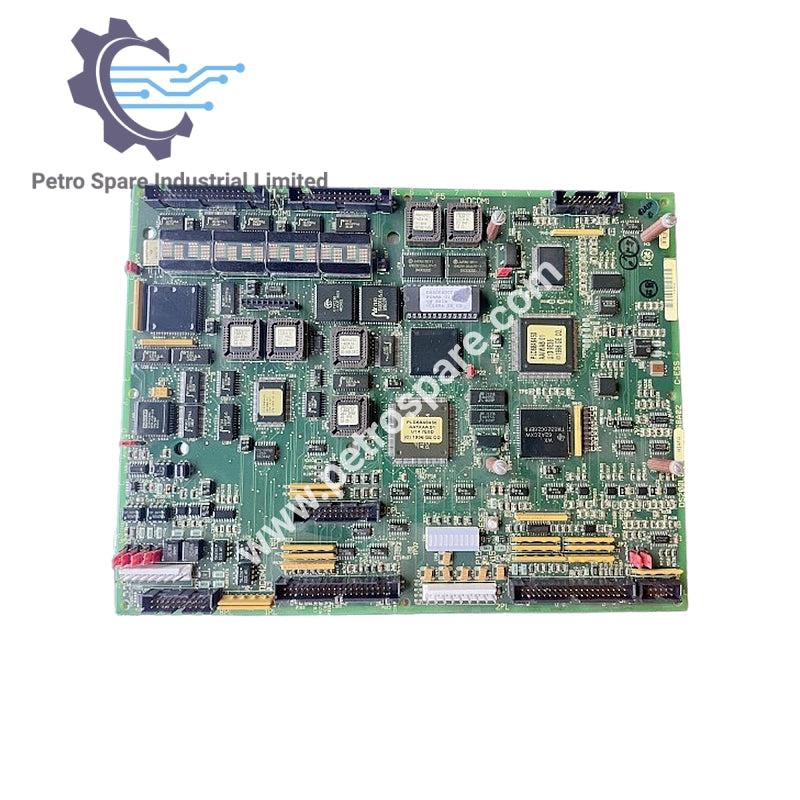

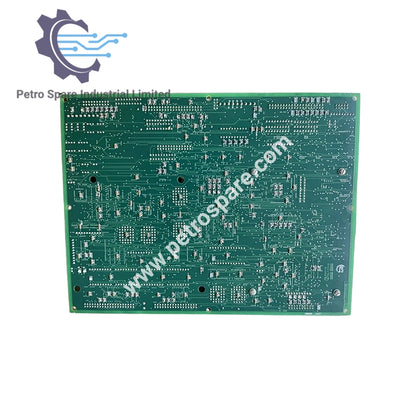

The GE DS200LDCCH1AFA is a LAN communications board for the Mark V system, designed to manage multiple bus protocols and provide direct diagnostic access.

Microprocessors

• Drive Control Processor (DCP): Digital/analog I/O conversions and peripheral control

• LAN Control Processor (LCP): Supports five bus LAN systems

• Motor Control Processor (MCP): Handles digital I/O communications

• Co-Motor Processor (CMP): Adds processing speed for complex calculations

User Interface

• Programmer Keyboard: Direct access to diagnostics and error codes

Bus System Compatibility

• DLAN+: ARCNET®‑based drive LAN protocol

• DLAN: Drive LAN for smaller and earlier larger drives

• Genius® bus: Via DS200ADGI interface board

• CPL (Control Party Line): Serial link via DS200ADCI interface board

• C‑bus: Parallel differential bus via DS200ADCI interface board

---
