DS200CDBAG1BDB

Overview

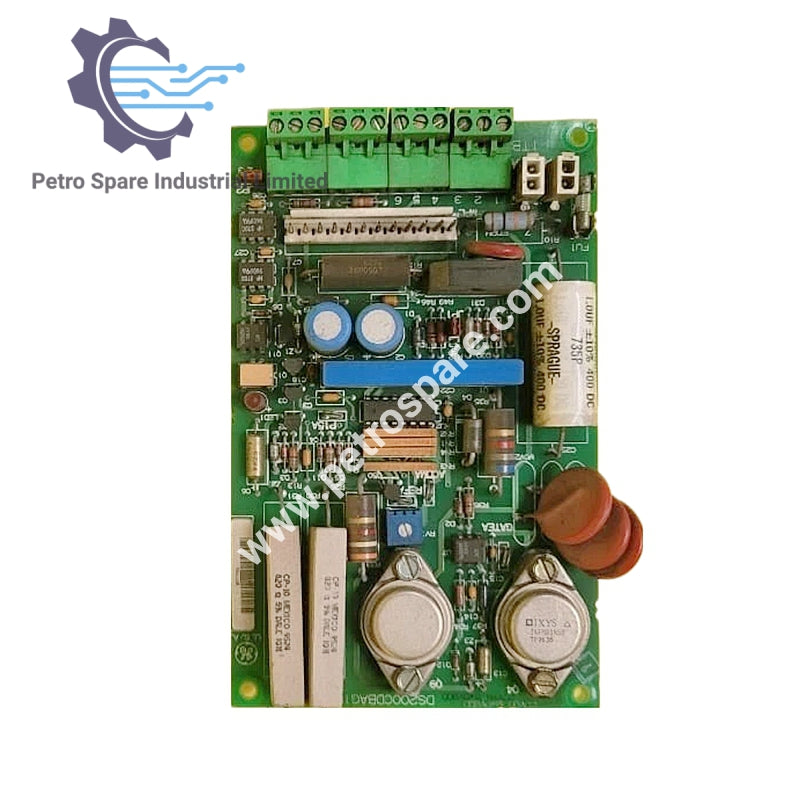

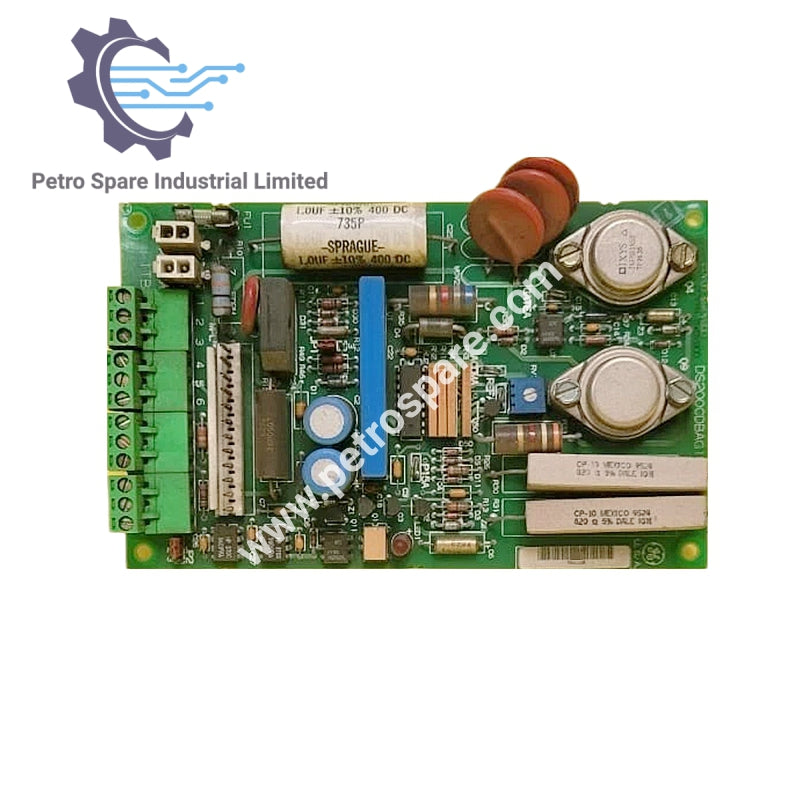

The GE DS200CDBAG1BDB is a Contactor Driver Board from the Mark V Series, designed to open and close contactors in turbine control systems.

General Information

• Manufacturer: General Electric

• Series: Mark V

• Function: Contactor driver board

Hardware Features

• Jumpers: 2 accessible; factory jumper on pins 1–2, optional coordinated operation on pins 2–3

• Connectors: 1TB main connector for signals, power, and communication

• Power Supply: Voltage provided via 1TB‑9 and 1TB‑10

Key Characteristics

• Contactor Control: Enables reliable opening and closing of contactors

• Coordinated Operation: Supports multiple boards with jumper adjustment

• Factory Testing: Reserved jumper configuration for assembly line validation

---
