DO05

Overview

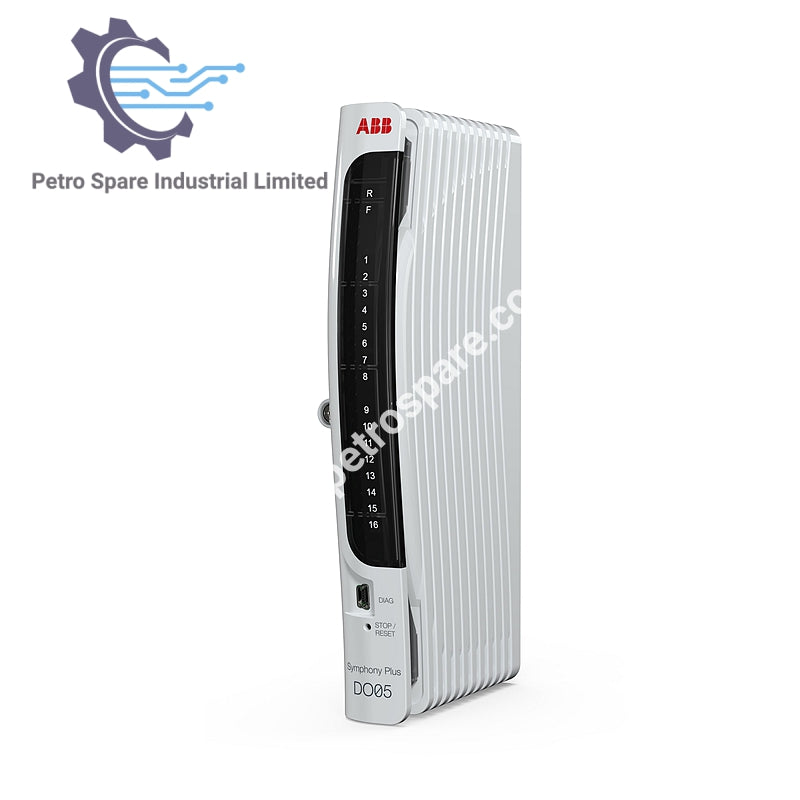

DO05 is an ABB SD Series digital output module with 16 electromechanical relay channels, Form C SPDT type, designed for flexible signal switching in industrial automation.

Identification

• Product ID: DO05

• Type: Digital Output Module

• Signal type: DO

• Form factor: Standard 190 mm

• Mounting: Horizontal row or vertical column

• Life cycle status: Active

Channel & Signal Data

• Number of channels: 16 EMR digital outputs

• Signal ranges and types: Electromechanical relay, Form C, SPDT

• HART: No

• SOE: No

• Redundancy: No

Electrical Data

• Module power requirements: 24 VDC ±10%, 208 mA maximum, 229 mA max

• Module power connection: POWER TB on cHBX01L or VBX01T

• Field I/O power (digital outputs):

  • 3.0 A @ 24 VDC resistive load

  • 1.5 A @ 24 VDC inductive load

  • 1.0 A @ 48 VDC resistive load

  • 0.5 A @ 48 VDC inductive load

  • 250 mA @ 125 VDC resistive load

  • 125 mA @ 125 VDC inductive load

  • 3.0 A @ 120 VAC

• Overvoltage category: Category I (EN 61010-1)

• Max field cable length: 600 m

Isolation & Protection

• Field-to-logic isolation: 1500 V up to 1 min

• Channel isolation: Individual channel-to-channel isolated, 1500 V up to 1 min

Reliability

• MTBF (MIL-HDBK-217-FN2): 364,666 h

Mechanical Data

• Width: 27 mm

• Depth: 106 mm

• Height: 190 mm

• Weight: 295 g

---
