1756-OB16IEFK

Product Overview

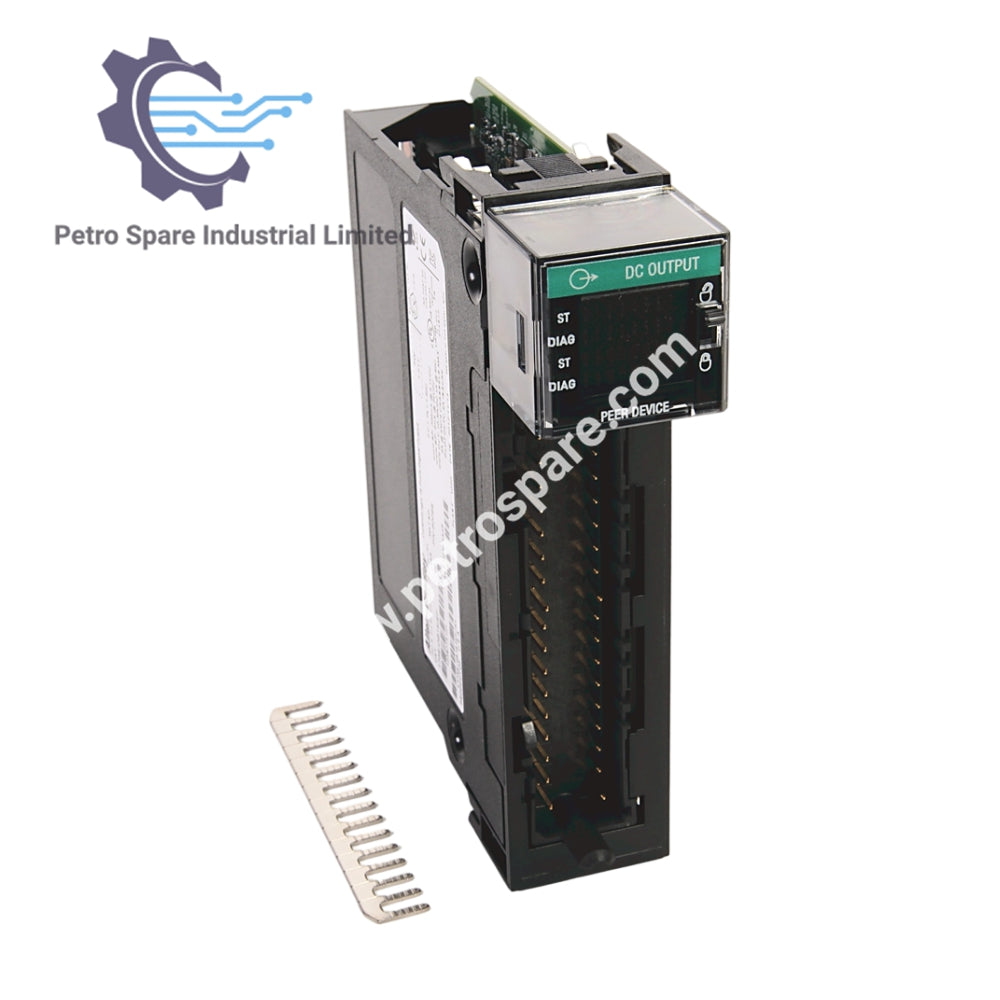

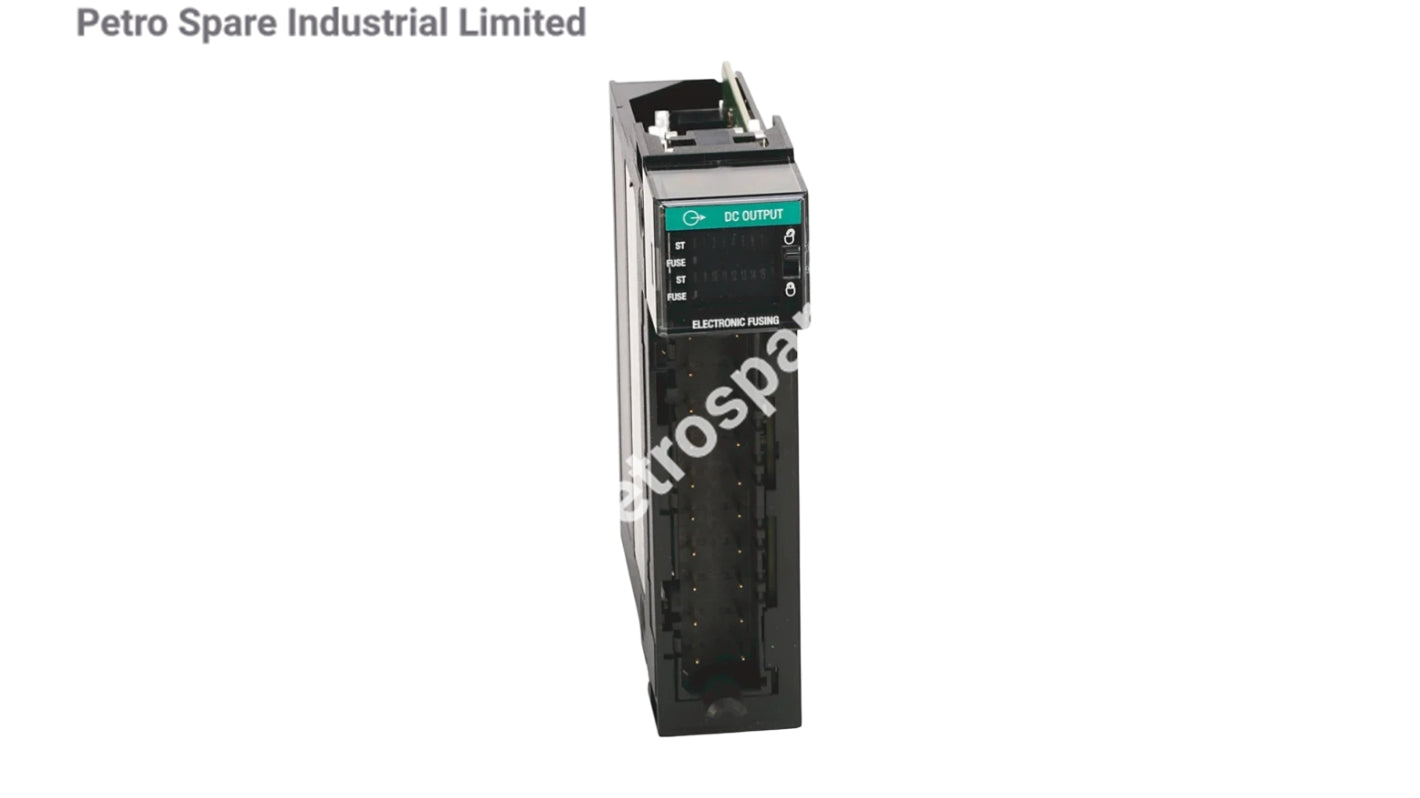

1756-OB16IEFK is a ControlLogix 16-point digital output module with electronically protected, isolated sinking or sourcing outputs.

Technical Specifications

• Outputs: 16 individually isolated

• Pilot Duty: 4 A inrush

• Voltage Category: 12/24V DC sink/source

• Operating Voltage Range: 10…30V DC

• Output Delay Time (Backplane to Screw): Off to On 14 µs nominal / 23 µs max, On to Off 14 µs nominal / 23 µs max

• PWM Cycle Time: 1 ms min / 1 hour max

• PWM On Time: 200 µs min / 1 hour max

• PWM On Time Accuracy: ± 20 µs

• Current Draw: 320 mA @ 5.1V, 3 mA @ 24V

• Total Backplane Power: 1.7 W

• Power Dissipation: 4.9 W max (16 channels @ 1 A or 4 channels @ 2 A)

• Thermal Dissipation: 16.71 BTU/hr

• Off-State Leakage Current per Point: < 0.1 mA

• On-State Voltage Drop: 0.2V DC @ 1 A, 0.4V DC @ 2 A
