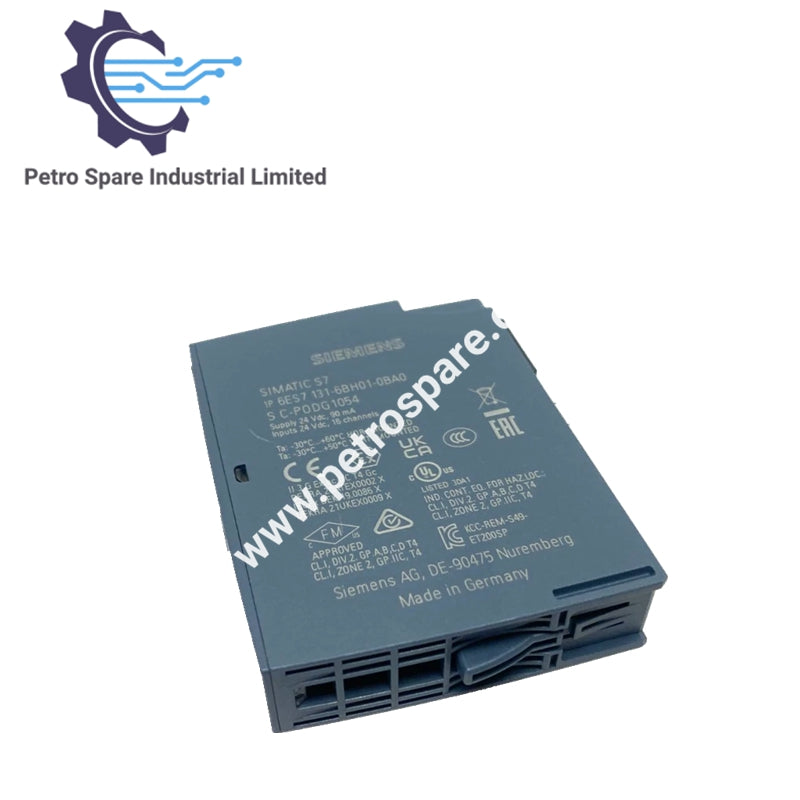

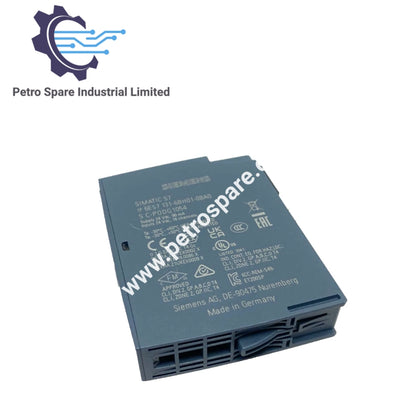

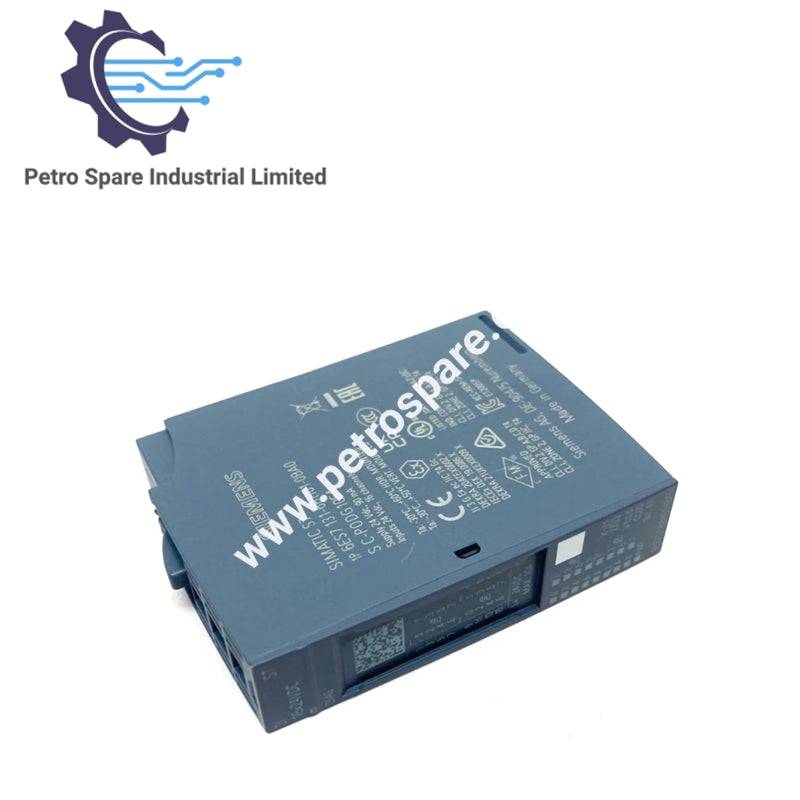

6ES7131-6BH01-0BA0

Overview

• Model: 6ES7131-6BH01-0BA0

• Type: SIMATIC ET 200SP Digital Input Module

• Application: Provides 16 digital input channels for ET 200SP systems, designed for flexible and parameterizable signal acquisition

Electrical Ratings

• Supply Voltage (DC): Rated 24 V

  • Permissible range: 19.2 … 28.8 V

• Protection: Reverse polarity protection

• Current Consumption (max): 90 mA

• Encoder Supply: Not supported

• Power Loss (typical): 1.7 W

Address & Configuration

• Address Space per Module: 2 bytes (inputs) + 2 bytes (QI information)

• Hardware Configuration:

  • Automatic encoding: Yes

  • Mechanical coding element: Yes (Type A)

Digital Inputs

• Number of Inputs: 16

• Parameterizable: Yes

• Input Type: Source/sink, P‑reading

• Characteristic Curve: IEC 61131, Type 3

• Input Voltage:

  • Rated value: 24 V DC

  • Signal “0”: –30 … +5 V

  • Signal “1”: +11 … +30 V

• Input Current (signal “1”): Typical 2.5 mA

Mechanical Specifications

• Width: 15 mm

• Height: 73 mm

• Depth: 58 mm

• Weight: Approx. 28 g

---
