DI04

Overview

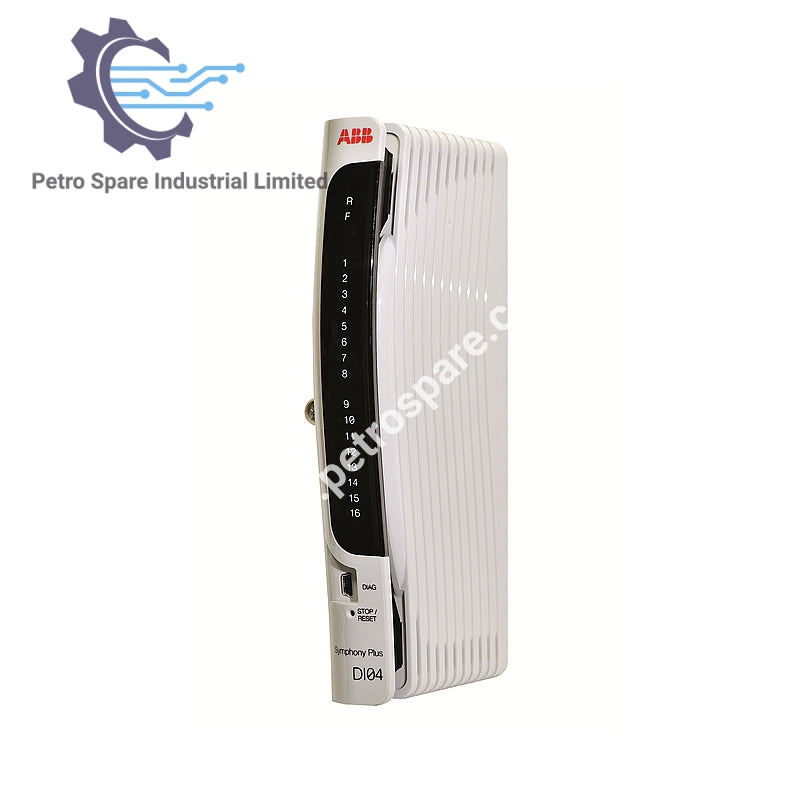

DI04 is an ABB SD Series digital input module with 16 channels, designed for 48 VDC signal acquisition in industrial automation systems.

Identification

• Article number: DI04

• Type: Digital Input Module

• Form factor: Standard (190 mm)

• Mounting: Horizontal row or vertical column

• Life cycle status: Active

Channel & Signal Data

• Number of channels: 16

• Signal specification: 48 V DC

• Signal type: DI

• HART: No

• SOE: No

• Redundancy: No

Reliability

• MTBF (MIL-HDBK-217-FN2): 292,434 h

• MTTR: 1 h

Environment & Certification

• Operating temperature: –40 to +70 °C (IEC/EN 60068-2-1, IEC/EN 60068-2-2)

• Storage temperature: –40 to +85 °C (MIL-STD-810G)

• Relative humidity: 20–95% @ 40 °C non-condensing (IEC/EN 60068-2-78, IEC/EN 61298-3)

• Vibration (operational): 5–60 Hz 0.137 mm, 60–150 Hz 1.0 G (IEC/EN 60068-2-6)

• Vibration (transportation): 10–500 Hz (MIL-STD-810G)

• Shock (storage): 15 G, 11 ms (IEC/EN 60068-2-27)

Dimensions

• Width: 27 mm

• Depth: 106 mm

• Height: 190 mm

• Weight: 230 g

---
