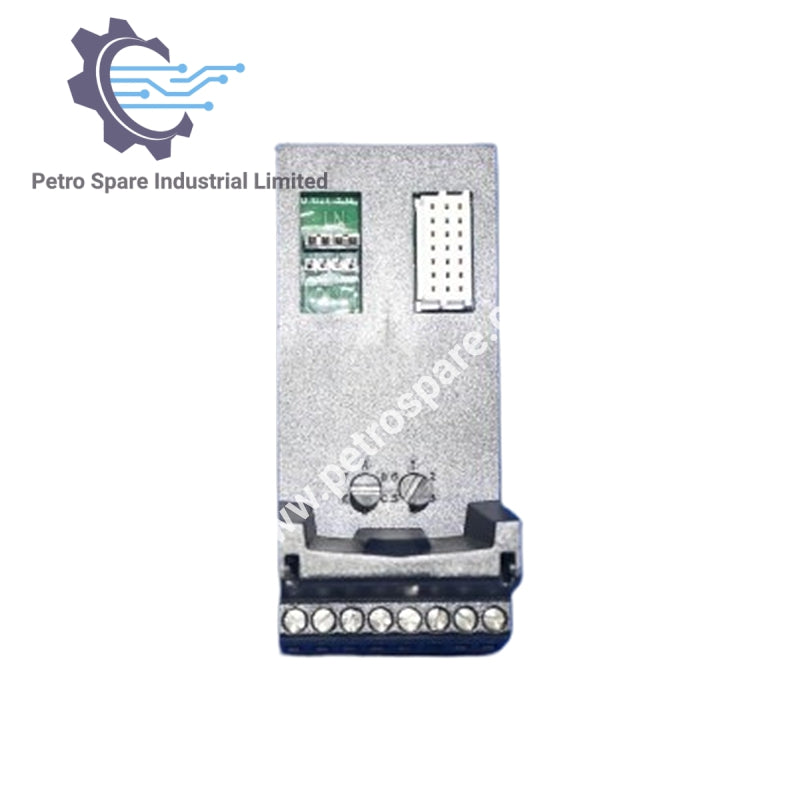

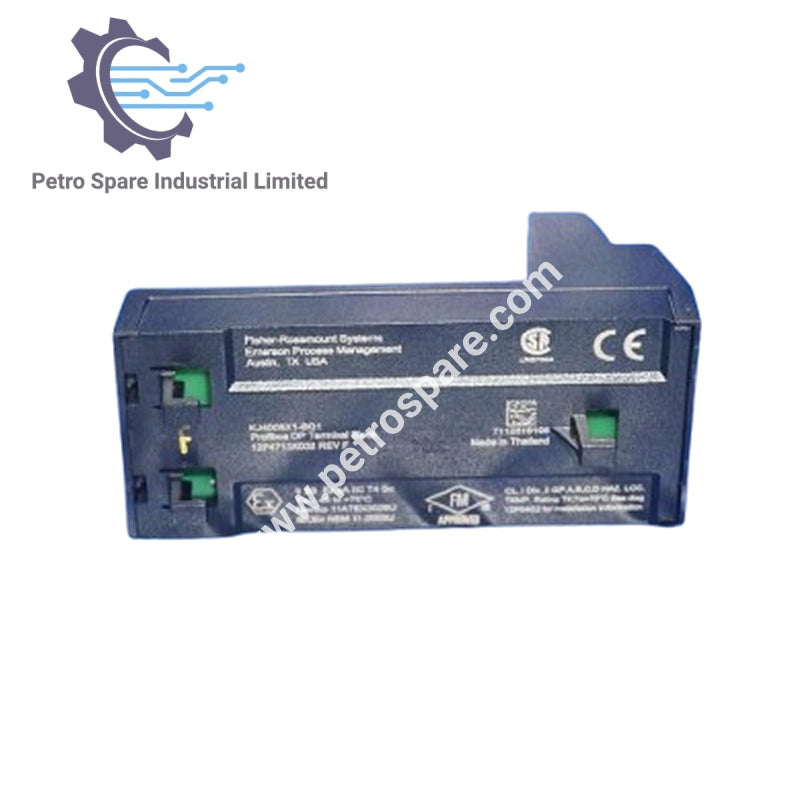

KJ4006X1-BQ1

Overview

• Model: KJ4006X1-BQ1

• Type: Profibus DP Terminal Block

• Manufacturer: Emerson

• Application: Provides Profibus DP connectivity for DeltaV systems, enabling field device integration

Power Specification

• Field Circuit Power: 5 VDC, 100 mA

Environmental Specification

• Ambient Temperature: -40 to +70 °C

• Shock Resistance: 10 g, ½ sinewave for 11 ms

• Vibration Resistance:

  • 1 mm peak-to-peak from 2–13.2 Hz

  • 0.7 g from 13.2–150 Hz

• Airborne Contaminants: ISA-S71.04-1985 Class G3

• Relative Humidity: 5–95% non-condensing

• Terminal Block Key Position: Set according to I/O card installed

---
