CC-TDOD61

Product Overview

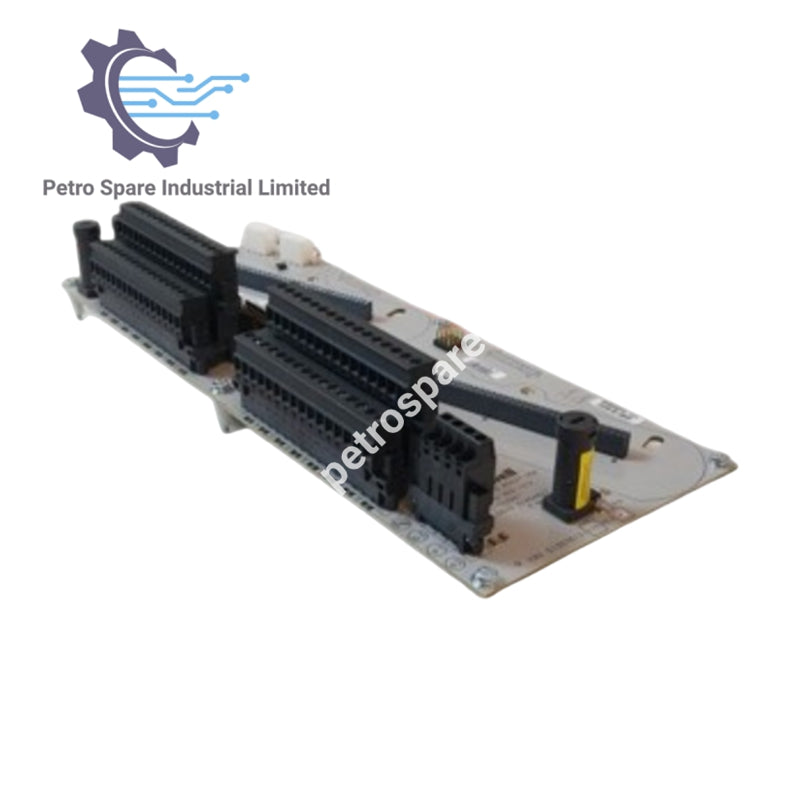

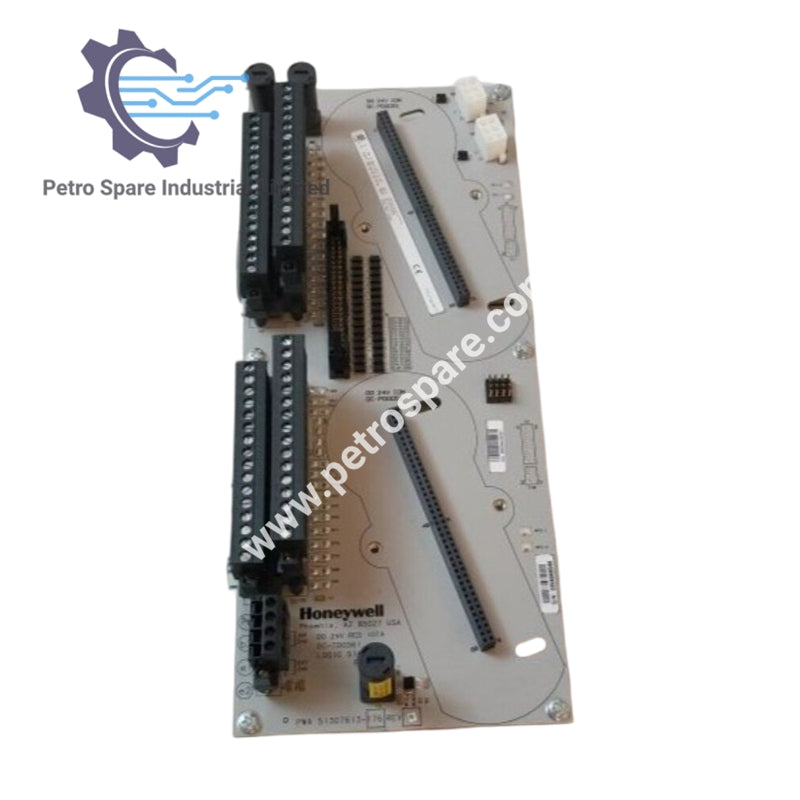

 DC-TDOD61-The Honeywell 8C-TDOD61 is a redundant 32-channel digital output IOTA module for Series 8 systems.

Technical Specifications

• Output Channels: 32

• Output Type: Sourcing

• Voltage Rating: 24VDC (max load voltage: 30VDC)

• Load Current: 100mA per channel maximum

• Module Current Rating: 105mA

• On-State Voltage: 24VDC typical at ≤0.1A

• Off-State Voltage: 0VDC

• Off-State Leakage Current: ≤5μA

• Turn-On/Turn-Off Time: ≤10ms

• Galvanic Isolation: 1000VAC RMS (system-to-field, external power only)

• Operating Temperature: 0 to 60°C

• Storage Temperature: -40 to 85°C

• Short-Circuit Protection: One fuse per 8 channels (4 fuses total)

• Certifications: Class I, Division 2, Groups A, B, C, D; T4; Ex nA II T4
