6ES7414-3EM06-0AB0

Description

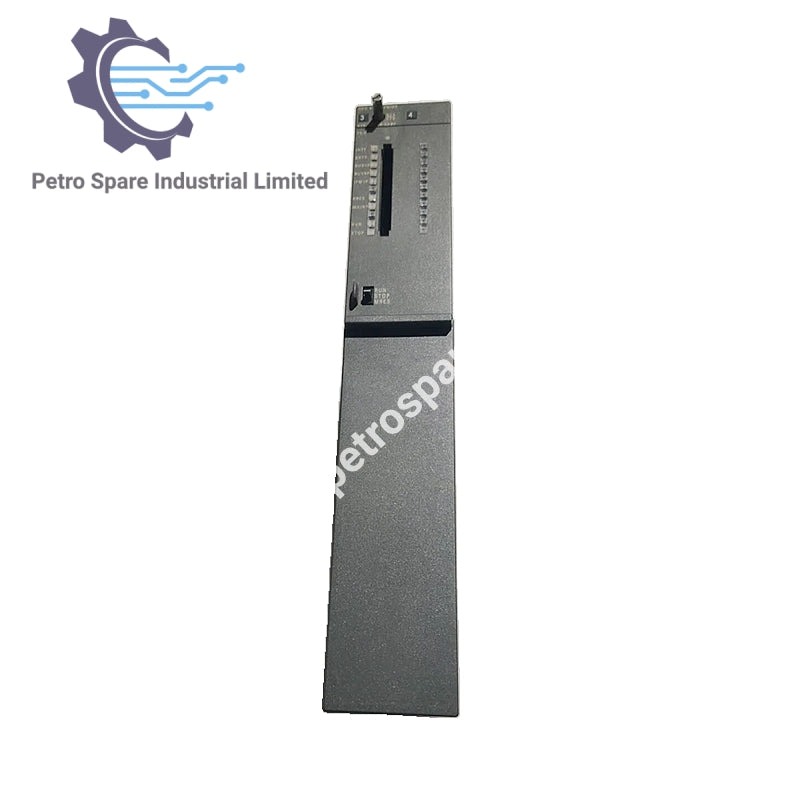

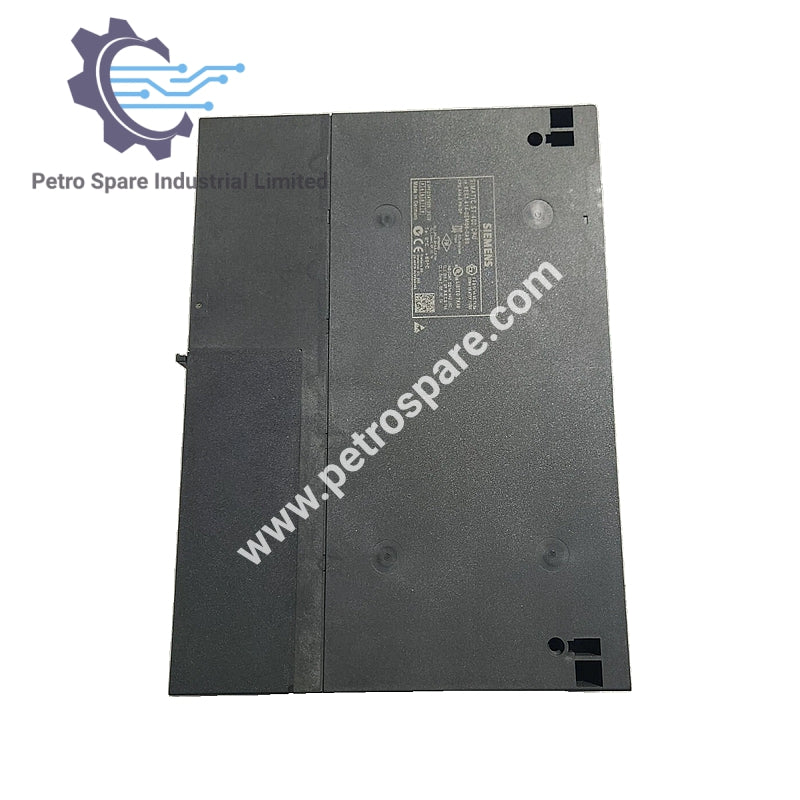

6ES7414-3EM06-0AB0 is a Siemens SIMATIC S7-400 CPU 414-3 PN/DP central processing unit with 4 MB work memory, multiple communication interfaces, and support for redundant and high-performance automation tasks.

Identity

• Part Number: 6ES7414-3EM06-0AB0

• Series: SIMATIC S7-400

• Type: Central Processing Unit

• Designation: CPU 414-3 PN/DP

• Hardware Version: 01

• Firmware Version: V6.0

Engineering

• Programming: STEP 7 V5.5+, iMap V3.0 + Add-on V3.0 SP5+

• CiR (Configuration in RUN): Supported

• CiR Sync Time: 100 ms (basic load), 15 µs per I/O byte

Interfaces

• MPI/DP: 12 Mbit/s (X1)

• Ethernet/Profinet: (X5)

• IF964-DP: Plug-in (IF1)

Electrical Characteristics

• Supply Voltage: Via system power supply (not direct 24 V DC)

• Power Loss: Typ. 6.5 W, Max. 7.5 W

Mechanical Characteristics

• Dimensions: W 50 mm × H 290 mm × D 219 mm

• Weight: 900 g

Memory

• Type: RAM

• Work Memory: 4 MB (2 MB program, 2 MB data)

• Load Memory:

  • FEPROM expandable with Memory Card (up to 64 MB)

  • RAM expandable with Memory Card (up to 64 MB)

  • Integrated RAM max. 512 KB

• Backup: Battery-supported, all data retained

---
