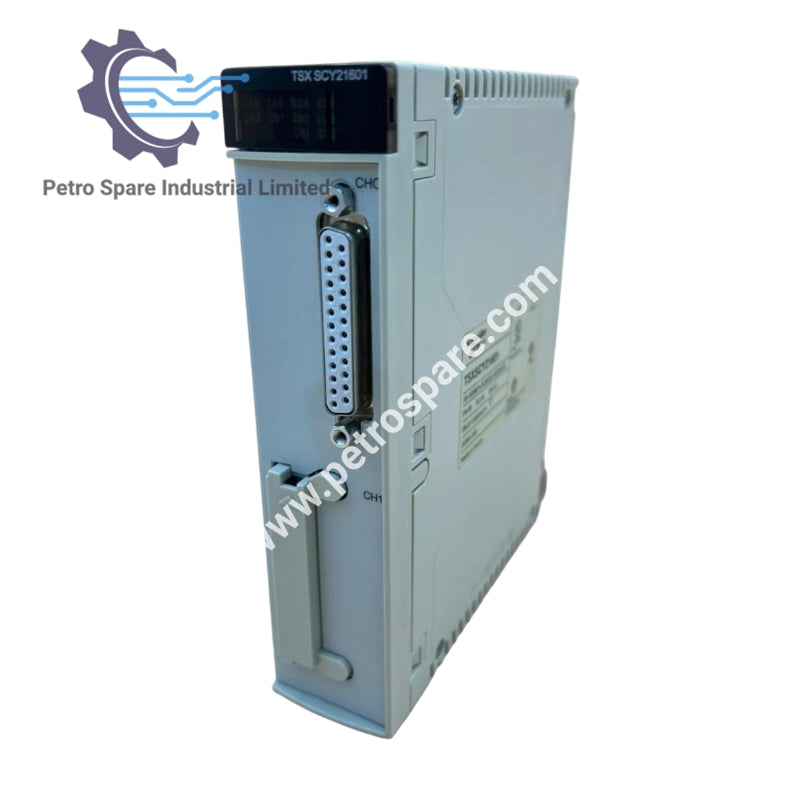

TSXSCY21601

Product Overview

TSXSCY21601 is a communication module for the Modicon Premium Automation platform.

Technical Specifications

Product Type: Communication module
Software: Unity Pro
Bus Structure: Heterogeneous industrial bus

Compatibility: Atrium, Premium
Access Method: Master/Slave type
Integrated Connection: 1 slot for PCMCIA type III card, 1 serial link 1 SUB-D 25
Protocol: Multiprotocol
Port Support: RS485 isolated
Transmission Mode: Asynchronous in baseband
Transmission Frame: RTU/ASCII
Transmission Rate: 1.2–19.2 kbit/s
Cabling: 2 twisted shielded pairs
Number of Devices: 28
Address Range: 0–97
Bus Length: 1300 m (Modbus)
Tap Links Length: 15 m
Requests: 120 words per request, 1920 bits per request
Control Parameter: One CRC 16 on each frame

Operating Temperature: 0–60 °C
Storage Temperature: -25–70 °C

---
