CC-PD0D51

Product Overview

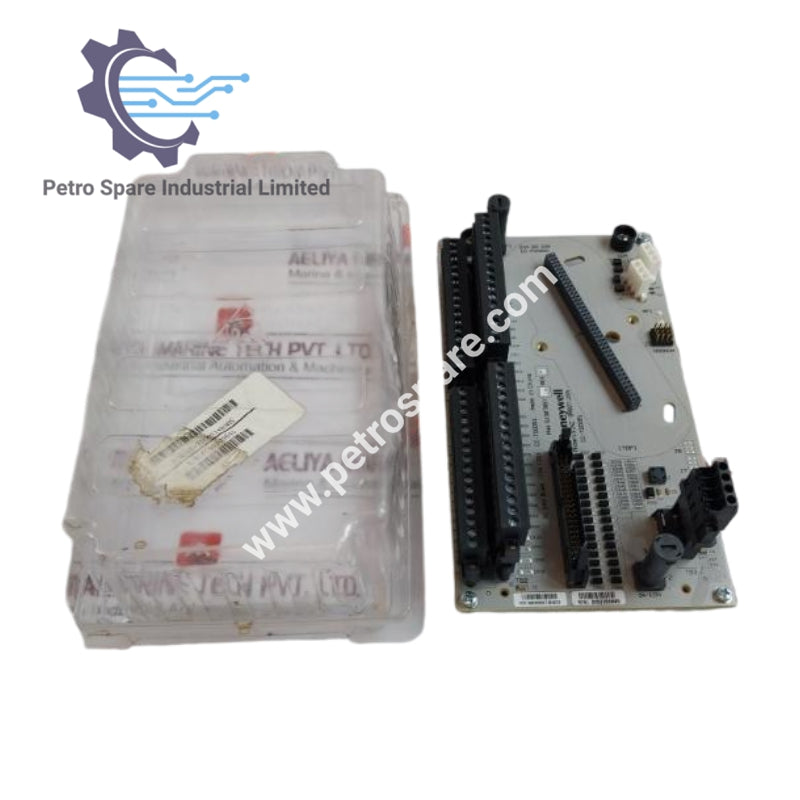

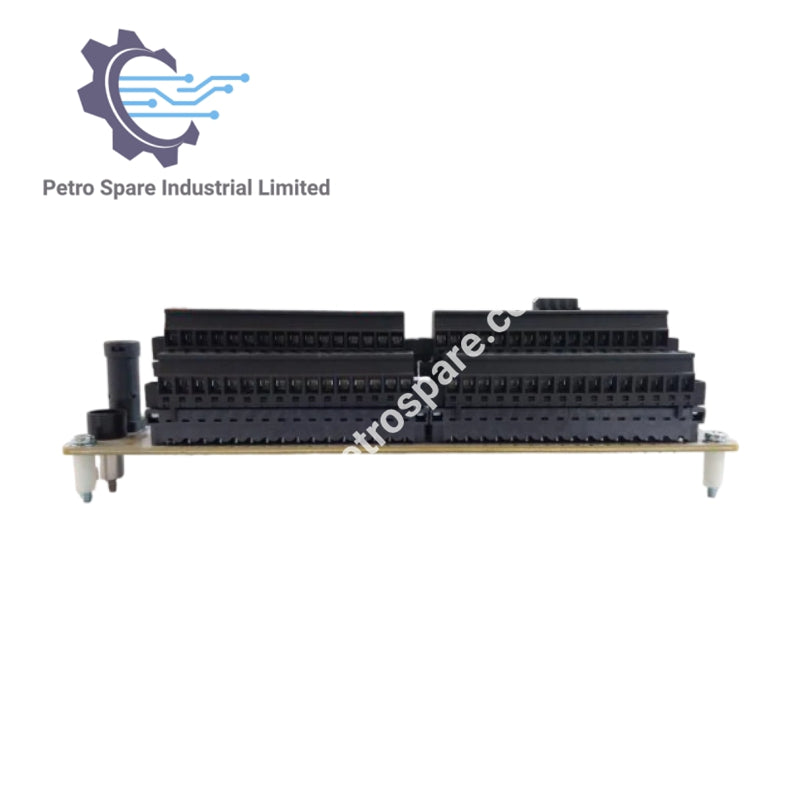

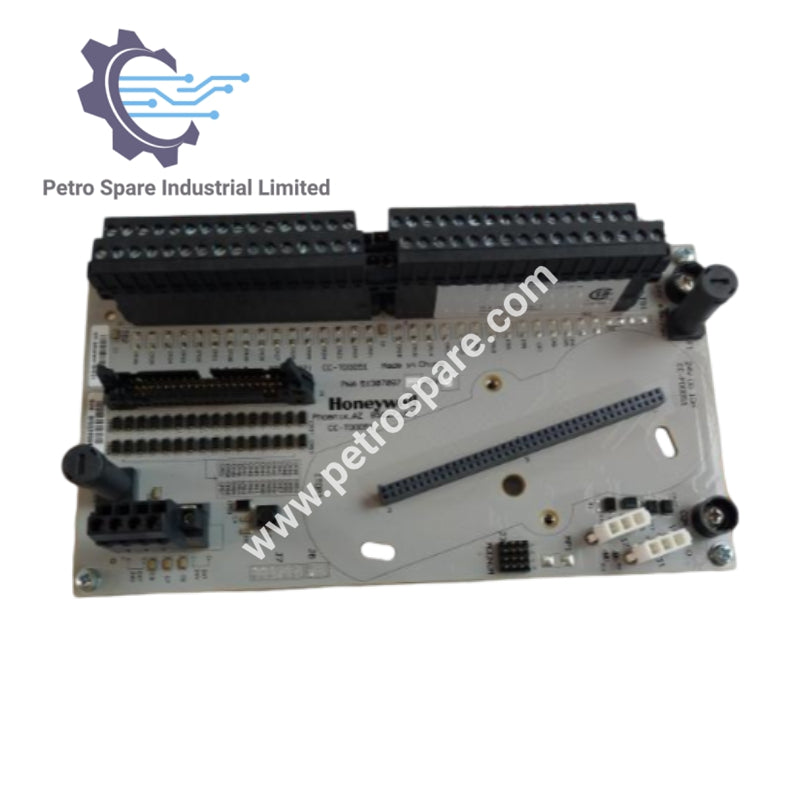

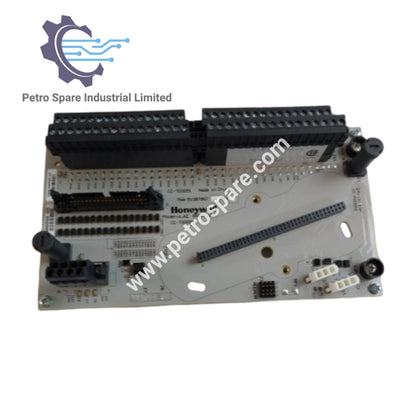

The CC-PDOD51 is a Series C Digital Output Module by Honeywell.

Technical Specifications

• Input/Output Model: CC-PDOD51-24Volt Digital Output, Field Isolated, Bussed Output, Coated

• IOTA Model Numbers: CC-TDOD51, Non-Redundant

• Output Channels: 32

• Output Type: SINK (Open Drain)

• Load Voltage: 30 VDC Maximum

• Load Current: 0.1A per channel (Max)

• Galvanic Isolation: 1000 VAC RMS for System-to-Field isolation (user-supplied field power)

• On-State Voltage: 0 VDC (load current @ 0.1A max)

• Off-State Voltage: 24 V (typical)

• Off-State Leak Current: 100 μA (max)

• Turn-On/Turn-Off Time: 10 ms (max)

• Gap of Output to Field on Switchover: None (0 ms, applies to redundancy only)

• Shipping Weight: 3 kg
