1606-XLS240-UPS

Overview

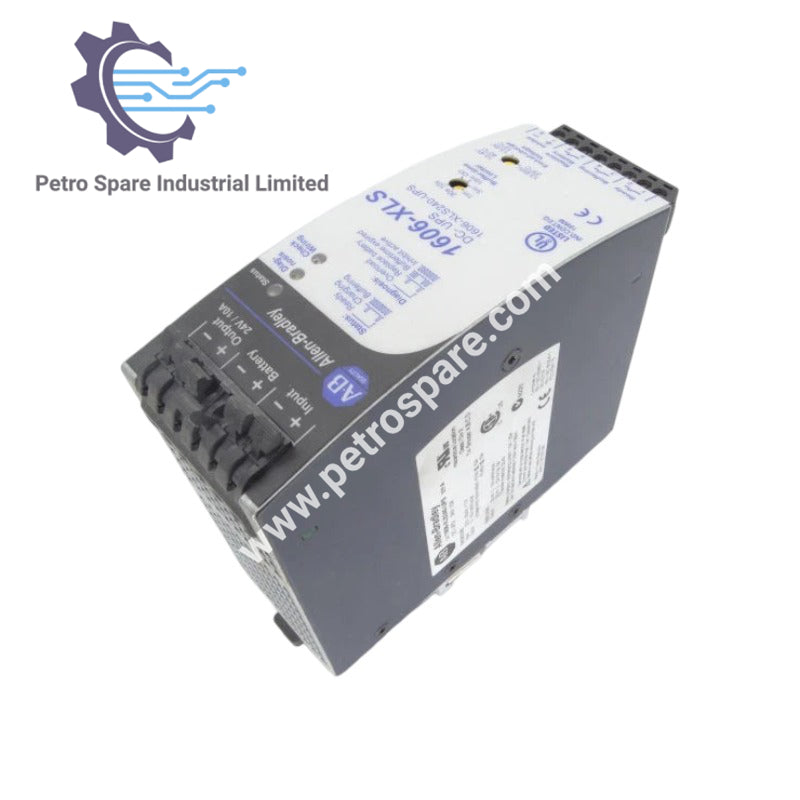

1606-XLS240-UPS Allen-Bradley Bulletin 1606 Switched Mode Power Supply is a DC UPS (uninterruptible power supply) module designed to provide reliable buffering and backup for 24 VDC loads in industrial automation systems.

Electrical Ratings

• Input Voltage (Nominal): 24 V DC

• Input Voltage Range: 22.5–30 V DC

• Output Voltage (Typical): 0.23 V lower than input voltage

  • Normal Mode: 22.25 V

  • Buffer Mode: 22.25 V @ 10 A

• Output Current:

  • Normal Mode: ≥ 15 A

  • Buffer Mode: ≥ 10 A

• Buffer Time (typical):

  • 6 min 45 sec with 7 Ah battery module @ 10 A

  • 55 min with 26 Ah battery module @ 10 A

Battery Compatibility

• Allowed Batteries: 3.9 Ah to 40 Ah VRLA lead-acid

Environmental Ratings

• Operating Temperature Range: -25 °C to +70 °C

• Derating: 0.43 A/°C from +60 °C to +70 °C (normal mode)

Mechanical Ratings

• Dimensions (W × H × D): 49 × 124 × 117 mm

• Mounting: DIN rail

---
