18745-04

Overview

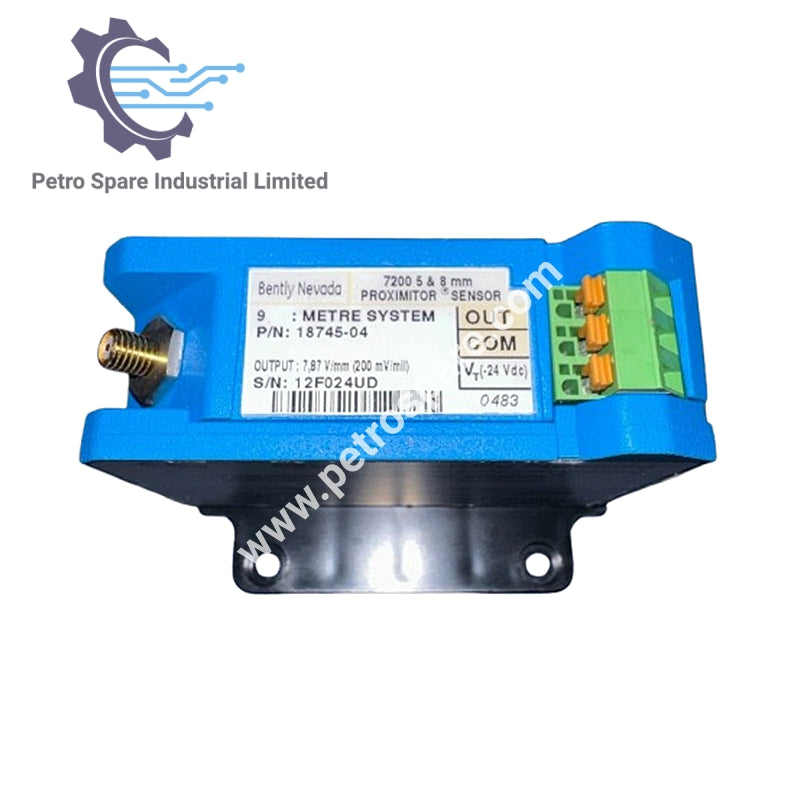

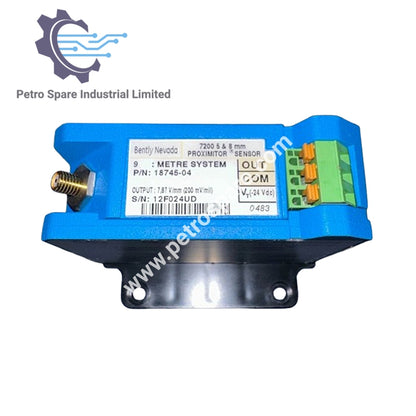

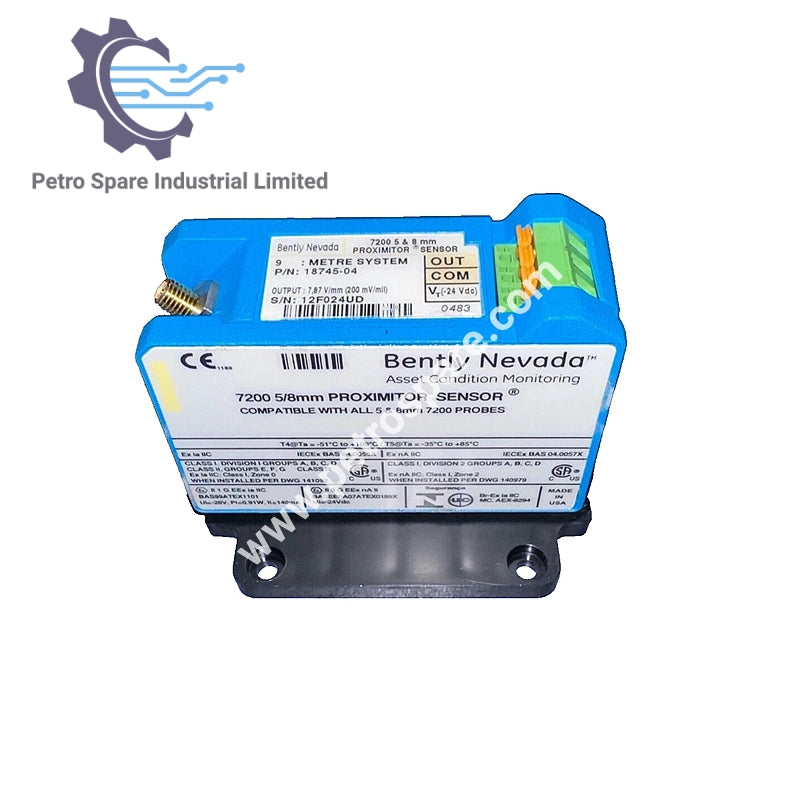

18745-04 is a Bently Nevada 7200 series Proximitor sensor for 5 mm probes, supporting a 9 m combined probe and extension cable system length, designed for non-contact gap-to-voltage measurement.

Identification

• Part number: 18745-04

• Series: 7200

• Type: Sensor

• Probe diameter: 5 mm

Electrical Data

• Voltage rating: –18 to –24 V DC

• Scale factor: 200 mV/mil

• Frequency response: 0 Hz to 10 kHz

Cable & Connection

• Cable length: 9 m

• Cable length (ft): 29.5 ft

Measurement

• Mode: Non-contacting

• Function: Gap-to-voltage transducer

• Capability: Static and dynamic distance measurement

Operating Conditions

• Temperature range: –50 to +100 °C

Dimensions

• Height: 81.3 mm

• Width: 61.2 mm

• Depth: 63.5 mm

---
