ISI202

Product Overview

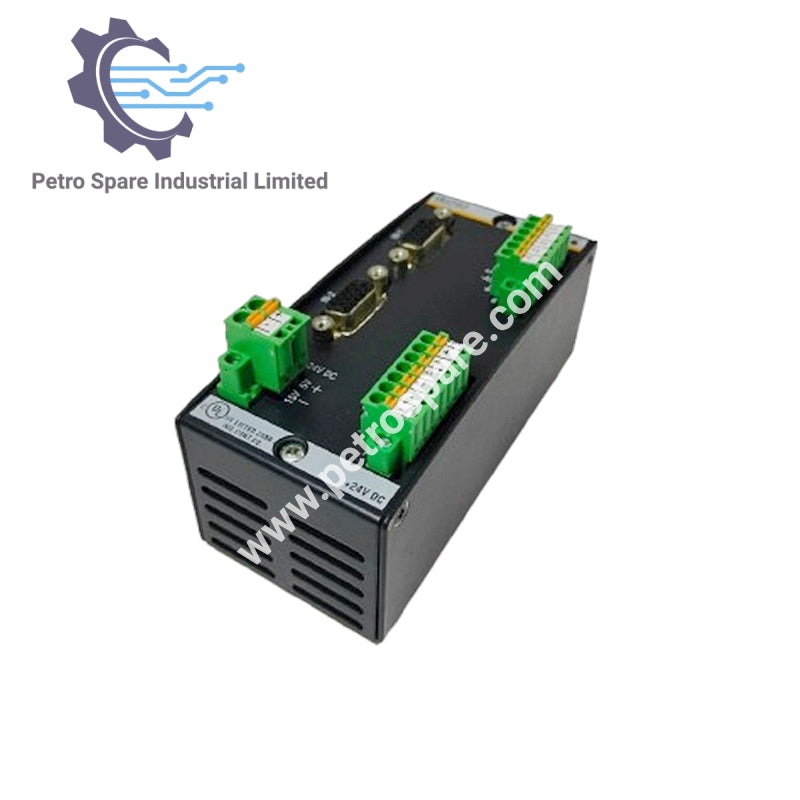

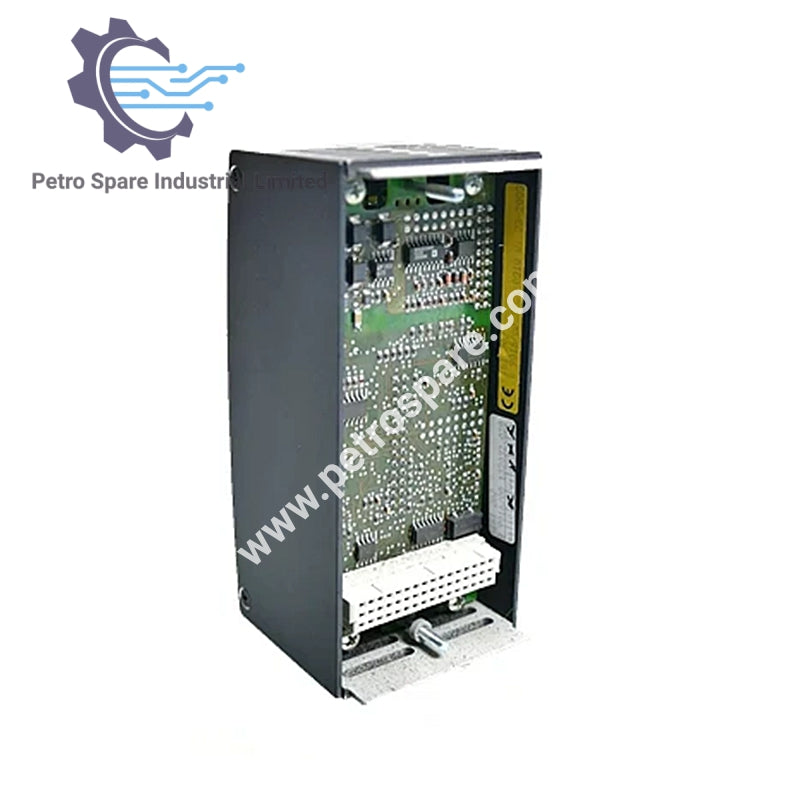

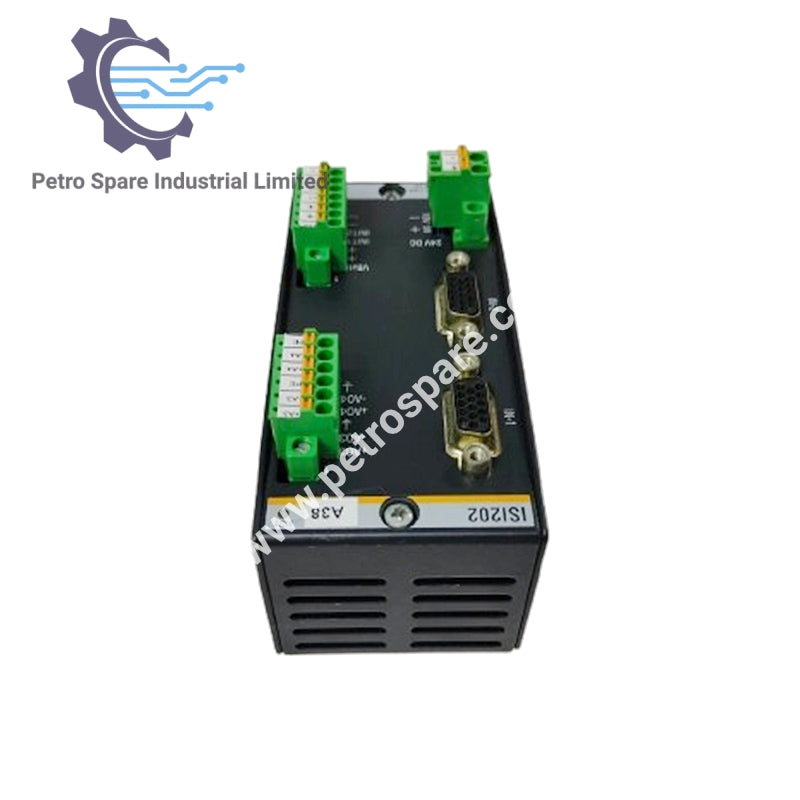

ISI202 is a Bachmann encoder interface module with 2 input channels and 2 analog outputs, supporting incremental and SSI signals up to 1 MHz.

Identification

• Part number: ISI202

• Type: Encoder Interface Module

• Quantity: 2

Channel Configuration

• Input channels: 2

• Analog outputs: 2 (±10 V, 12 bits)

• Counter resolution: 24 bits (extendable to 32 bits via software)

Signal Handling

• Input signals: A–, A+, B–, B+, N–, N+

• Evaluation modes: 1/2/4-edge or pulse direction

• Input frequency: 1 MHz max

Functional Capabilities

• Supported protocols: INC / SSI

• Features: Interrupt, buffering, encoder supply

---
