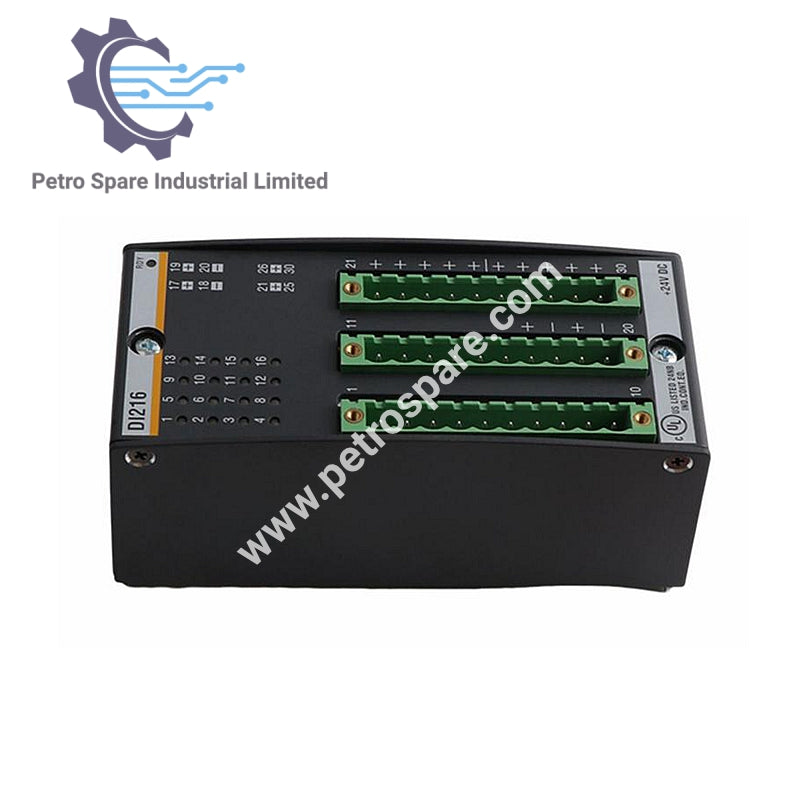

DI216

Overview

DI216 is a Bachmann digital input module with 16 channels, isolated in 2 groups, supporting interrupt functionality and fast signal acquisition for automation systems.

Identification

• Part number: DI216

• Type: Digital Input Module

• Inputs: 16

• Groups: 2 (1–8 / 9–16)

Electrical Data

• Input voltage: 24 V DC nominal

• Input resistance: 6 kΩ approx.

• Low level: –34 to +5 V

• High level: +15 to +34 V

• Current consumption (via BS2xx): 70 mA at 5 V

Timing

• Input delay (filter): 3 ms

• Input delay (normal): 50 µs

• Interrupt inputs: 2 max

Isolation

• System isolation: 500 V

• Channel isolation: 500 V

---
