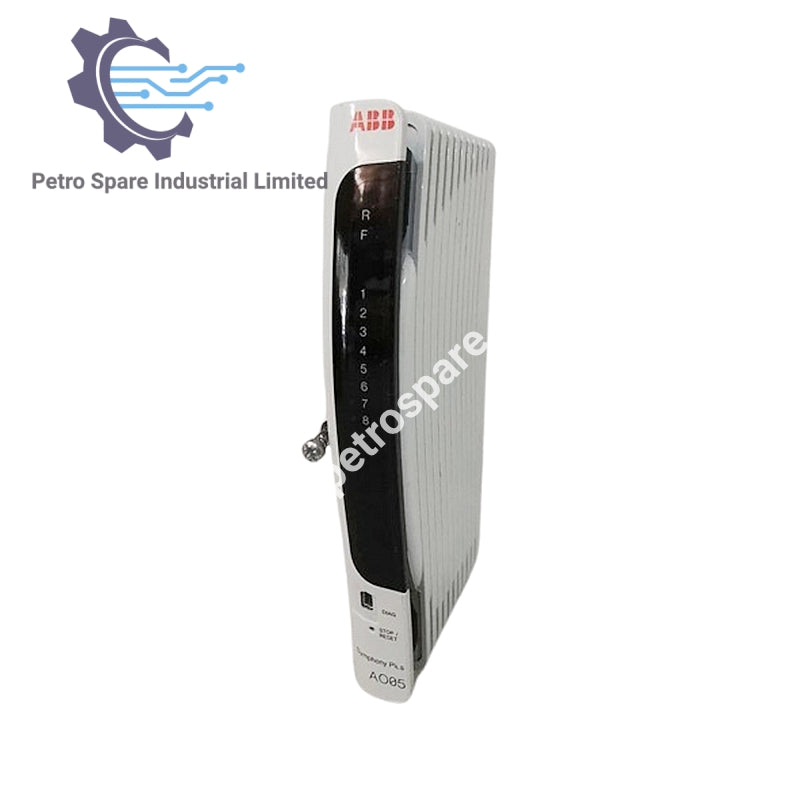

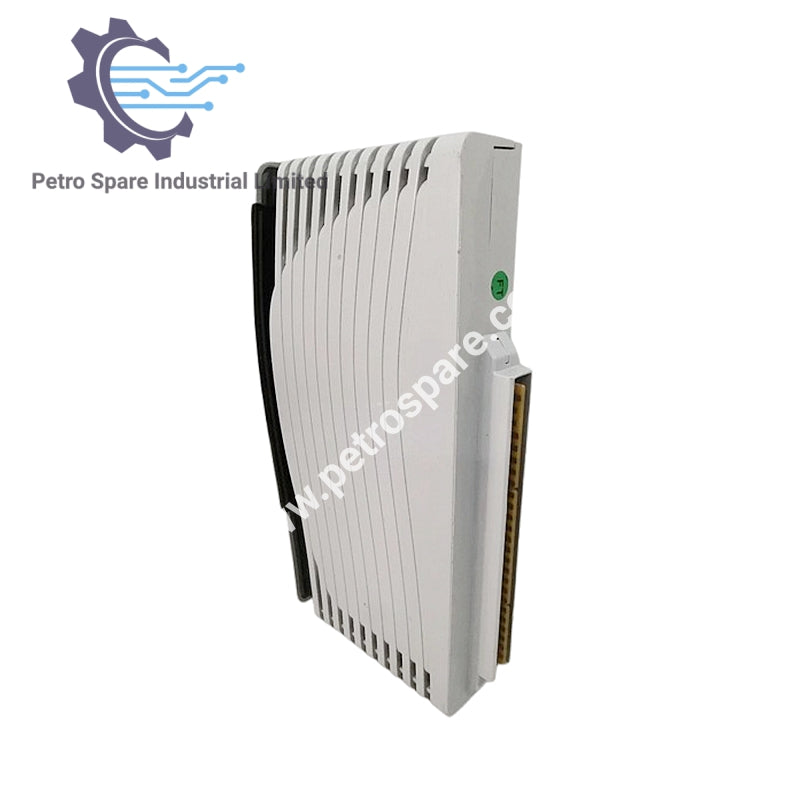

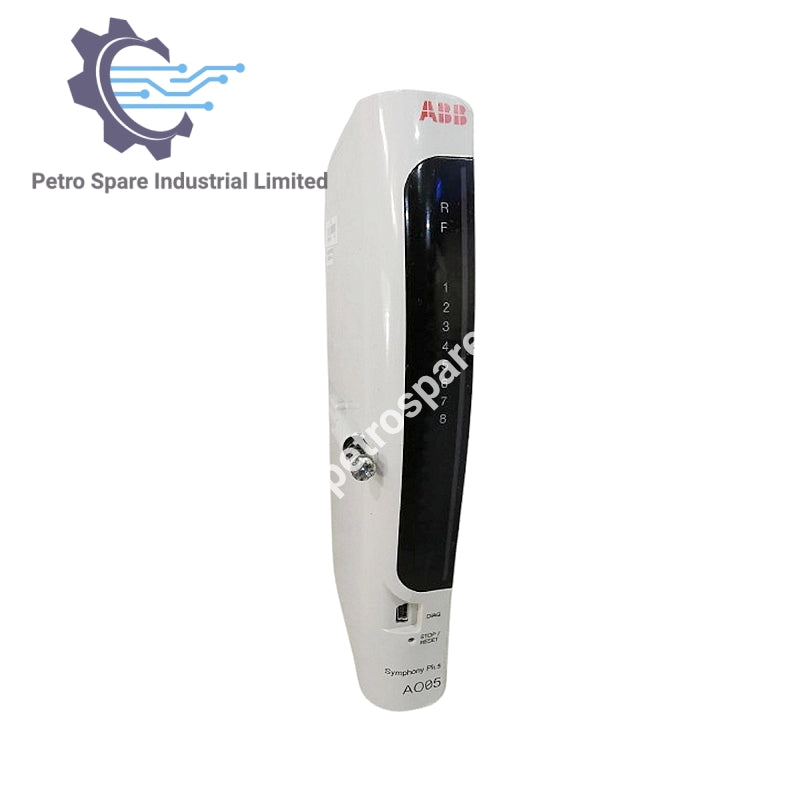

AO05

Overview

AO05 is an ABB SD Series analog output module with 8 channels, supporting 4…20 mA and 1…+5 V DC signals, featuring integrated HART communication for advanced process control.

Identification

• Article number: AO05

• Type: Analog Output Module

• Form factor: Standard (190 mm)

• Mounting: Horizontal row or vertical column

• Life cycle status: Active

Channel & Signal Data

• Number of channels: 8

• Signal specification: 4…20 mA, 1…+5 V DC

• Signal type: AO with HART

• HART: Yes

• SOE: No

• Redundancy: No

Reliability

• MTBF (MIL-HDBK-217-FN2): 68,550 h

• MTTR: 1 h

Dimensions

• Width: 27 mm

• Depth: 106 mm

• Height: 190 mm

• Weight: 360 g

---
