AAV542-S50

Product Overview

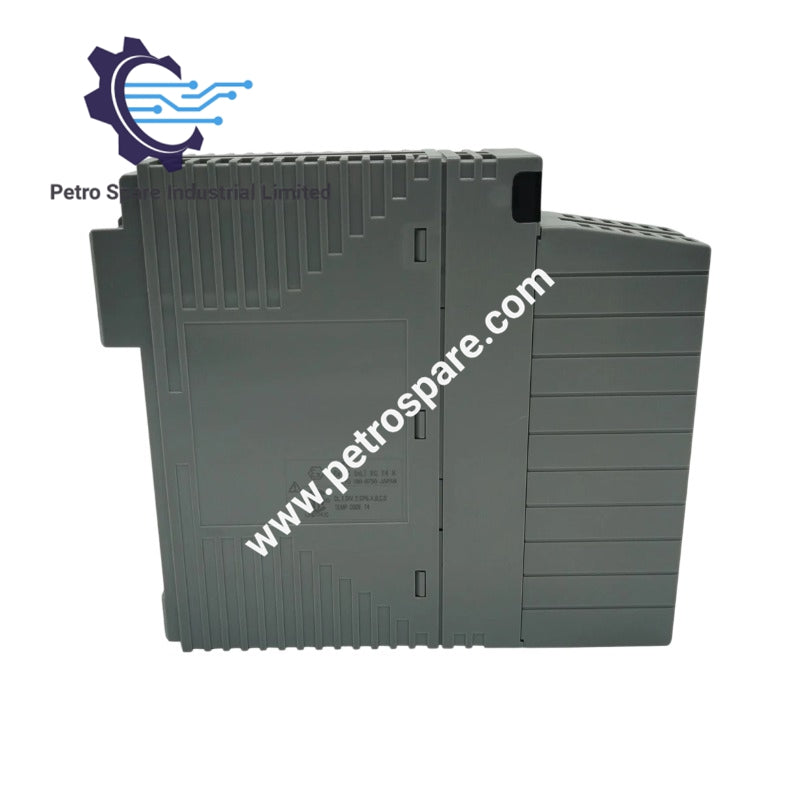

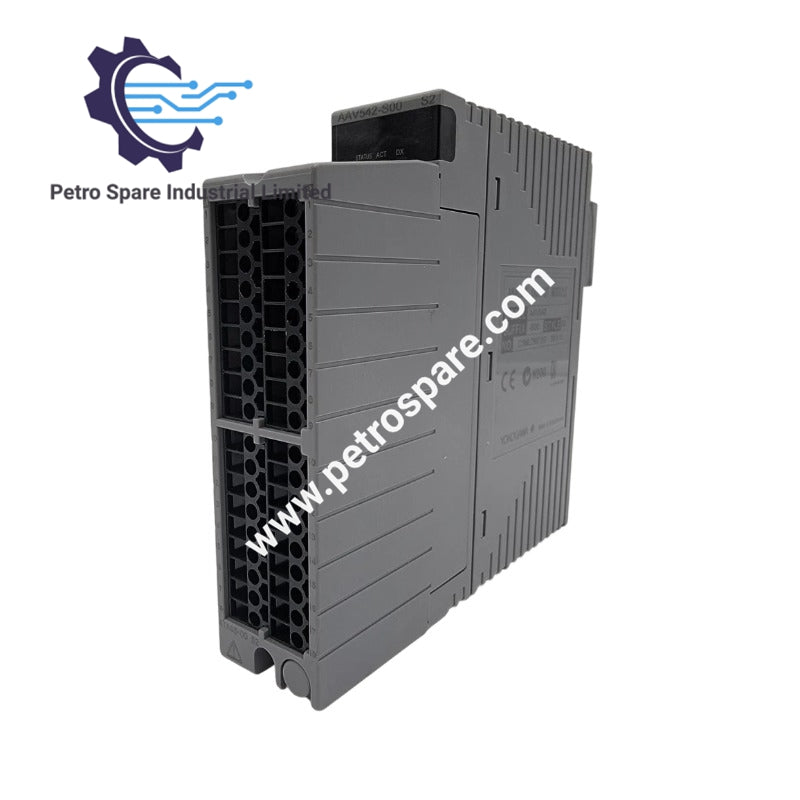

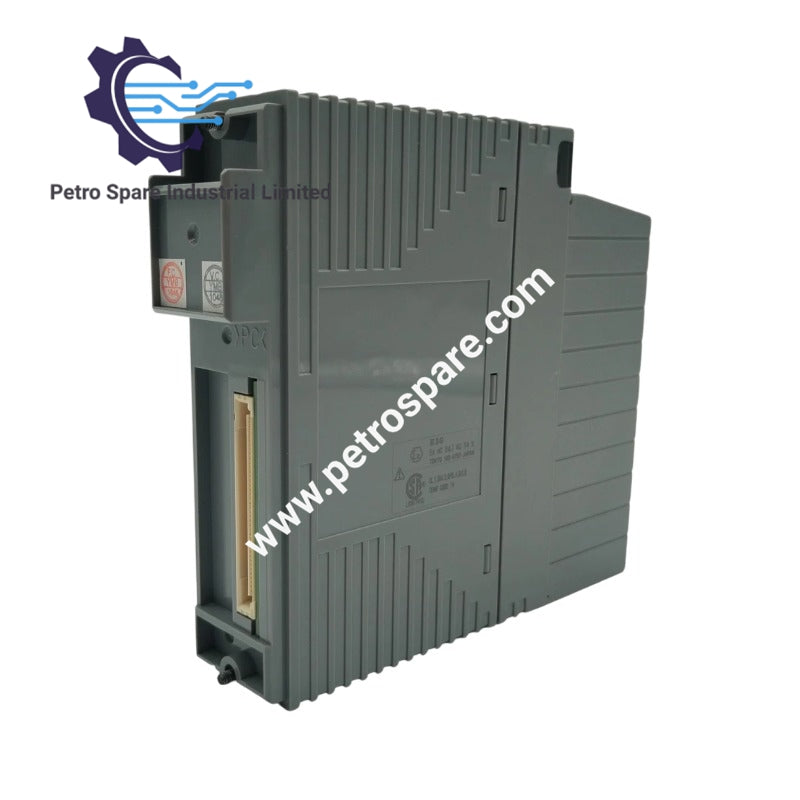

Yokogawa AAV542-S50 is a high-performance analog voltage output module designed for Yokogawa CENTUM VP and ProSafe-RS FIO systems.

Suffix Codes
-S Standard Type
 5 With no explosion protection
 E With explosion protection
 0 Basic type
 3 With ISA Standard G3 option and temperature (-20 to 70 °C) option

Technical Specifications

Electrical Specifications

• Number of Channels: 16 channels

• Output Signal Range: -10 V to +10 V DC

• Allowable Load Resistance: ≥ 10 kΩ

• Maximum Current Consumption: 450 mA @ 5 V DC

Performance

• Accuracy: ±0.3% of full scale or ±12 mV (whichever is greater)

• Data Update Period: 10 ms

• Output Step Response Time: 40 ms

• Temperature Drift: ±0.1% per 10°C or ±10 mV per 10°C (whichever is greater)

Physical Specifications

• Weight: Approx. 0.2 kg

• Dimensions: 130 mm × 107.5 mm × 32.8 mm

Interface & Features

• External Connection Options: Pressure clamp terminal block; KS cable interface adapter (e.g., ATK4A-00); MIL connector cable

• Redundancy Support: Dual-redundant configuration supported

• Installation Feature: Hot-swappable module design for replacement without system shutdown

---
