BMEAHO0412

Product overview

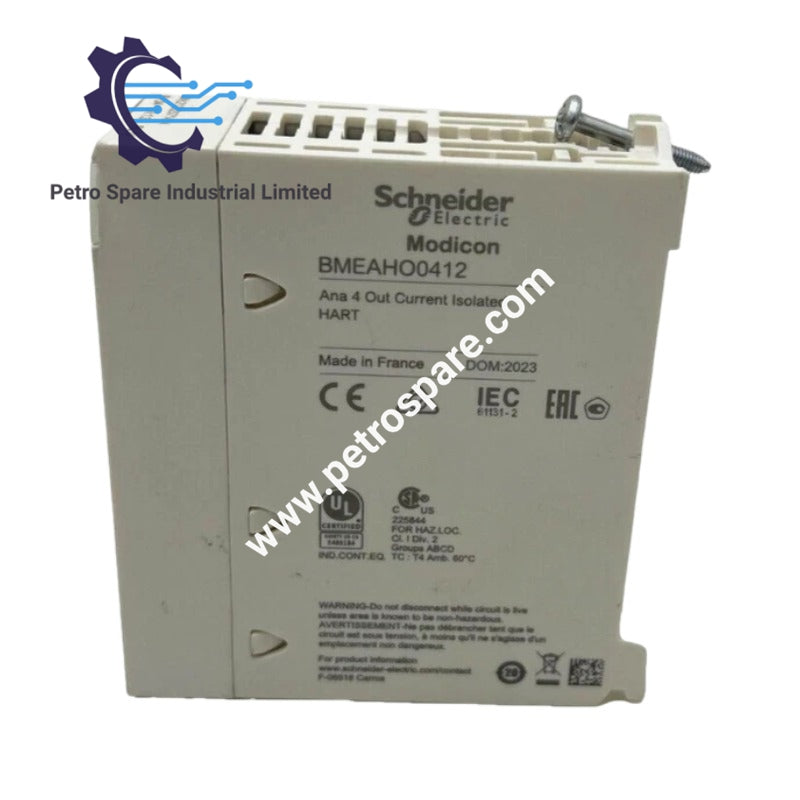

BMEAHO0412 analog output module Modicon X80 is a 4-channel HART-capable isolated current output module designed for precise 4–20 mA signal transmission in distributed I/O systems.

Technical specifications

• Application specific I/O: HART

• Analog output number: 4 channels
• Analog output type: Current output 4–20 mA
• Analogue output resolution: 15 bits + sign
• Topology: Point-to-point
• I/O functions: I/O mapping support

• Isolation between channels: Galvanically isolated
• Isolation voltage: 1000 V DC (60 s, between channels), 1400 V DC (channels to bus and ground)

• Measurement error: 0.1% full scale at 25 °C, 0.2% full scale at 0–60 °C
• Temperature drift: 45 ppm/°C

• Load impedance: 600 Ω (0–20 mA), 570 Ω (0–21 mA)
• Diagnostics: Broken wire detection

• Electrical connection: 20-way terminal block, Telefast compatible
• Compatible platforms: BMXFTB20 terminal block, ABE7CPA21, BMEP58 processor, BMEXBP backplane, BMECRA31210 head module
• Product weight: 0.223 kg

---
