170AAO12000

Product Overview

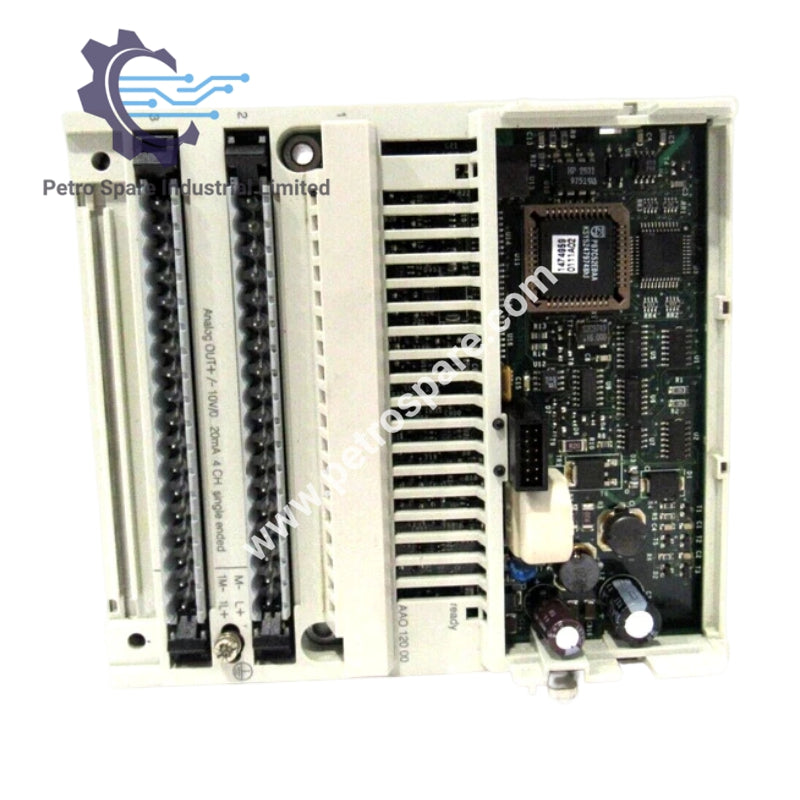

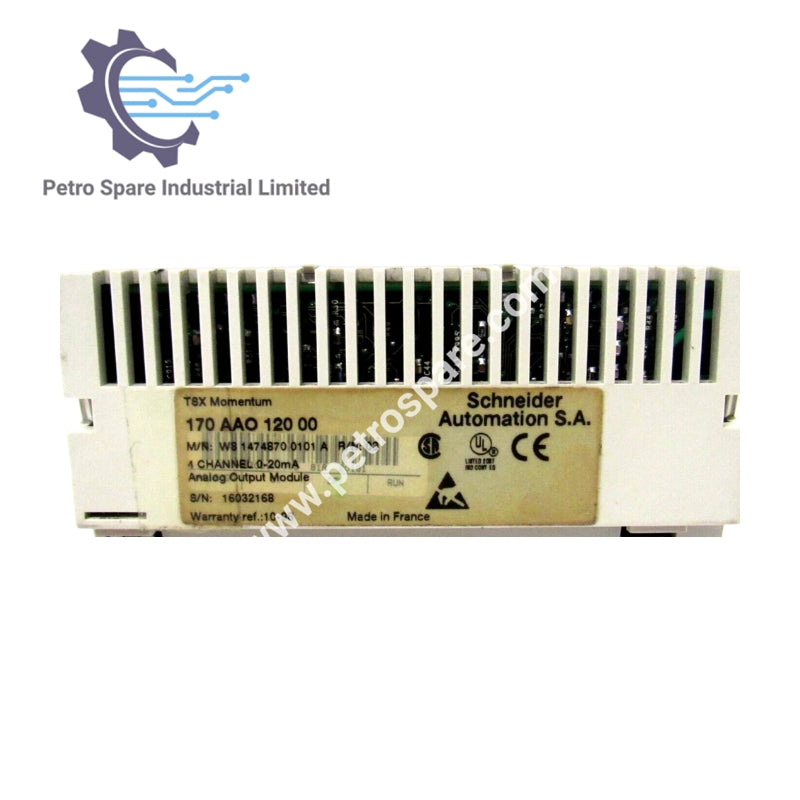

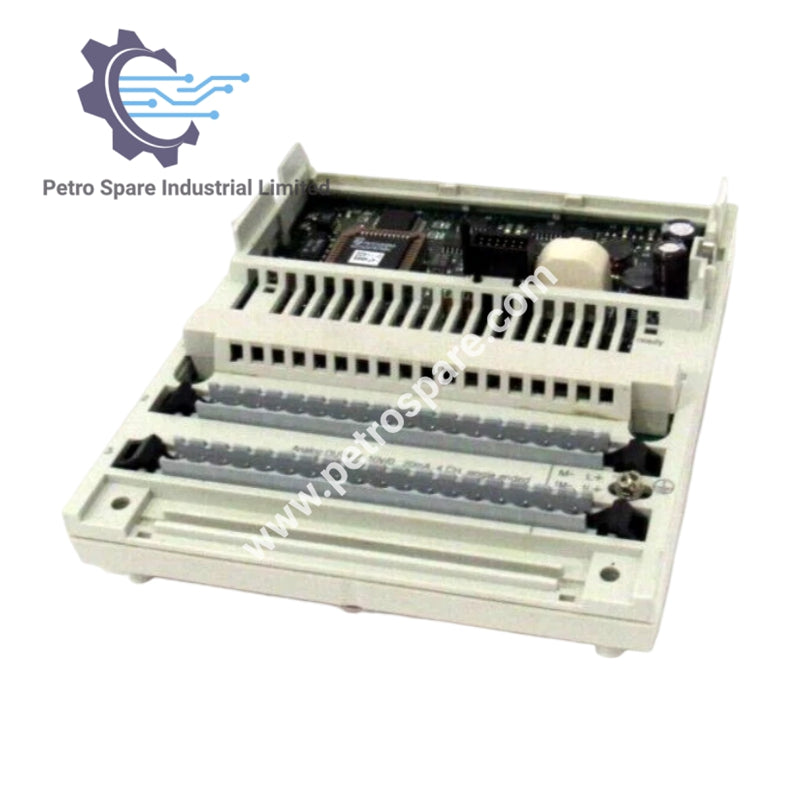

170AAO12000 is a distributed analog output module for Modicon Momentum providing 4 outputs with 0–20 mA range.

Technical Specifications

Main:
• Range of product: Modicon Momentum automation platform
• Product or component type: Analogue output base

Complementary:
• Analogue output number: 4
• Data format: Full 16 bits signed
• Analogue output range: ±10 V (12 bits + sign) ≥ 1 kΩ, 0–20 mA (12 bits + sign) ≤ 0.6 kΩ
• Load capacitance: < 1 µF
• Absolute accuracy error: ±0.2% FS ±10 V @ 25 °C, ±0.25% FS ±10 V @ 60 °C, ±0.3% FS 0–20 mA @ 25 °C, ±0.4% FS 0–20 mA @ 60 °C
• Temperature drift: 10 ‰FS/°C ±10 V @ 60 °C, 30 ‰FS/°C 0–20 mA @ 60 °C
• Update time: < 2 ms
• Full scale: ±10 V, 0–20 mA 2 mA
• Fail state: Hold, Reset to full scale, Reset to zero
• Isolation between channels and ground: 500 V AC for 1 minute
• Power dissipation: ≤ 8.5 W
• Protection type: Internal 2 A slow-blow
• Output short-circuit protection: With in voltage circuit

---
