TSXASY800

Product Overview

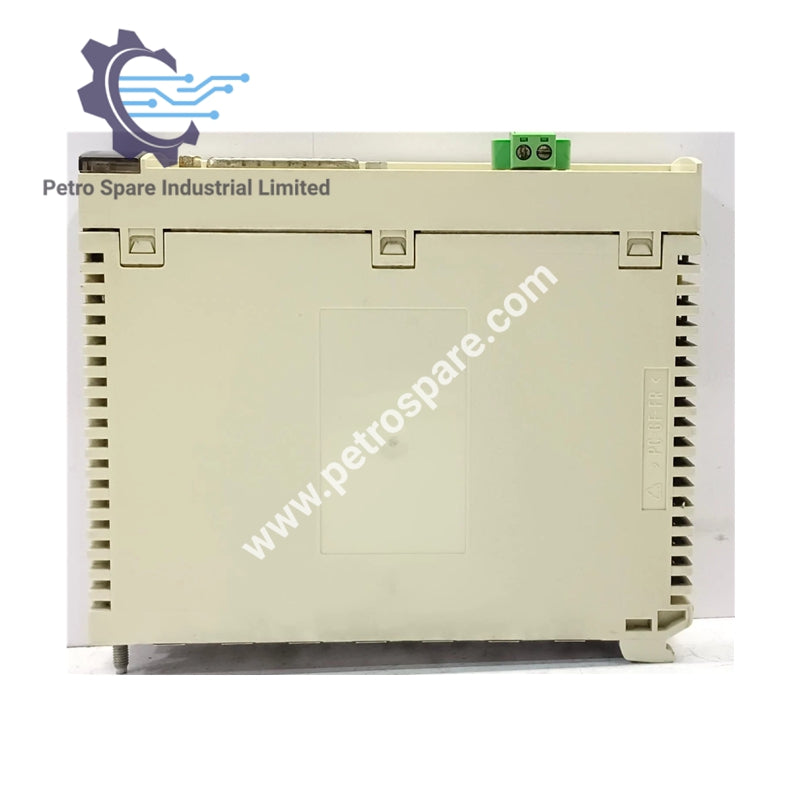

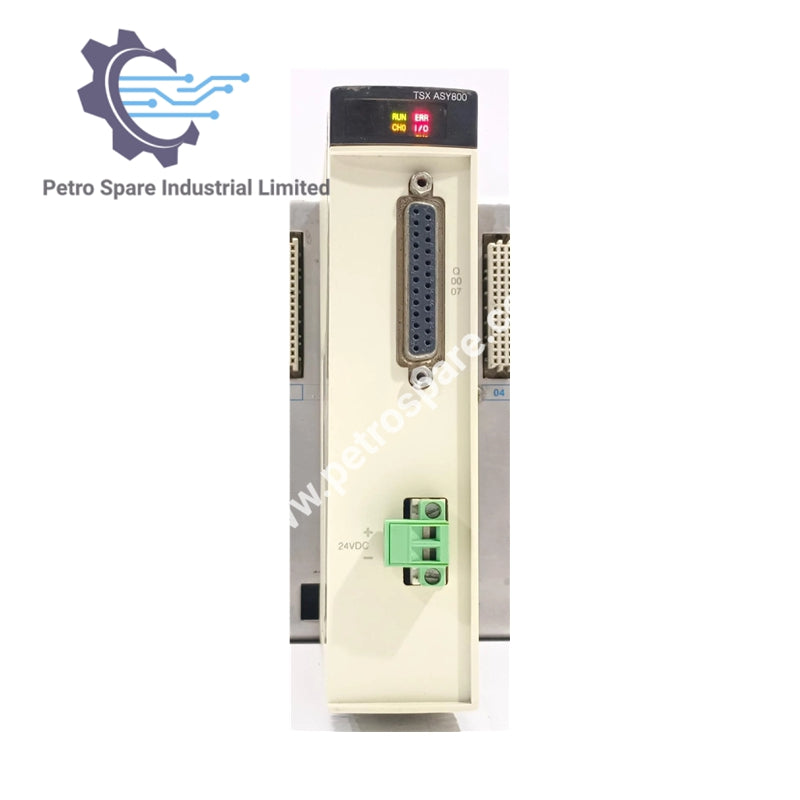

TSXASY800 is an analog output module from the Modicon Premium Automation platform.

Technical Specifications

• Product or Component Type: Analog output module
• Analog Output Number: 8
• Analog Output Type: Current 0…20 mA, Current 4…20 mA, Voltage ±10 V
• Analog/Digital Conversion: 13 bits + sign ±10 V, 13 bits 0…20 mA, 13 bits 4…20 mA
• Conversion Time: 5 ms
• Measurement Resolution: 1.28 mV ±10 V, 2.56 µA 0…20 mA, 2.56 µA 4…20 mA
• Electrical Connection: 1 SUB-D 25 connector
• Measurement Error: 0.14% full scale ±10 V at 25 °C, 0.21% full scale 0…20 mA at 25 °C, 0.21% full scale 4…20 mA at 25 °C, 0.28% full scale ±10 V 0…60 °C, 0.52% full scale 0…20 mA 0…60 °C, 0.52% full scale 4…20 mA 0…60 °C
• Isolation: Between channels: common point; Between channels and bus: 1000 Vrms; Between channels and ground: 1000 Vrms
• Protection Type: Overload protection, Short-circuit protection
• Output Voltage Limits: ≤30 V
• Load Impedance: <600 Ω for 0…20 mA and 4…20 mA, >1000 Ω for ±10 V
• Load Inductance: <300 µH
• Load Capacitance: <0.1 µF
• Current Consumption: 200 mA 5 V DC, 300 mA 24 V DC
• Module Format: Standard
• Ambient Air Temperature for Operation: 0…60 °C
• Ambient Air Temperature for Storage: -25…70 °C
• Relative Humidity: 10…95% without condensation for operation, 5…95% without condensation for storage
• Operating Altitude: 0…2000 m
• Protective Treatment: TC
• IP Degree of Protection: IP20
• Pollution Degree: 2
