6ES7232-4HD32-0XB0

Overview

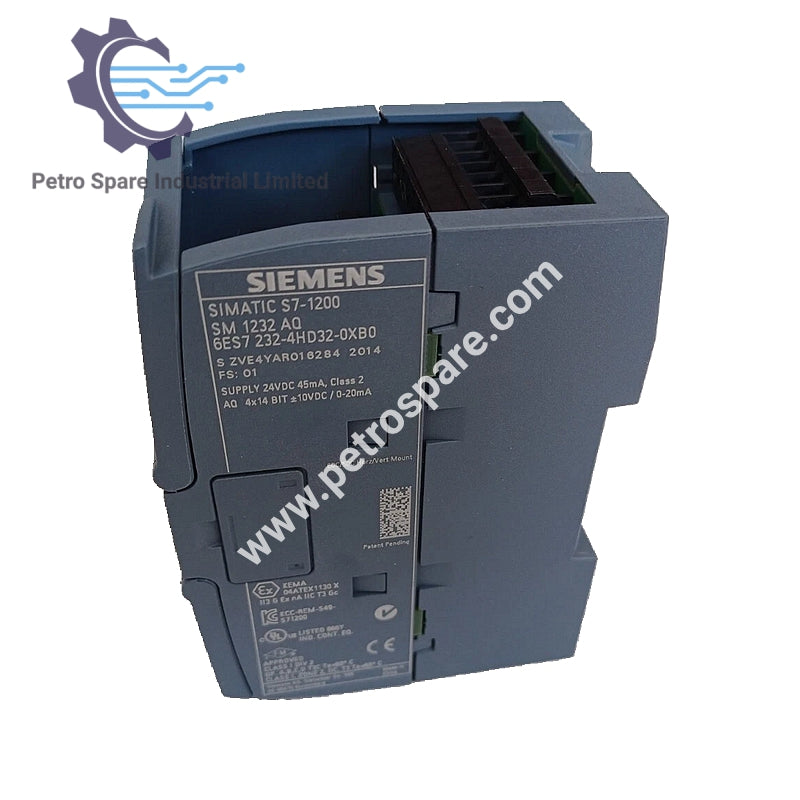

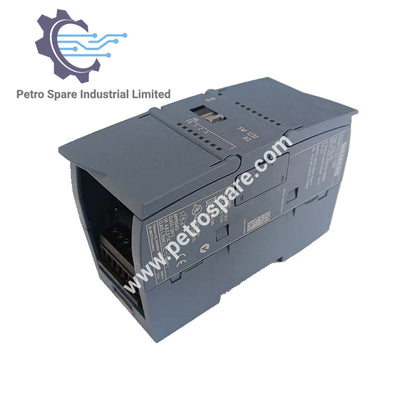

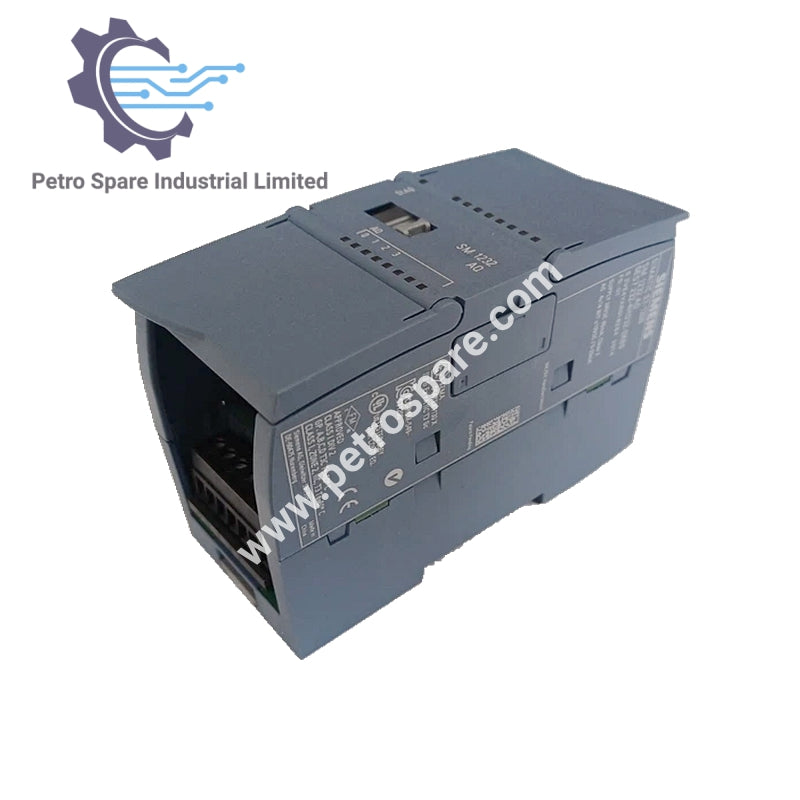

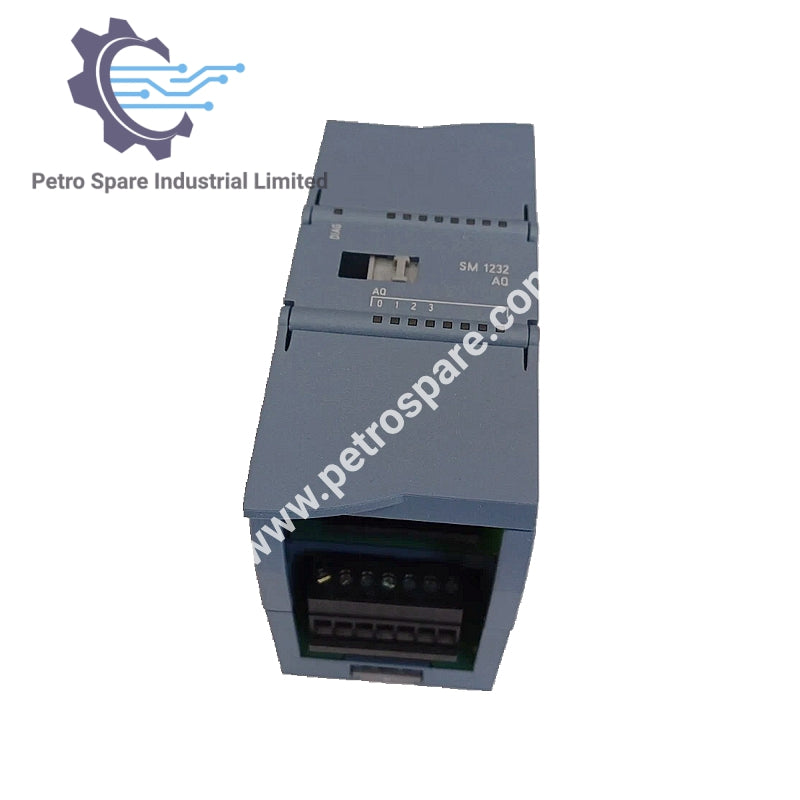

The Siemens 6ES7232-4HD32-0XB0 is a SIMATIC S7-1200 analog output module with 4 channels supporting current or voltage signals.

General Information

• Number of analog outputs: 4 (current or voltage)

• Front connector required: Yes

• Enclosure material: Plastic

Electrical Specifications

• Voltage output range: -10 V to +10 V

• Current output ranges: 0–20 mA

• Load impedance:

• Voltage outputs: ≥1,000 Ω

• Current outputs: ≤600 Ω

• Maximum cable length: 100 m (shielded, twisted pair)

Physical Dimensions

• Width: 45 mm

• Height: 100 mm

• Depth: 75 mm

Weight

• Approximate weight: 180 g

---
