TSXAEY1614

Product overview

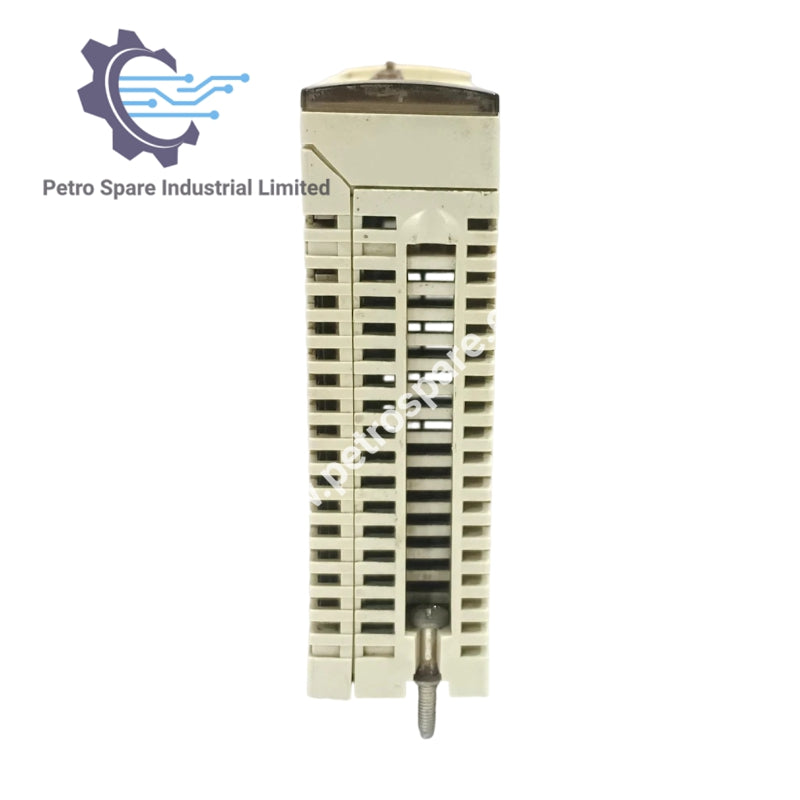

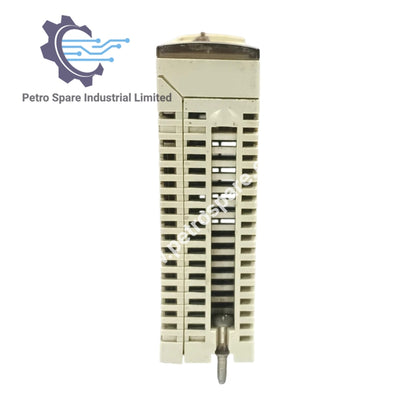

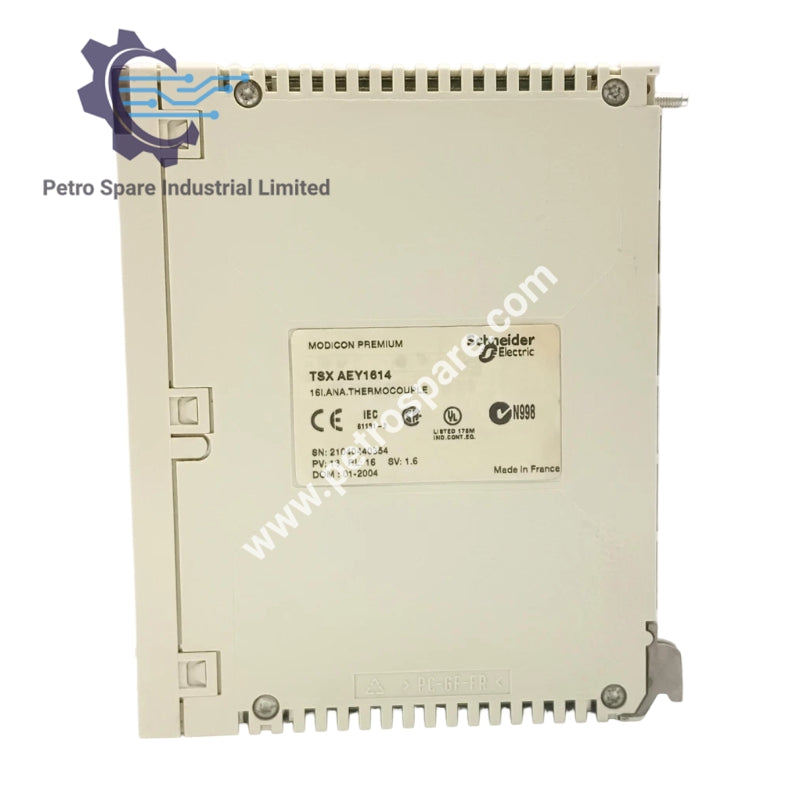

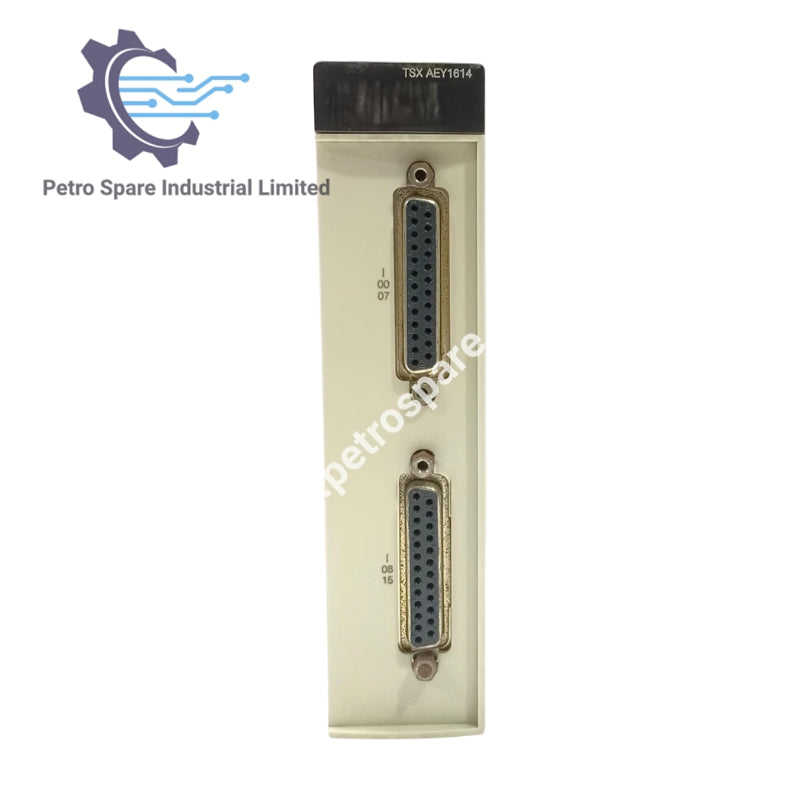

TSXAEY1614 is Analog input module Modicon Premium - 16 I thermocouple ± 63 mV.

Technical specifications

Input configuration
16 analog input channels designed for thermocouple signals with ±63 mV range.

Performance
Nominal read cycle time is 70 ms per channel.

Isolation characteristics
Electrical isolation between channels and bus: 1000 Vrms.
Electrical isolation between channels and ground: 1000 Vrms.

Common mode voltage
Between channels: 250 V AC or 280 V AC.
Between channels and earth: 250 V DC.

Electrical limits
Input overvoltage range: -30 to +30 V (state 1, 250 Ω), -15 to +15 V (state 0, 250 Ω).
Overcurrent: -30 to +30 mA (state 1, 250 kΩ).

Electrical connection
Uses two SUB-D 25 connectors.

Power consumption
Current consumption: 300 mA at 5 V DC.

Compliance
CE marked for conformity with applicable standards.

---
