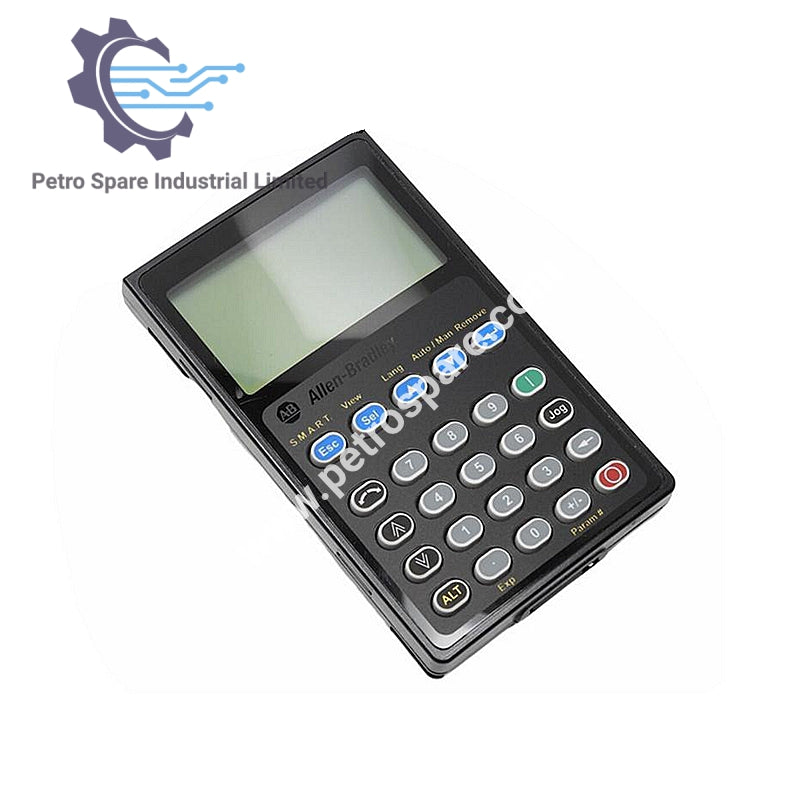

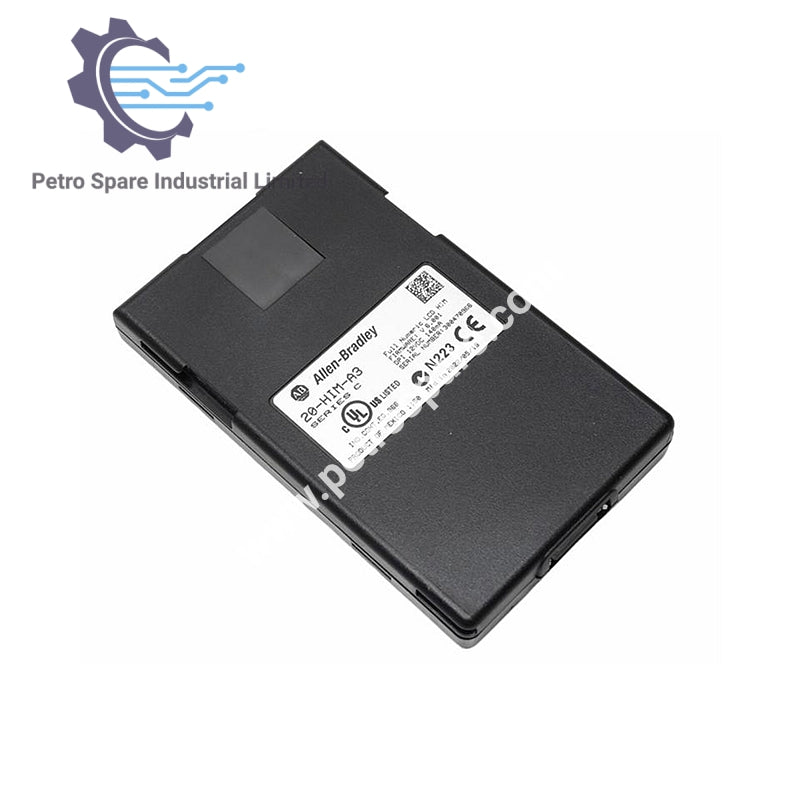

20-HIM-A3

Product Overview

• Model: 20-HIM-A3

• Type: Human Interface Module (HIM)

• Series: PowerFlex Accessories

• Display Type: High-performance LCD

• Keypad Type: Waterproof membrane keypad, full numeric input

• Number of Keys: 20 soft keys

• Functionality Options: CopyCat functionality, Jog Mode functionality

Electrical Specification

• Rated Voltage: 12 VDC (from host drive)

• Current Rating: 120 mA

Mechanical Specification

• Mounting Type: Handheld / drive mount

• Drive Mounting Options: Panel bezel kit

• Protection Rating: IP66

Environmental Specification

• Operating Temperature Range: 0–50 °C (32–122 °F)

• Storage Temperature Range: -40–70 °C (-4–140 °F)

• Maximum Operating Altitude: 1000 m (3300 ft) without derating

• Relative Humidity: 5–95%, non-condensing

---
