1788-MCHKR

Product Overview

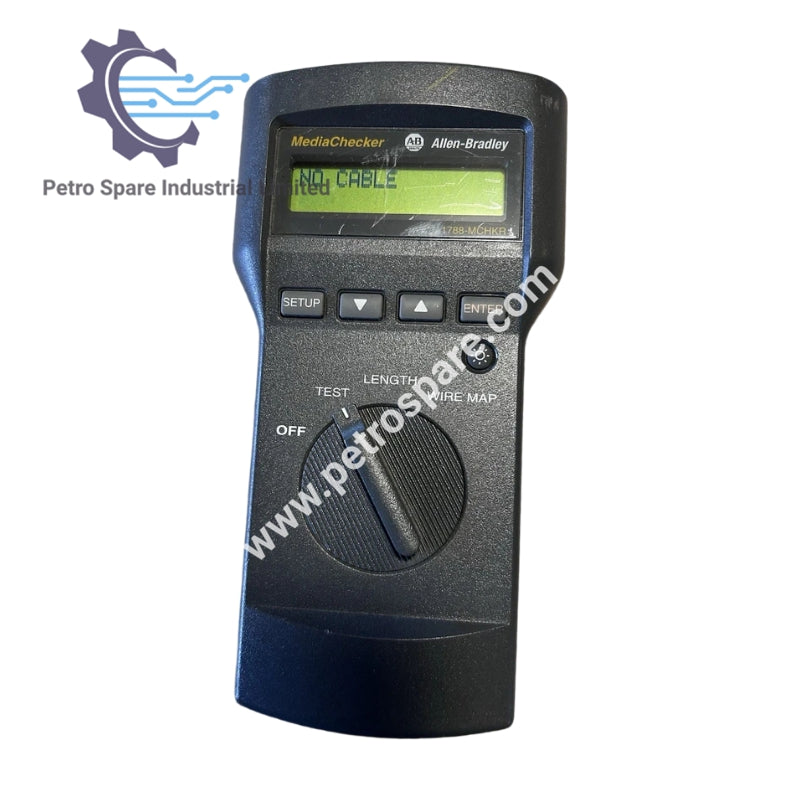

1788-MCHKR is a hand-held, portable device used to identify cable failures, check wiring, and measure cable lengths for industrial protocols.

Technical Specifications

• Manufacturer: Allen Bradley
• Weight: 5.25 lbs (2.38 kg)
• Test Supported: Cable Failures / Measure Length
• Compatible Cables: ControlNet / DeviceNet / DH+ / RIO / Ethernet
• Output Interface: 2 Line, 16 Character LCD
• Input Interface: Enter, Up, Down, and Setup
• Operating Modes: Off, Test, Length, Wire Map

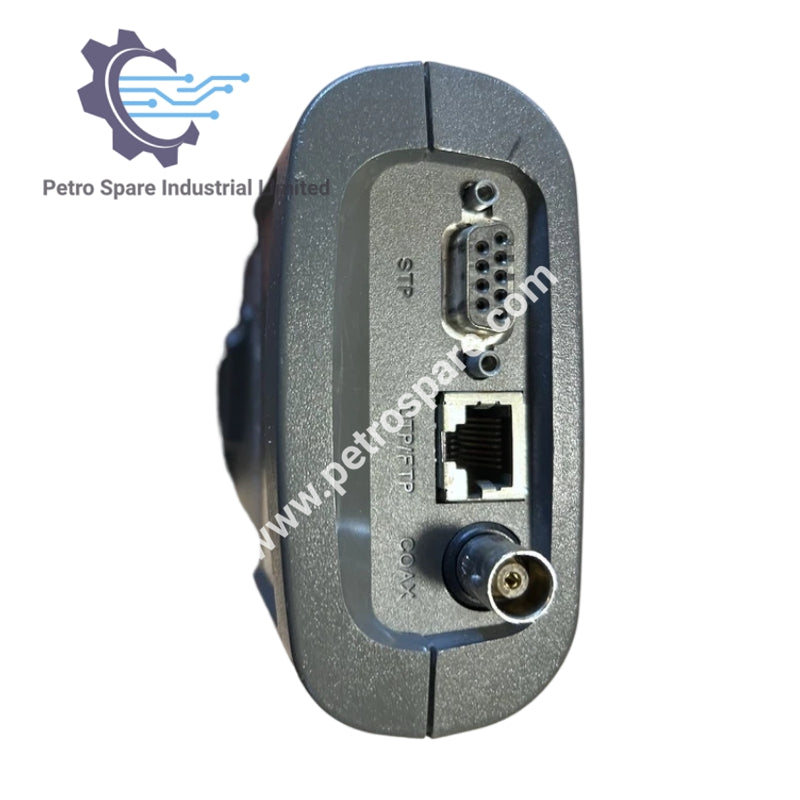

• Connections: One STP / One RJ45 / One Coax
• ControlNet Cables: RG6 / RG6F / DS3/4
• DeviceNet Cables: Thick, Thin, KwikLink
• DH+ / RIO Cables: 1770-CD / 9022 / 9463
• Ethernet Cables: UTP / FTP

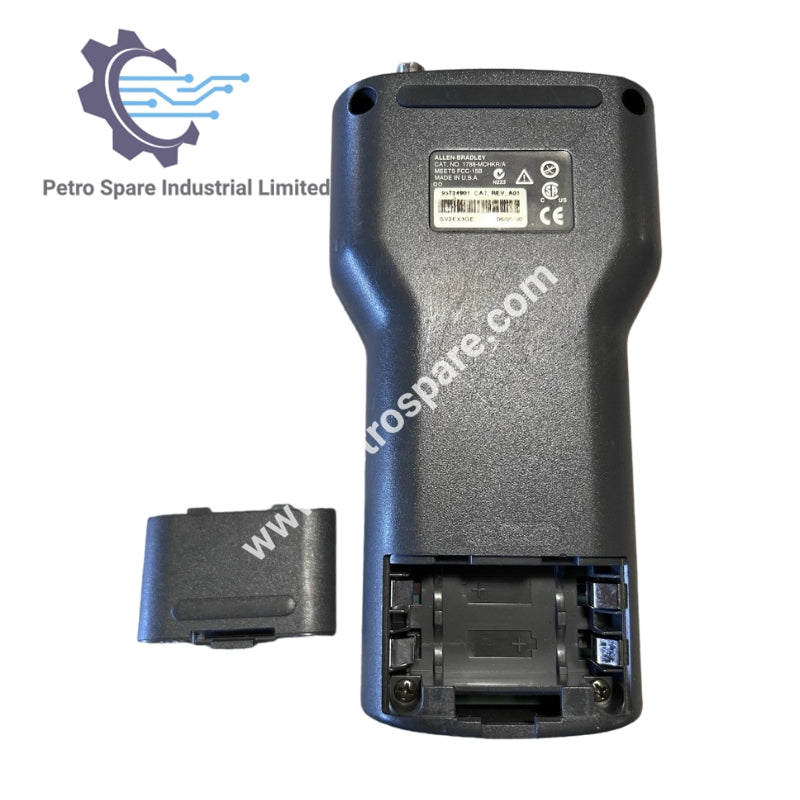

• Power Requirements: Two AA 1.5 V alkaline batteries
• Operating Temperature: 0 °C to +45 °C
• Non-Operating Temperature: -20 °C to +60 °C
