5069-L320ER

Product Overview

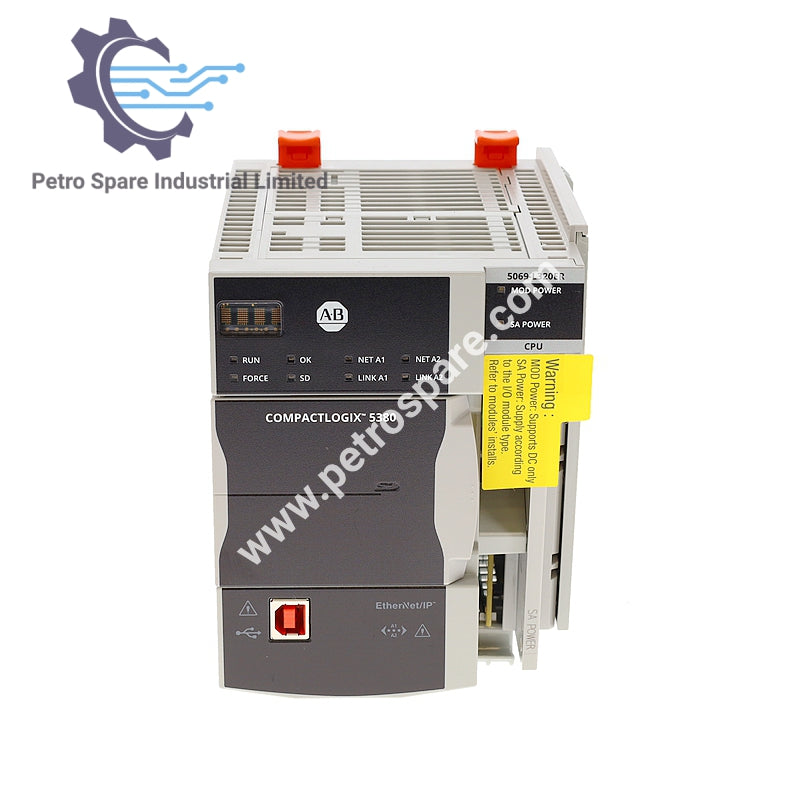

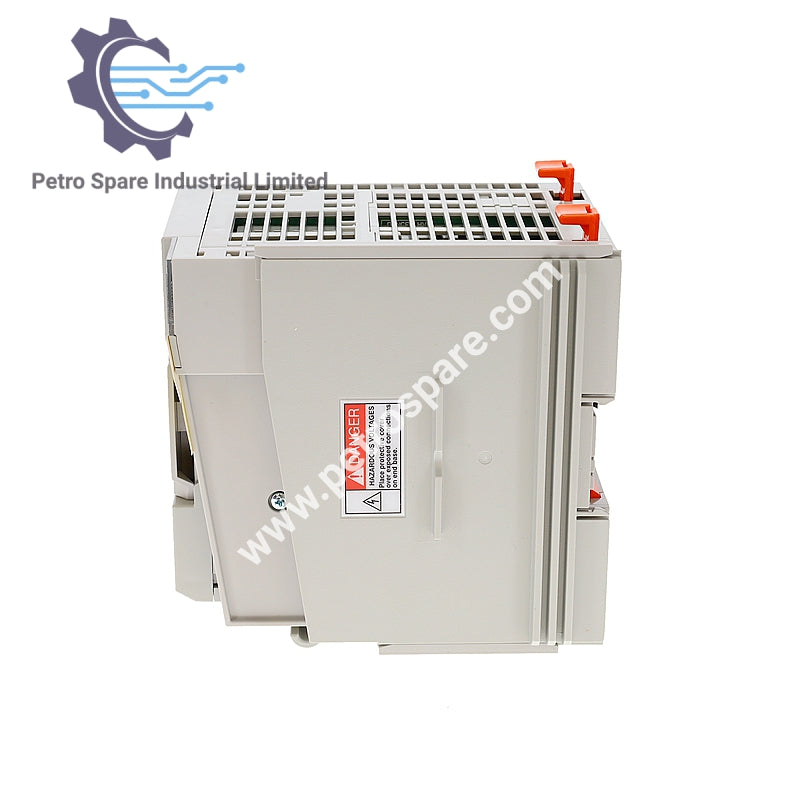

Allen-Bradley 5069-L320ER is a CompactLogix 5380 processor module with 2 MB user memory, supporting up to 16 local expansion modules and 40 EtherNet/IP devices.

Specifications

• Product Series: CompactLogix (Bulletin 5069)

• Component Type: PLC & I/O

• Controller: CompactLogix

• Power Supply: 18–32 V DC

• Safety Controller: No

• Memory, Controller: 2 MB

• Integrated Motion Control: No

• Communications Protocols: EtherNet/IP, EtherNet/OCPP

• Local Expansion Modules: 16 qty

• EtherNet/IP Nodes (Max): 40

• Software, Configuration: RSLogix5000 / Studio 5000 (Logix Designer)

Environmental Ratings

• Operating Temperature (Max): 60 °C

• Operating Temperature (Min): 0 °C

• Storage Temperature (Max): 85 °C

• Storage Temperature (Min): -40 °C

• Relative Humidity (Max): 95 %RH

Mechanical Ratings

• Shock Acceleration (Max): 30 g

• Shock Rating: IEC 60068-2-27

• Vibration Acceleration (Max): 5 m/s²

• Vibration Frequency (Operational Max): 500 Hz

• Vibration Rating: IEC 60068-2-6

---
